| Availability: |
Out of stock |

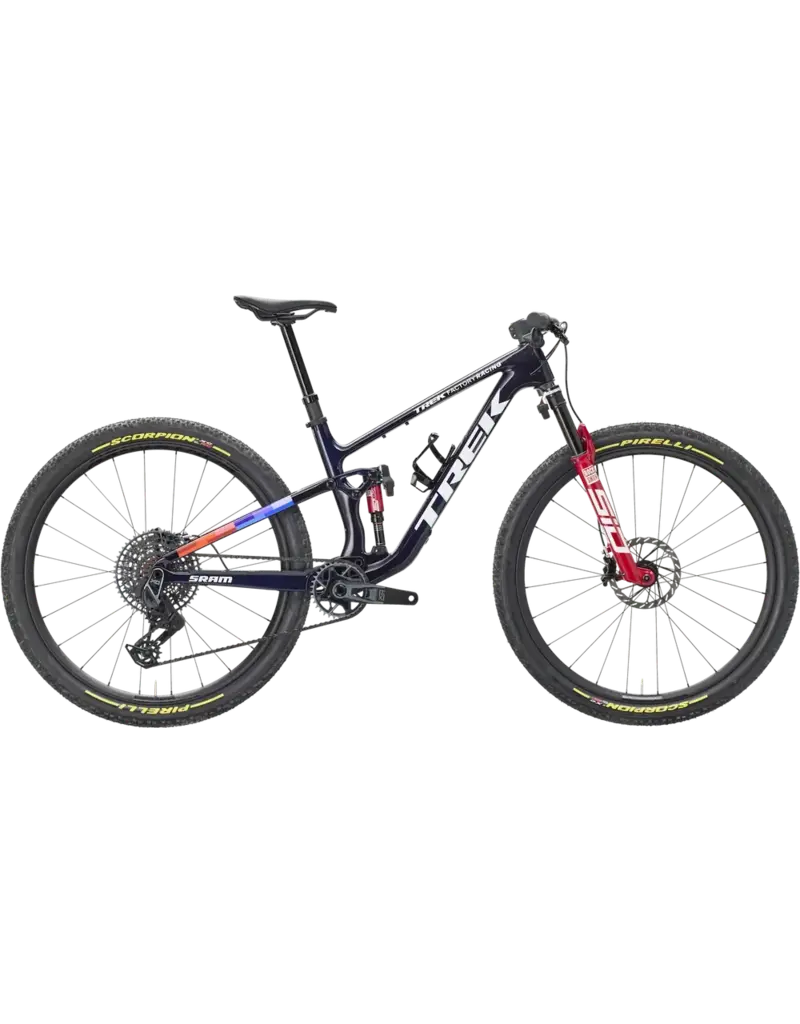

Top Fuel RSL takes the ride-anything capability of our favorite short-travel trail bike and ups the race-ready factor. Its OCLV Mountain Carbon frame partners with a 120mm RockShox SID Ultimate fork and 120mm SIDLuxe Ultimate shock — both with Flight Attendant. It comes ready to rally with Bontrager Kovee Elite 30 carbon wheels, a SRAM X0 AXS 12-speed wireless transmission, a Bontrager Line dropper post, and a carbon Bontrager RSL integrated handlebar/stem.
- Frame
-
OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel
- Fork
-
RockShox SID Ultimate, Flight Attendant Race Day damper, Stealth DebonAir spring, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
- Shock
-
RockShox SIDLuxe Ultimate Flight Attendant, 185x50mm
- Wheel front
-
- Wheel rear
-
- Skewer rear
-
- Tire
-
Pirelli Scorpion XC RC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.40''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
- Rear derailleur
-
SRAM X0 Eagle AXS, T-Type
- Crank
-
SRAM X0 Eagle, DUB, 34T, T-Type, 55mm chainline, 170mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73mm, BSA threaded
- Cassette
-
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
- Chain
-
SRAM X0 Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 34T, min 30T
- Saddle
-
- Seatpost
-
- *Handlebar/stem (integrated)
-
- Grips
-
- Brake
-
SRAM Motive Silver 4-piston hydraulic disc
- Brake rotor
-
- Rotor size
- Max brake rotor sizes - Frame: 200mm, min 180mm
- Weight
- M - 11.98 kg / 26.42 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
