| Availability: |
Out of stock |

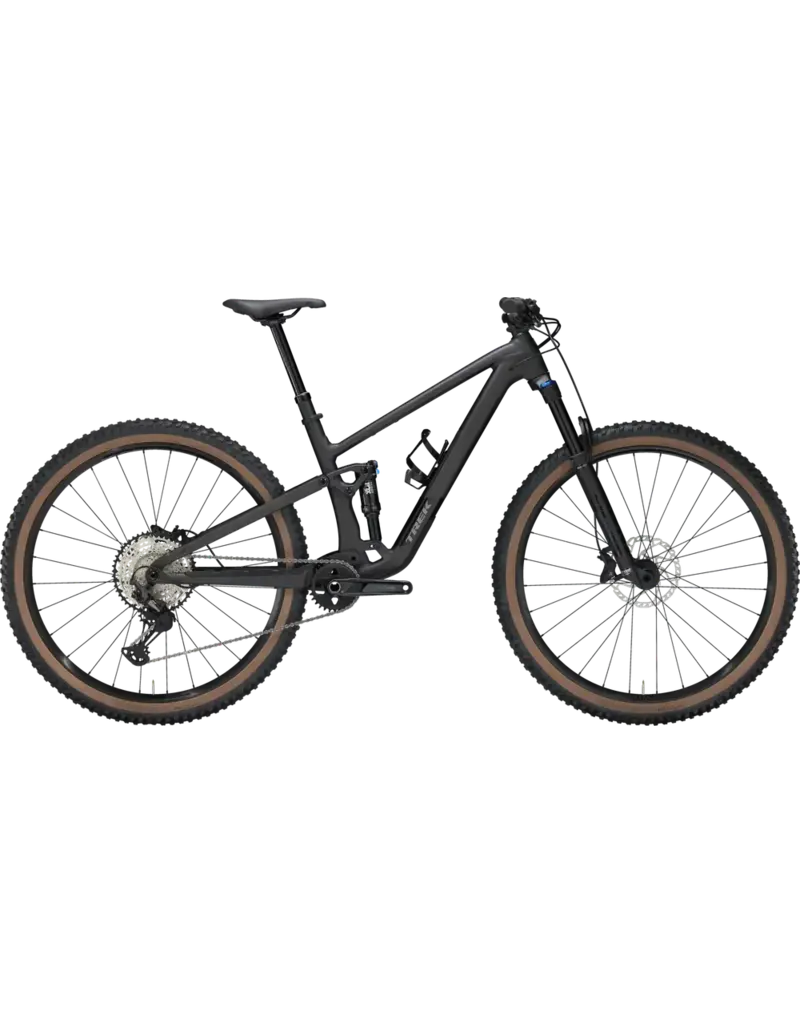

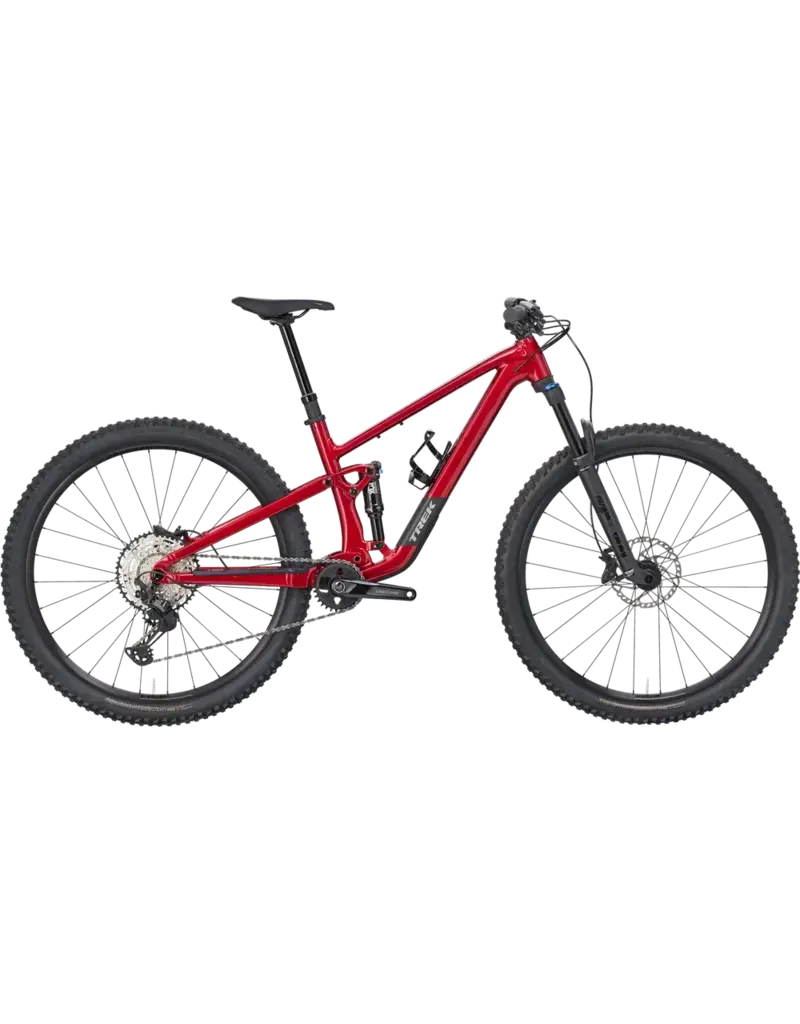

Top Fuel 8 Gen 4 is a nimble alloy trail bike that strikes a balance between quick climbing efficiency and descending confidence. It packs in a versatile 130mm front and 120mm rear travel for ripping over rocks and roots without sacrificing power on ascents. It's built from lightweight Alpha Platinum Aluminum that helps save your budget for bike trips, but packs in upgrades where they matter, like a 12-speed Shimano XT and SLX drivetrain, and a Fox Rhythm 34 fork.
- Frame
-
Alpha Platinum Aluminum, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel
- Fork
-
Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 130mm travel
- Shock
-
Fox Performance Float DPS, 2-position damper, 185mm x 50mm
- *Wheel front
-
- *Wheel rear
-
Size: S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 27.5''
Size: S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 27.5"
Size: M, ML, L, XL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29''
Size: M, ML, L, XL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29"
- Skewer rear
-
- *Tire
-
Size: S
Bontrager Gunnison Pro XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
Size: M, ML, L, XL
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
Shimano XT M8100, 12 speed
- Rear derailleur
-
- Crank
-
Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
- Bottom bracket
-
- Cassette
-
- Chain
-
Shimano SLX M7100, 12 speed
- Max chainring size
- 1x: 34T, min 30T
- Saddle
-
Bontrager Verse P3, chromoly rails
- *Seatpost
-
- Handlebar
-
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
- *Grips
-
- Stem
-
- *Brake
-
Size: S , M, ML, L, XL
Shimano M6120 4-piston hydraulic disc
Size: S , M, ML, L, XL
Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
- Brake rotor
-
Shimano RT66, 6-bolt, 180mm
- Rotor size
- Max brake rotor sizes - Frame: 200mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 14.58 kg / 32.15 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
