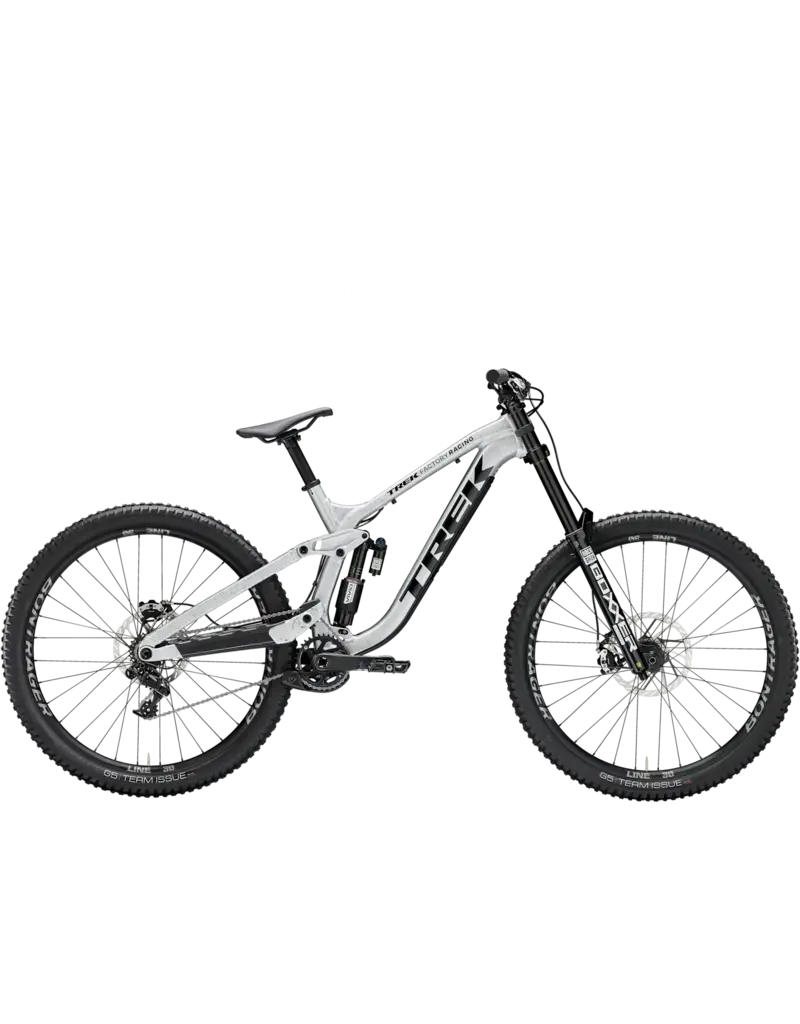

Trek Session 9 X01 2025

Home / Trek Session 9 X01 2025

Information

Availability:

Out of stock

Session 9 is a rowdy and ready downhill mountain bike with a robust alloy frame and high-pivot suspension design that keeps you nimble, planted, and blazing fast on even the most punishing runs. It’s built with our best DH suspension package, a high-end drivetrain, and powerful SRAM Maven Ultimate 4-piston brakes.

Frame

Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel

Fork

RockShox Boxxer Ultimate, DebonAir+ spring, Charger 3 damper, 52mm offset, BoostDH 110x20 Maxle Stealth, 200mm travel

Max compatible fork travel

Frame	Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel
Fork	RockShox Boxxer Ultimate, DebonAir+ spring, Charger 3 damper, 52mm offset, BoostDH 110x20 Maxle Stealth, 200mm travel
Shock	RockShox Vivid Ultimate, 250mm x 72.5mm
Max compatible fork travel	200mm (602mm axle-to-crown)

Wheels

Wheel front	Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20mm Boost thru axle, 29''
Wheel rear	Bontrager Line DH 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano 7 speed freehub, 157x12mm thru axle, 29''
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager G5 Team Issue, wire bead, 2-ply 60tpi, 29x2.50"
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.60", Fork: See manufacturer

Drivetrain

Shifter	SRAM X01 DH, 7 speed
Rear derailleur	SRAM X01 DH, medium cage
Crank	SRAM X01 DH, DUB 83, 34T alloy ring, 165 mm length
Bottom bracket	SRAM DUB, 83mm, BSA threaded
Cassette	SRAM PG-720, 11-25, 7 speed
Chain	SRAM PC-1110, 11 speed
Pedal	Wellgo MG-1, magnesium body, Cro-Mo axle, replaceable pins
Max chainring size	1x: 36T, min 32T

Components

Saddle	Verse Short Elite, hollow magnesium rails, 145mm width
Seatpost	Bontrager Rhythm Elite, 31.6 mm, 0 mm offset, 330 mm length
Handlebar	Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Grips	Bontrager XR Trail Elite, nylon lock-on
Stem	Bontrager Line Pro, 35 mm, Direct Mount, 50 mm length
Headset	FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom (includes geometry adjust angled cups)
Brake	SRAM Maven Ultimate 4-piston hydraulic disc
*Brake rotor	Size: R1, R2, R3 SRAM 6-bolt, 200mm
*Brake rotor	Size: R1, R2, R3 SRAM HS2, 6-bolt, 220mm
Rotor size	Max brake rotor sizes - Frame: 220mm, min 180mm, Fork: see fork manufacturer

Weight

Weight	M - 18.10 kg / 39.91 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
