| Availability: |
Out of stock |

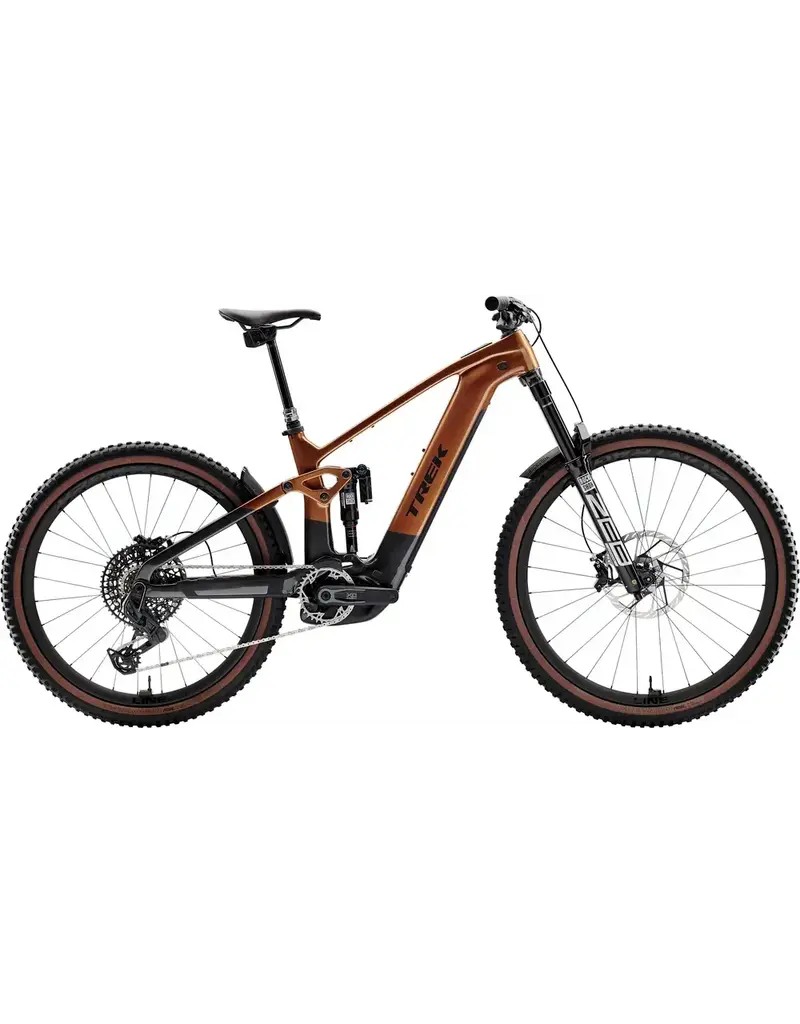

Rail+ 9.9 is our top carbon enduro e-MTB made for your most epic adventures. Its robust carbon frame packs 160mm of front and rear upgraded RockShox suspension and adjustable geometry you can tune to how and where you ride. It comes equipped with a Bosch CX Line motor that delivers serious torque for ripping up climbs and a huge 800Wh RIB 2.0 removable integrated battery. It's topped off with all the bells and whistles you want – like carbon wheels and a wireless SRAM X0 transmission.
- Frame
-
OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
- Fork
-
Rockshox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
- Shock
-
RockShox Super Deluxe Ultimate RC2T, 205x65mm
- *Wheel front
-
- Wheel rear
-
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5''
- Skewer rear
-
- *Tire
-
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 27.5x2.60", Fork: See manufacturer
- Battery
-
Bosch PowerTube 800Wh, smart system
- Charger
-
Bosch standard 4A, 230V, smart system
- Controller
-
Bosch System Controller Kiox400C, smart system
- Motor
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
- E-bike Classification
- Class 1
- Shifter
-
- Rear derailleur
-
SRAM X0 Eagle AXS, T-Type
- Crank
-
SRAM X0 Eagle, 160mm length
- Chain ring
-
- Cassette
-
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
- Chain
-
SRAM X0 Eagle, T-Type, 12 speed
- Pedal
-
- Max chainring size
- 1x: 36T
- Saddle
-
- *Seatpost
-
Size: S
RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length
Size: M, L, XL
RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
- Handlebar
-
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
- Grips
-
- Stem
-
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
- Brake
-
SRAM Maven Silver 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
SRAM HS2, 6-bolt, 220mm
Size: S, M, L, XL
SRAM HS2, 6-bolt, 200mm
- Rotor size
- Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer
- Weight
- M - 23.98 kg / 52.87 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
