| Availability: |
Out of stock |

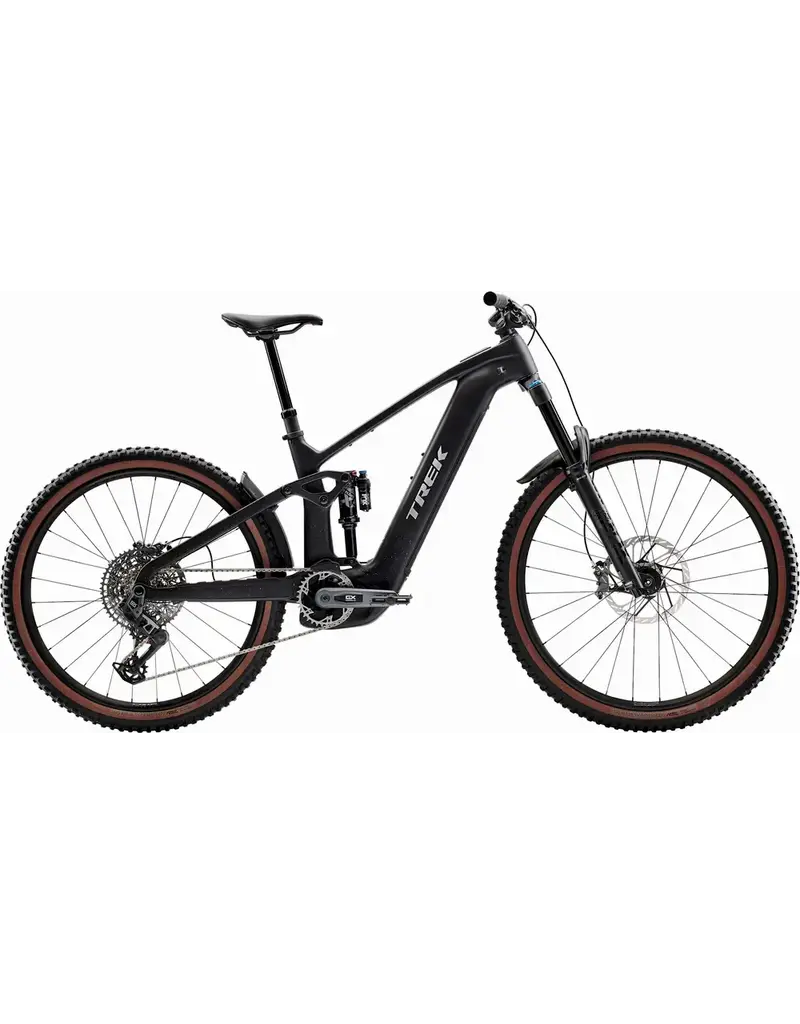

Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps. It starts out with a hard-hitting OCLV Mountain Carbon frame that partners with 160mm of front and rear travel from a Fox Performance Elite suspension package to eat up deep roots and chunky rock lines. A 12-speed wireless SRAM GX Eagle transmission keeps shifting smooth, even under serious load, while SRAM Maven Bronze 4-piston brakes provide the stopping power you need. It's finished off with a Bontrager Line dropper post and Bontrager Line Comp 30 tubeless-ready wheels for charging into anything.
- Frame
-
OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
- Fork
-
Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt-X axle, 160mm travel
- Shock
-
Fox Performance Elite Float X, 2-position damper, 205mm x 65mm
- *Wheel front
-
- Wheel rear
-
- Skewer rear
-
- *Tire
-
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 27.5x2.60", Fork: See manufacturer
- Battery
-
Bosch PowerTube 800Wh, smart system
- Charger
-
Bosch standard 4A, 110V, smart system
- Controller
-
Bosch System Controller Kiox400C, smart system
- Motor
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
- E-bike Classification
- Class 1
- Shifter
-
- Rear derailleur
-
SRAM GX Eagle AXS, T-Type
- Crank
-
- Chain ring
-
- Cassette
-
SRAM Eagle XS-1275, T-Type,10-52, 12 speed
- Chain
-
SRAM GX Eagle, T-Type, 12 speed
- Pedal
-
- Max chainring size
- 1x: 36T
- Saddle
-
- *Seatpost
-
- Handlebar
-
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
- Grips
-
- Stem
-
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
- Headset
-
- Brake
-
SRAM Maven Bronze 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
SRAM HS2, 6-bolt, 220mm
Size: S, M, L, XL
SRAM HS2, 6-bolt, 200mm
- Rotor size
- Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer
- Weight
- M - 24.18 kg / 53.31 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
