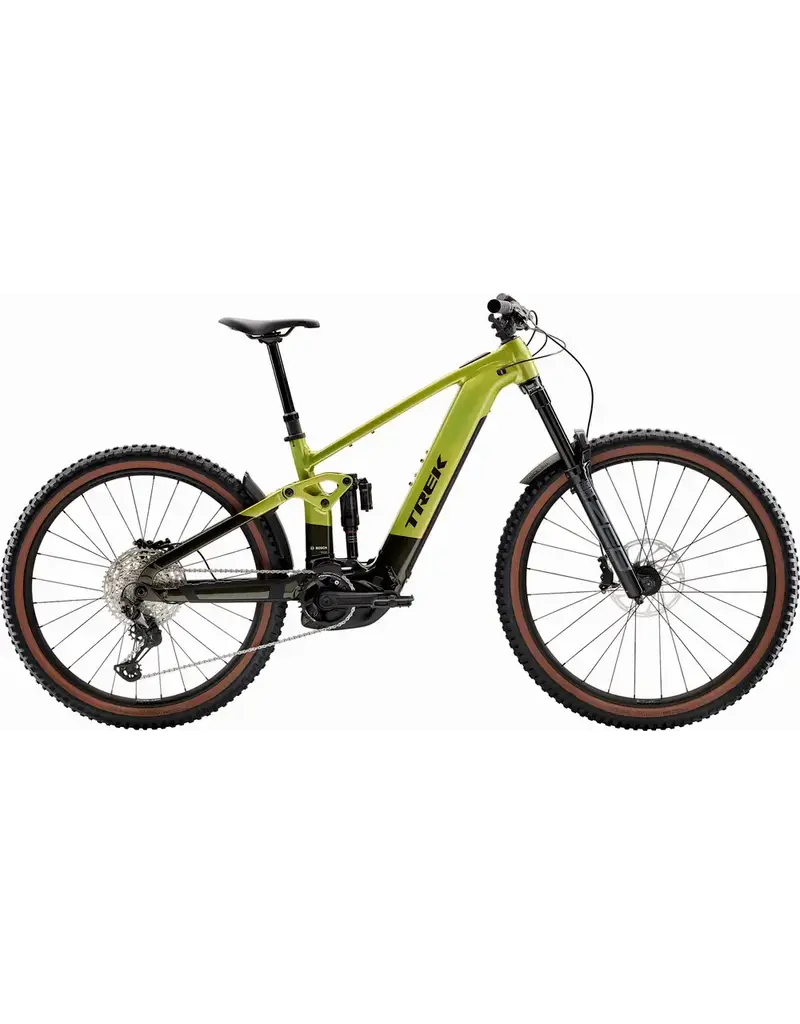

Rail+ 8 is an aluminum enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminum frame paired with a RockShox Super Deluxe+ shock and ZEB Select fork (160mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post, and tubeless-ready Bontrager Line TLR 30 wheels.
- Frame
-
Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
- Fork
-
RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel
- Shock
-
RockShox Super Deluxe Select RT, 205mm x 65mm
- *Wheel front
-
- Wheel rear
-
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 27.5''
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 27.5x2.60", Fork: See manufacturer
- Battery
-
Bosch PowerTube 800Wh, smart system
- Charger
-
Bosch standard 4A, 110V, smart system
- Controller
-
Bosch System Controller Kiox400C, smart system
- Motor
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
- E-bike Classification
- Class 1
- Shifter
-
Shimano SLX M7100, 12 speed
- Rear derailleur
-
- Crank arm
-
E*thirteen E*spec Plus, 160mm length
- Cassette
-
Shimano Deore M6100, 10-51, 12 speed
- Chain
-
Shimano SLX M7100, 12 speed
- Pedal
-
- Max chainring size
- 1x: 36T
- Saddle
-
Bontrager Verse P3, steel rails
- *Seatpost
-
- Handlebar
-
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
- Grips
-
- Stem
-
- Headset
-
- Brake
-
SRAM DB 8 4-piston hydraulic disc
- Brake rotor
-
SRAM CenterLine, 6-bolt, round edge, 200mm
- Rotor size
- Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer
- Weight
- M - 25.08 kg / 55.3 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
