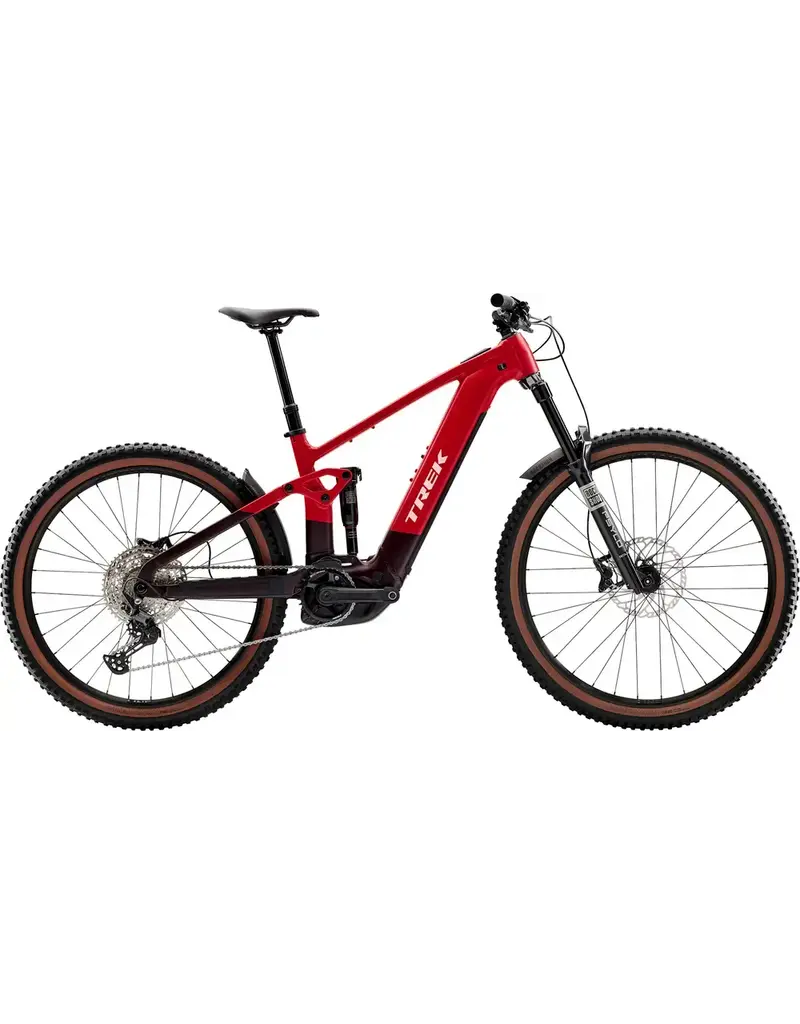

Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminum frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
- Frame
-
Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
- Fork
-
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel
- Shock
-
RockShox Deluxe Select+ RT, 205mm x 65mm
- Hub front
-
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
- Hub rear
-
Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
- Skewer rear
-
- Rim
-
- *Tire
-
Size: S, M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 27.5x2.60", Fork: See manufacturer
- Battery
-
Bosch PowerTube 800Wh, smart system
- Charger
-
Bosch standard 2A, 110V, smart system
- Controller
-
Bosch System Controller BRC3100, smart system
- Motor
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
- E-bike Classification
- Class 1
- Shifter
-
Shimano Deore M6100, 12 speed
- Rear derailleur
-
Shimano Deore M6100, long cage
- Crank arm
-
E*thirteen E*spec Plus, 160mm length
- Cassette
-
Shimano Deore M6100, 10-51, 12 speed
- Chain
-
Shimano Deore M6100, 12 speed
- Pedal
-
- Max chainring size
- 1x: 36T
- Saddle
-
Bontrager Verse P3, steel rails
- *Seatpost
-
Size: S
TranzX JD-YSI34, 100mm travel, internal routing, 34.9mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
- Handlebar
-
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
- Grips
-
- Stem
-
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
- Headset
-
- Brake
-
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
- Brake rotor
-
Shimano RT66, 6-bolt, 203mm
- Rotor size
- Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer
- Weight
- M - 25.28 kg / 55.74 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
