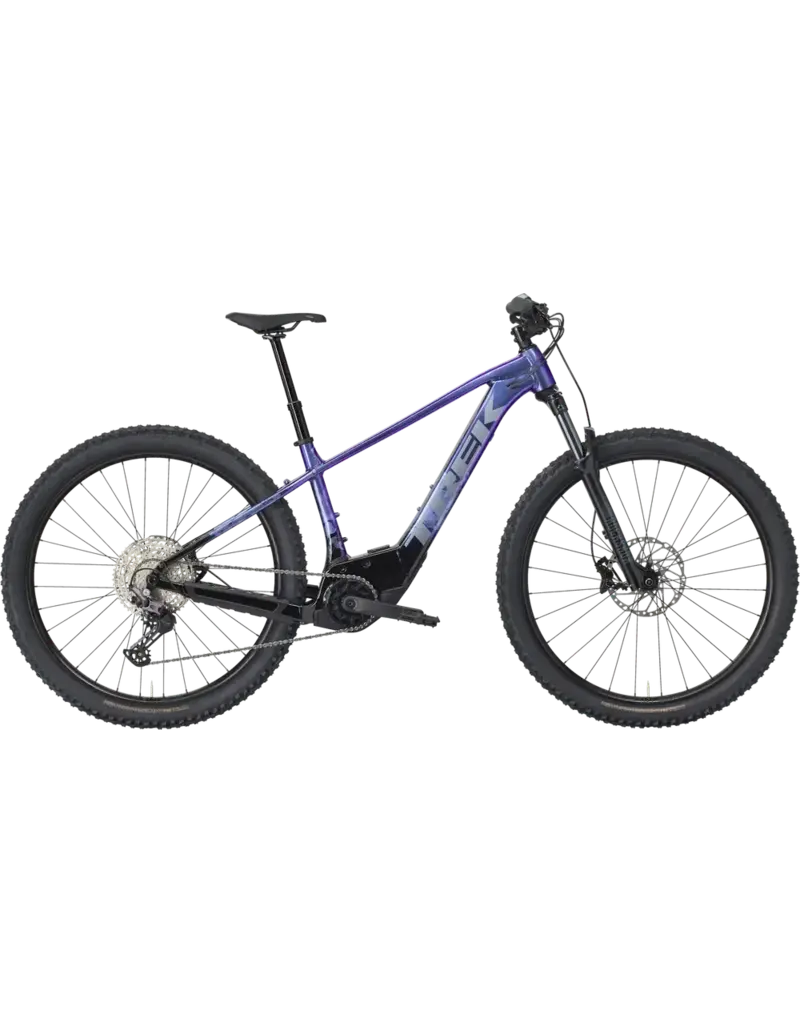

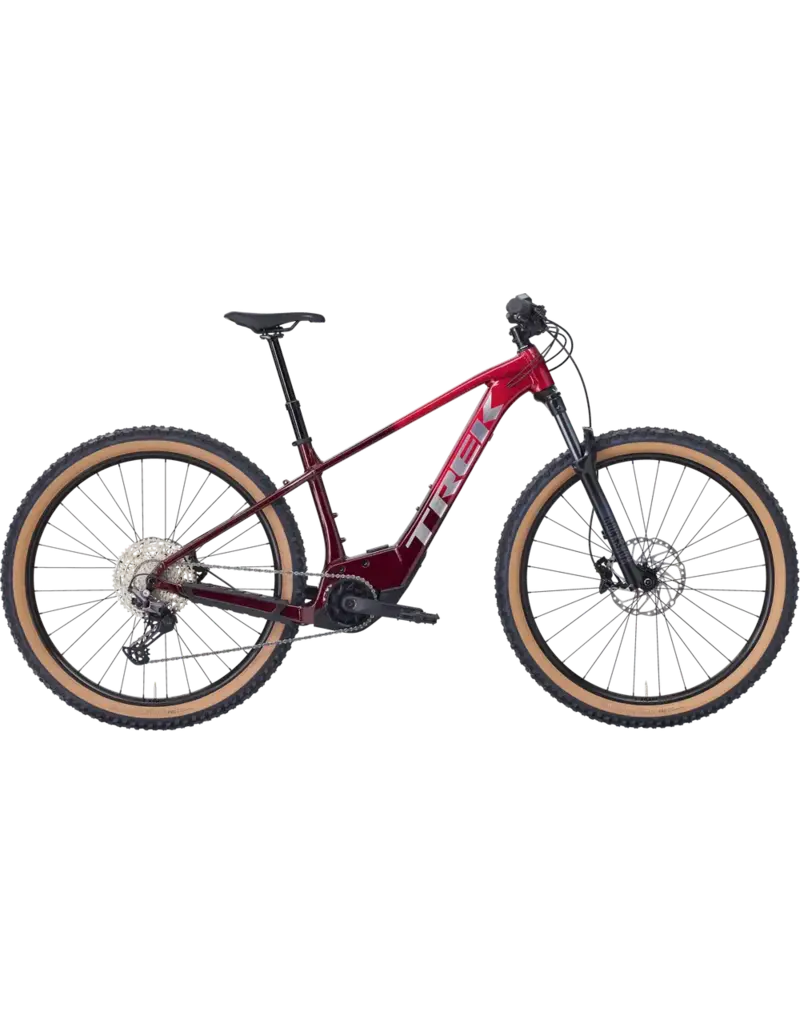

Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding farther, and doesn't break the bank, and a 120mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tires and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.
- *Frame
-
Size: XS
Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Size: S , M , L , XL
Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
- *Fork
-
Size: M , L , XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
- Hub front
-
Shimano TC500 alloy, centerlock, 110x15mm thru axle
- Hub rear
-
Shimano TC500 alloy, centerlock, 148x12mm thru axle
- Skewer rear
-
Bontrager Switch thru axle, removable lever
- *Rim
-
- *Tire
-
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 29x2.60" (XS: 27.6x2.60"), Fork: See manufacturer
- Battery
-
- Charger
-
Bosch standard 2A, 110V, smart system
- Computer
-
- E-bike Classification
- Class 1
- Shifter
-
Shimano Deore M6100, 12 speed
- Rear derailleur
-
Shimano Deore M6100, long cage
- Crank
-
- Chain ring
-
- Cassette
-
Shimano Deore M6100, 10-51, 12 speed
- Chain
-
Shimano Deore M6100, 12 speed
- Pedal
-
- Max chainring size
- 1x: 36T, min 32T
- Saddle
-
Bontrager Verse P3, chromoly rails
- *Seatpost
-
Size: XS , S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M , L
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
Size: XL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
- *Handlebar
-
Size: XS , S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
- Grips
-
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
- Headset
-
- Brake
-
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
- Brake rotor
-
Shimano RT64, CentreLock, 203 mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 21.89 kg / 48.26 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
