| Availability: |
Out of stock |

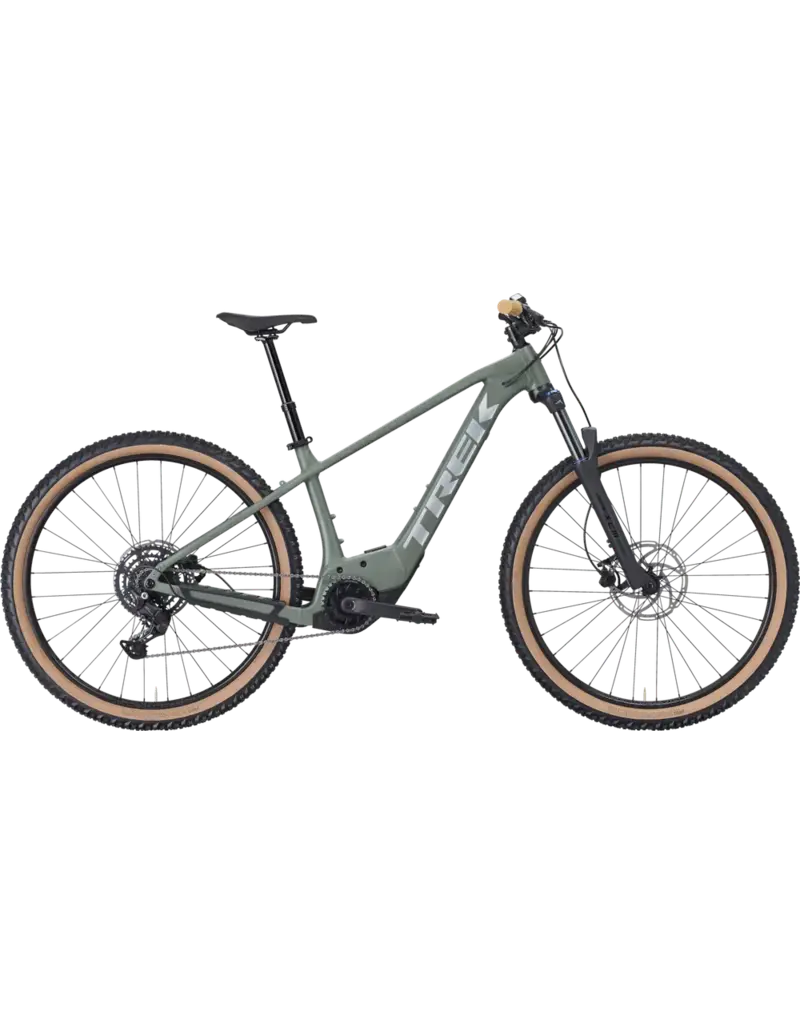

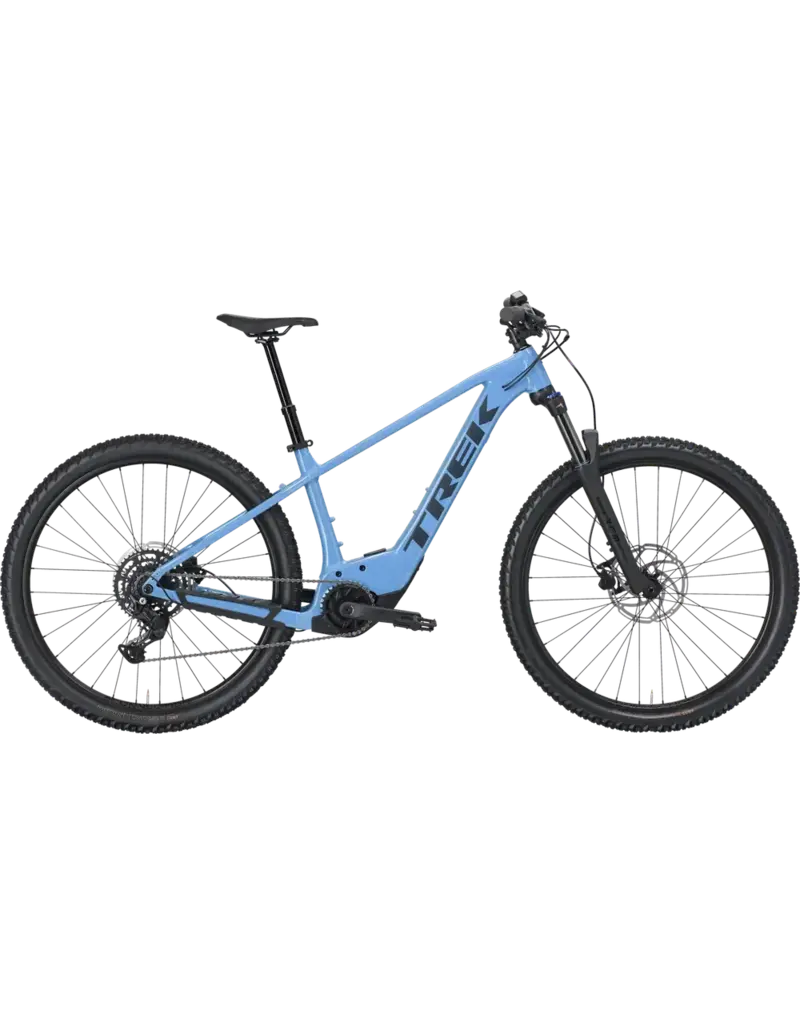

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.
- *Frame
-
Size: XS
Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Size: S , M , L , XL
Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
- *Fork
-
Size: XS
SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel
Size: S , M , L , XL
SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
- Hub front
-
Shimano TC500 alloy, centerlock, 110x15mm thru axle
- Hub rear
-
Shimano TC500 alloy, centerlock, 148x12mm thru axle
- Skewer rear
-
Bontrager Switch thru axle, removable lever
- Rim
-
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
- *Tire
-
Size: XS , S
Bontrager Montrose comp, Tubeless Ready, wire bead, 30 tpi, 27.5x2.40"
Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
Size: M , L , XL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''
Size: M , L , XL
Bontrager Montrose comp, Tubeless Ready, wire bead, 30 tpi, 29x2.40"
- Max tire size
- Frame: 29x2.60" (XS: 27.6x2.60"), Fork: See manufacturer
- Battery
-
- Charger
-
Bosch standard 2A, 110V, smart system
- Computer
-
- E-bike Classification
- Class 1
- Shifter
-
- Rear derailleur
-
- Crank
-
- Chain ring
-
- Cassette
-
Shimano LINKGLIDE LG300, 11-46, 9 speed
- Chain
-
- Pedal
-
- Max chainring size
- 1x: 36T, min 32T
- Saddle
-
Bontrager Verse P3, steel rails
- *Seatpost
-
Size: XS , S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M , L
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
Size: XL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
- *Handlebar
-
Size: XS , S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
- Grips
-
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
- Headset
-
- Brake rotor
-
Tektro, centerlock, 203mm
- Brake Set
-
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 22.90 kg / 50.49 lbs (with tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
