| Availability: | Out of stock |

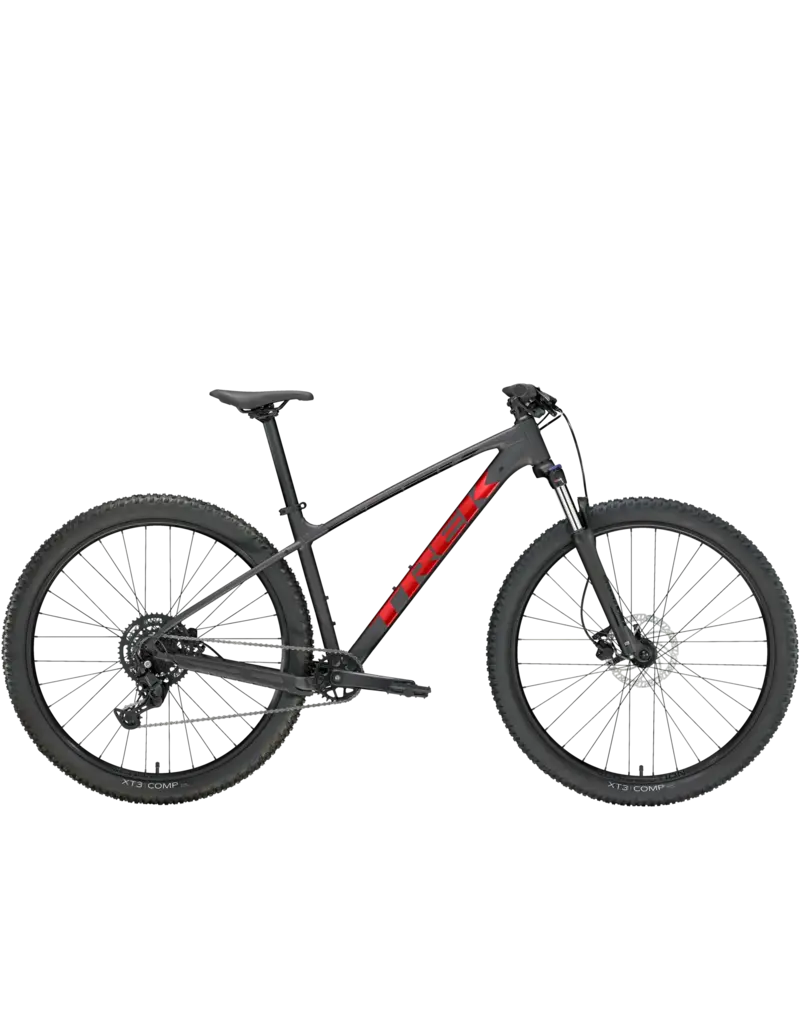

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
| *Frame | Size: XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
|
| *Fork | Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel |
| Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
| Size: M , ML , L , XL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel |
|
| Max compatible fork travel | 120mm, XXS: 80mm |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 173x5mm QR |
| *Rim | Size: XS , S Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black |
| Size: M , ML , L , XL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
| *Tire | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40'' |
| Size: M , ML , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'' |
|
| Max tire size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
| Shifter | Shimano U4000, 9 speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| *Crank | Size: XS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length |
| Size: S , M , ML , L , XL Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length |
|
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x: 34T, 2x: 36/22 |
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|---|---|
| Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
|
| Size: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length |
| Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
| Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
| Headset | Semi-integrated, 1-1/8" |
| Brake rotor | Tektro, 6-bolt, 160mm |
| *Brake Set | Size: XS , S Tektro HD-M276 hydraulic disc, short reach |
| Size: M , ML , L , XL Tektro HD-M275 hydraulic disc |
|
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M - 15.10 kg / 33.29 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
