| Availability: | Out of stock |

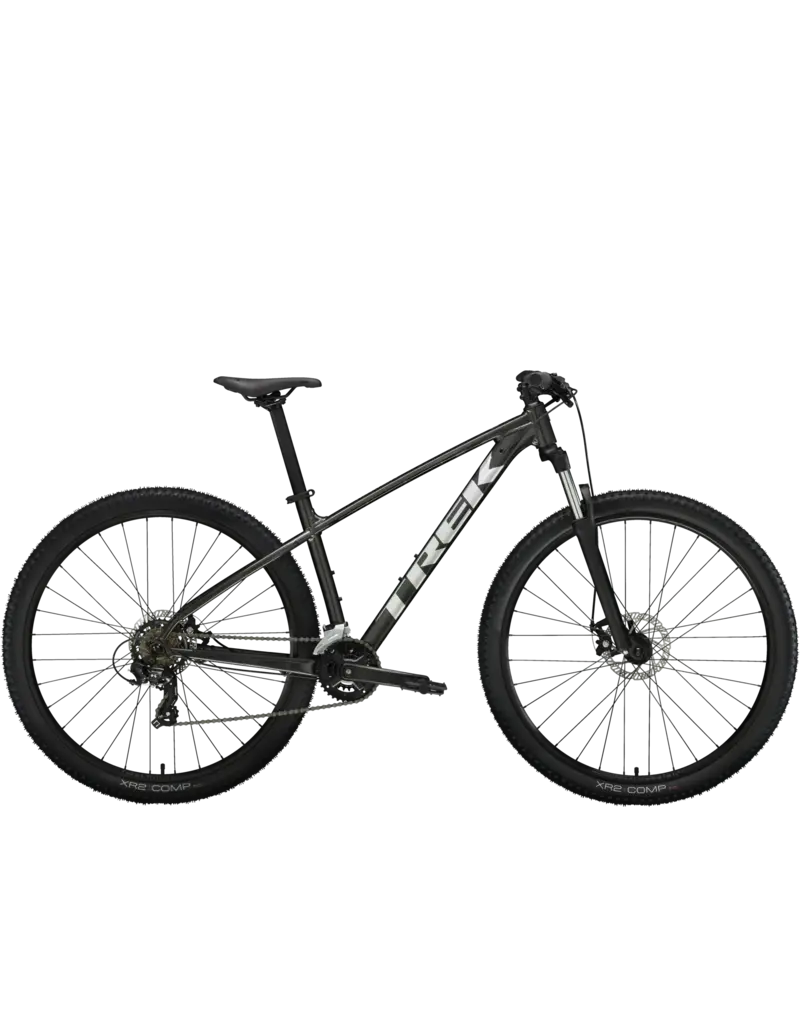

Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It's ideal for riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting, and mounts for a rack and fenders make this a great bike for trail riders and campus commuters alike.
| Frame | Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
|---|---|
| *Fork | Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
| Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
|
| Size: M , ML , L , XL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
|
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
| Skewer rear | 152x5mm QR |
|---|---|
| Max tire size | Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer |
| *Shifter | Size: XS , S , M , ML , L , XL Shimano EF500, 2 speed |
|---|---|
| Size: XS , S , M , ML , L , XL Shimano Altus EF500, 7 speed |
|
| Front derailleur | Shimano Altus M315, 34.9mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Tourney TY300 |
| *Crank | Size: XS , S , M ProWheel TM-CY10, 36/22, 170mm length |
| Size: ML , L , XL ProWheel TM-CY10, 36/22, 175mm length |
|
| Bottom bracket | VP BC73, 73mm, threaded cartridge |
| Cassette | Shimano TZ500, 14-34, 7 speed |
| Chain | KMC Z7, 7 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x/2x: 34T, 3x: 42T |
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
| Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| *Handlebar | Size: XS , S Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| *Stem | Size: XS , S Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Size: M Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
| Size: ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
| Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Headset | Semi-integrated, 1-1/8" |
| *Brake | Size: XS , S , M , ML , L , XL Tektro MD-M280 mechanical disc |
| Size: XS , S , M , ML , L , XL Tektro MD-M281 mechanical disc |
|
| Brake rotor | Tektro, 6-bolt, 160mm |
| Weight | M - 14.60 kg / 32.19 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
