| Availability: |
Out of stock |

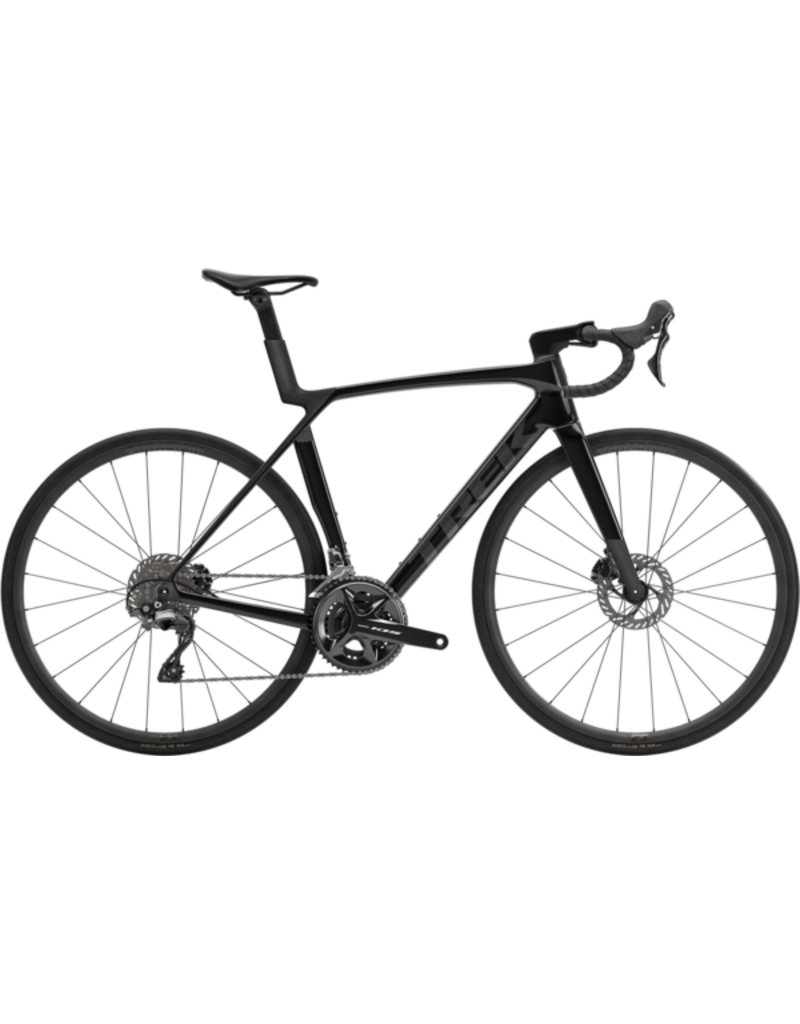

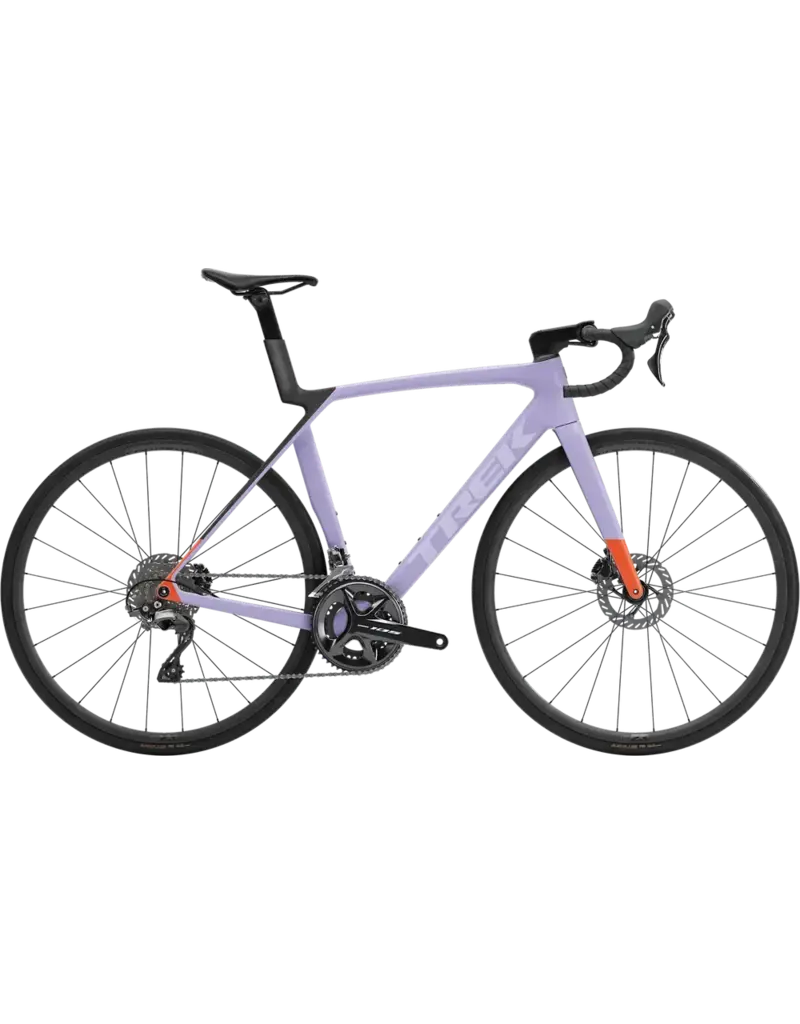

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. A Shimano 105 groupset, alloy handlebars, and alloy wheels keep the price down while still delivering clean mechanical shifting you can trust.
- Frame
-
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
- Fork
-
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
- Weight
- ML - 8.64 kg / 19.05 lbs (with tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Shifter
-
Shimano 105 R7120, 12 speed
- Front derailleur
-
Shimano 105 R7100, braze-on, down swing
- Rear derailleur
-
Shimano 105 R7100, 36T max cog
- *Crank
-
- Bottom bracket
-
- Cassette
-
Shimano 105 7101, 11-34, 12 speed
- Chain
-
Shimano SLX M7100, 12 speed
- Max chainring size
- 1x: 54T, 2x: 56/43
- Hub front
-
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
- Skewer front
-
- Hub rear
-
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
- Skewer rear
-
- Rim
-
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
- Tire
-
Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- 32mm (as measured, see manual for details)
- Saddle
-
- Seatpost
-
- *Handlebar
-
- Handlebar tape
-
- *Stem
-
- Brake
-
Shimano 105 hydraulic disc, flat mount
- Brake rotor
-
Shimano CL700, centerlock, 160mm
- Rotor size
- Max brake rotor sizes: 180mm front, 160mm rear
