| Availability: | Out of stock |

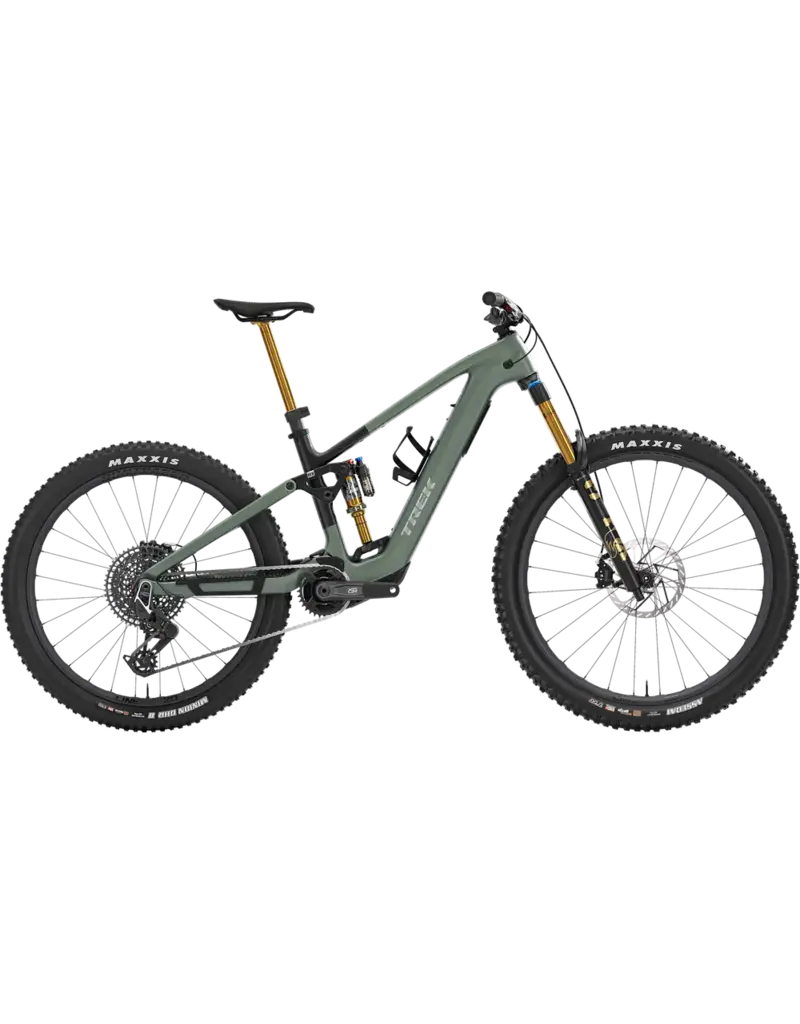

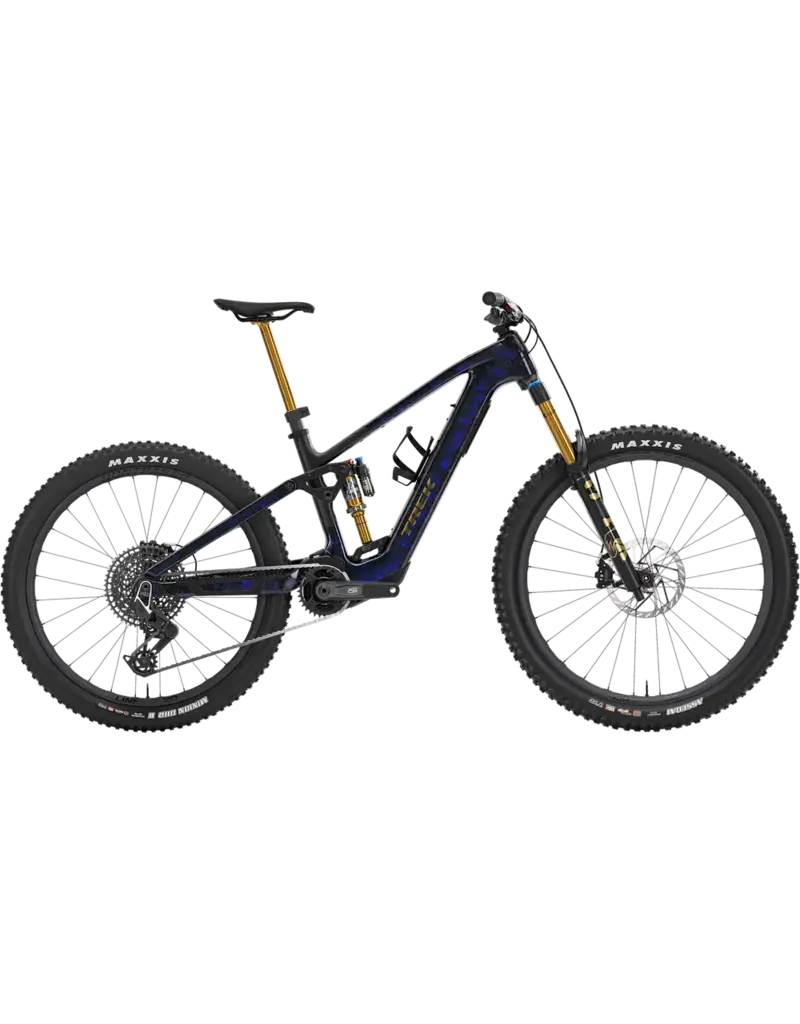

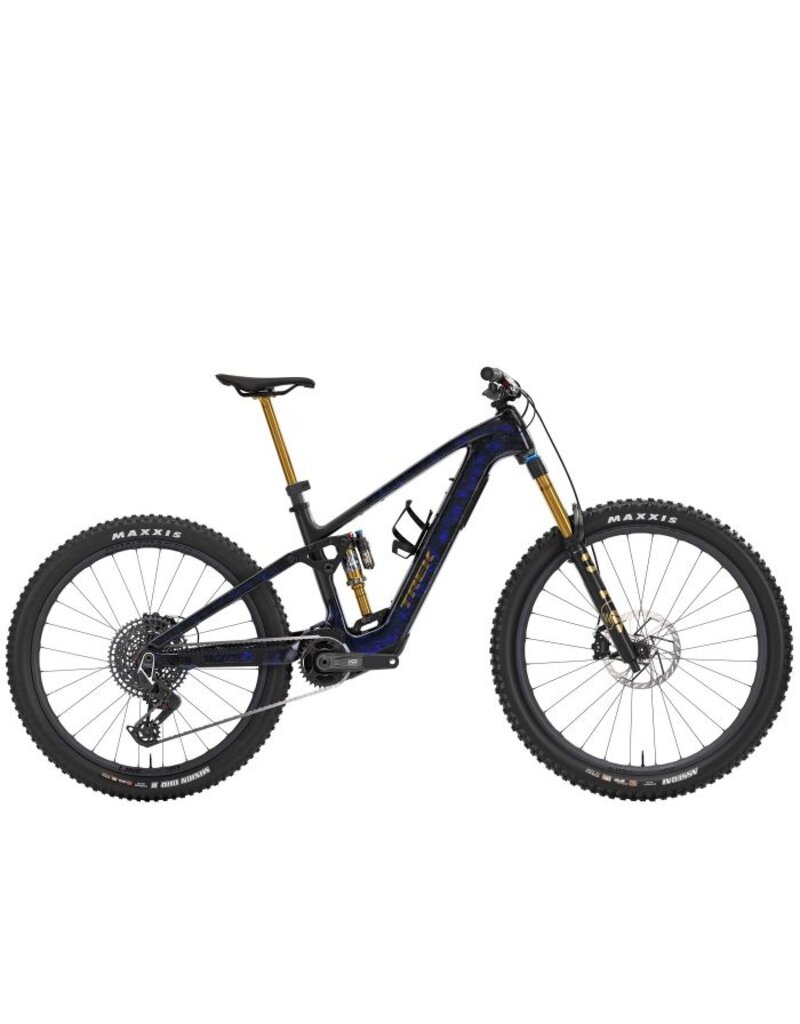

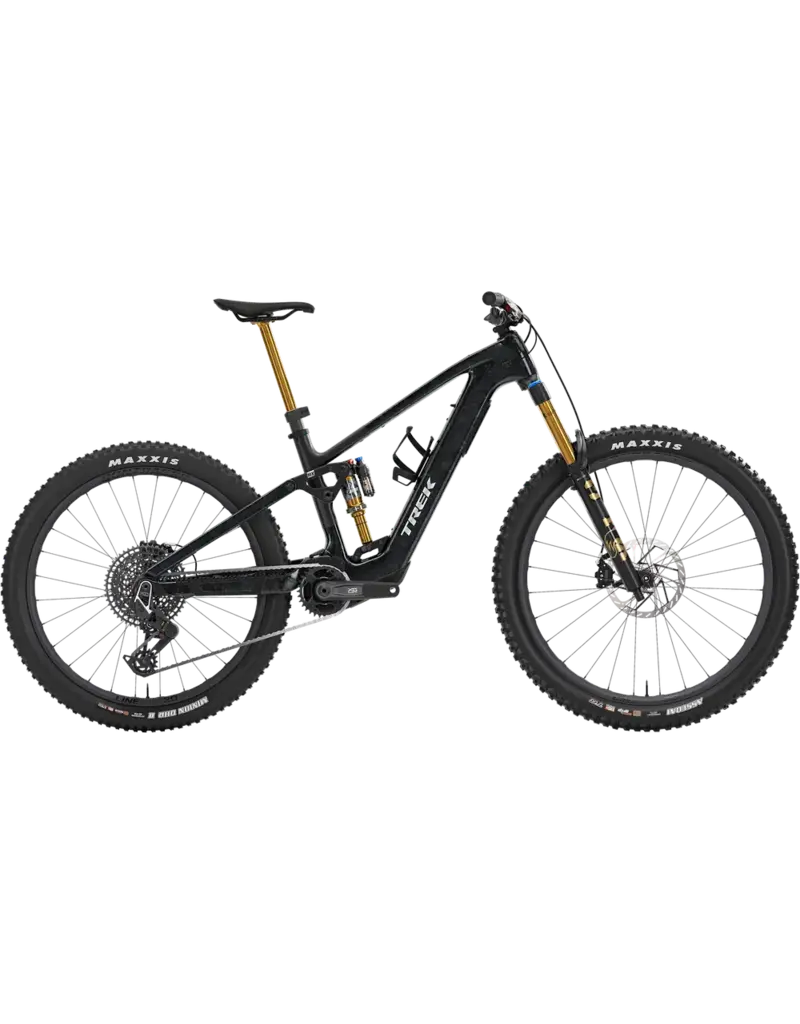

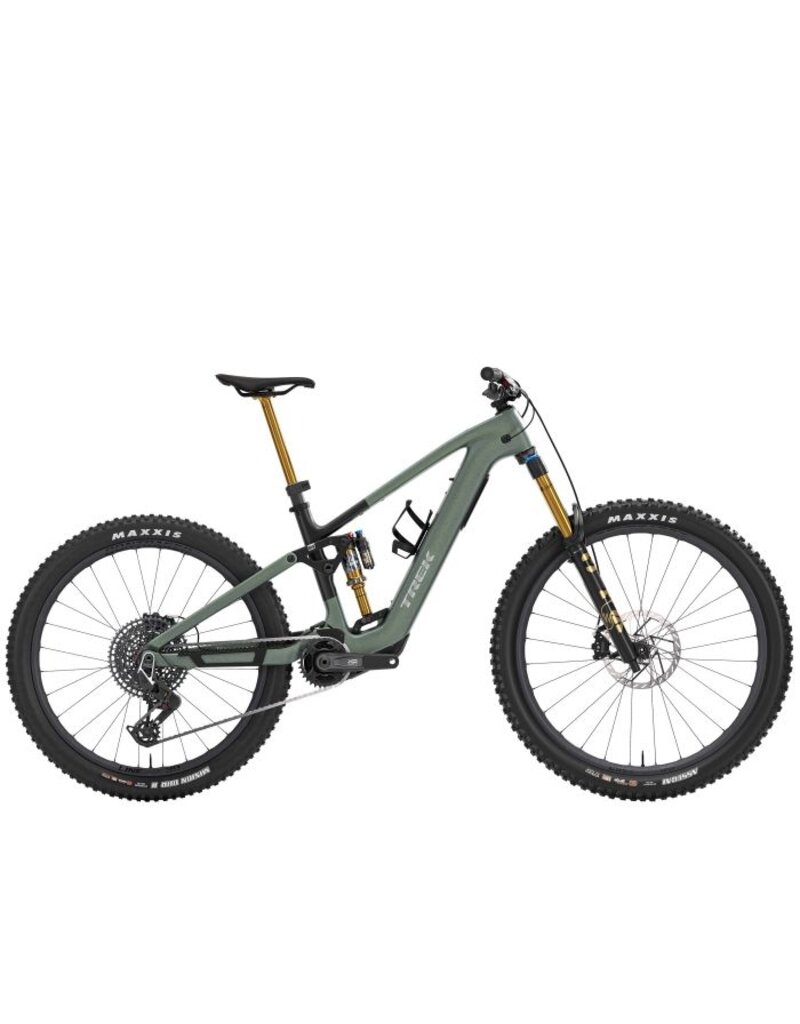

Fuel+ MX 9.9 X0 AXS is our top-tier chaos-loving e-MTB for chasing the wild beyond the beaten path. It starts off with an OCLV Mountain Carbon frame with TQ's HPR60 motor, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting rowdy on the trail. You get all the best components, including SRAM's wireless X0 AXS transmission, SRAM Maven Silver 4-piston brakes, a Fox Transfer NEO dropper post, and carbon Bontrager Line Pro 30 wheels.
*Please note - spec applies to all sizes unless listed separately
| *Frame | Size: S, XL, L, M, XXL
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
|
|---|---|
| *Fork | Size: S, XL, L, M, XXL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
|
| *Shock | Size: S, XL, L, M, XXL
Fox Factory Float X, 205mm x 60mm
|
| *Wheel front | Size: S, XL, L, M, XXL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
|
|---|---|
| *Wheel rear | Size: S, XL, L, M, XXL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
|
| *Skewer rear | Size: S, XL, L, M, XXLBontrager Switch thru axle, removable lever |
| *Tire | Size: S, XL, L, M, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
| Size: S, XL, L, M, XXL
Maxxis Minion DHR II, tubeless ready, 3C, Double Down, MAXXGRIP, 27.5x2.5"
|
|
| *Tire part | Size: S, XL, L, M, XXL
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tire size | Frame: 29x2.50", Fork: See manufacturer |
| *Battery | Size: S, XL, L, M, XXLTQ 580Wh |
|---|---|
| *Charger | Size: S, XL, L, M, XXL
TQ 4A charger
|
| *Controller | Size: S, XL, L, M, XXL
TQ color LED display with Bluetooth & ANT+ connectivity
|
| *Motor | Size: S, XL, L, M, XXL
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
|
| *Shifter | Size: S, XL, L, M, XXL
SRAM AXS pod
|
|---|---|
| *Rear derailleur | Size: S, XL, L, M, XXL
SRAM X0 Eagle AXS, T-Type
|
| *Crank | Size: S, XL, L, M, XXL
SRAM X0 Eagle, 160mm length
|
| *Chain ring | Size: S, XL, L, M, XXL
SRAM T-Type, 32T, alloy
|
| *Cassette | Size: S, XL, L, M, XXL
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
|
| *Chain | Size: S, XL, L, M, XXL
SRAM X0 Eagle, T-Type, 12 speed
|
| Max chainring size | 1x: 34T, min 30T |
| *Saddle | Size: S, XL, L, M, XXLVerse Short Pro, carbon rails, 145mm width |
|---|---|
| *Handlebar | Size: S, XL, L, M, XXL
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
|
| *Grips | Size: S, XL, L, M, XXLTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, M, XXL
Race Face Turbine R, 35mm, 0 degree, 40mm length
|
| *Brake | Size: S, XL, L, M, XXL
SRAM Maven Silver 4-piston hydraulic disc
|
| *Brake rotor | Size: S, XL, L, M, XXL
SRAM HS2, 6-bolt, 200mm
|
| Rotor size | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| Weight | M - 19.02 kg / 41.94 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
