| Availability: | Out of stock |

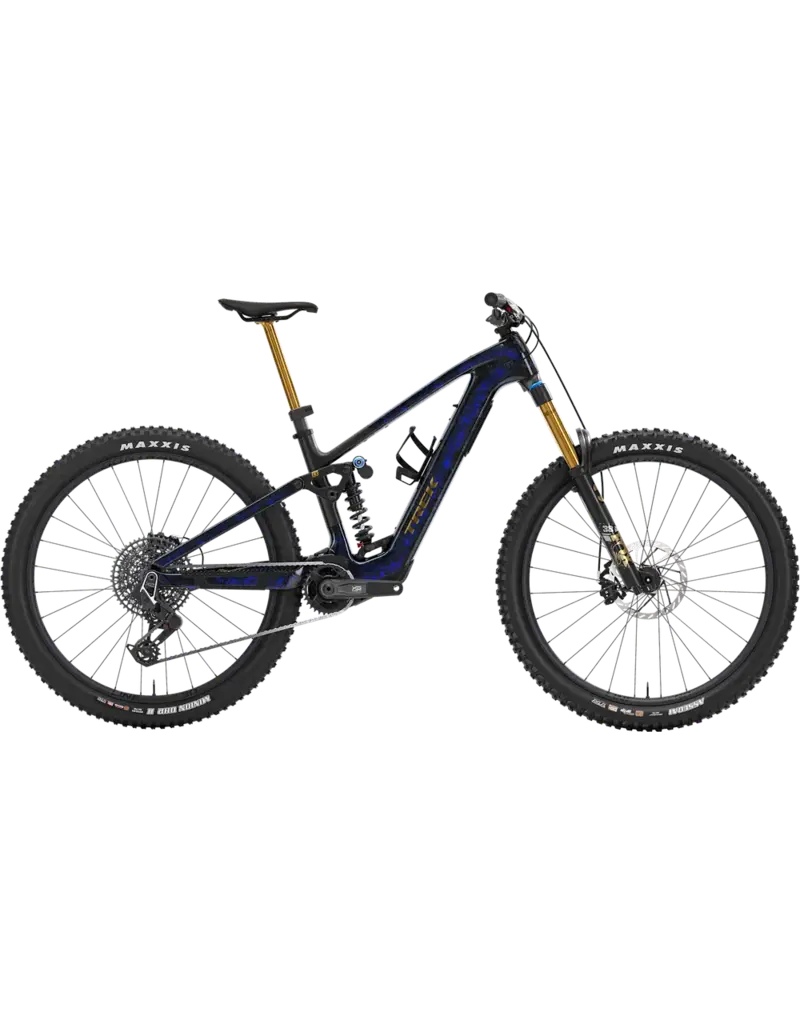

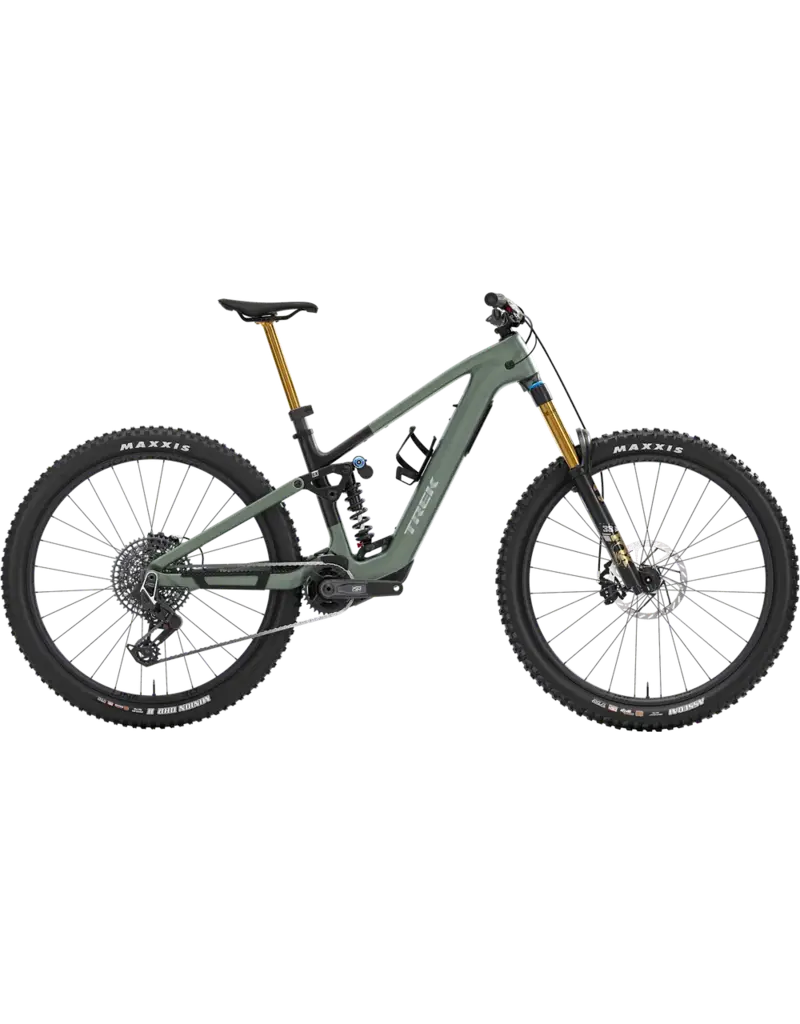

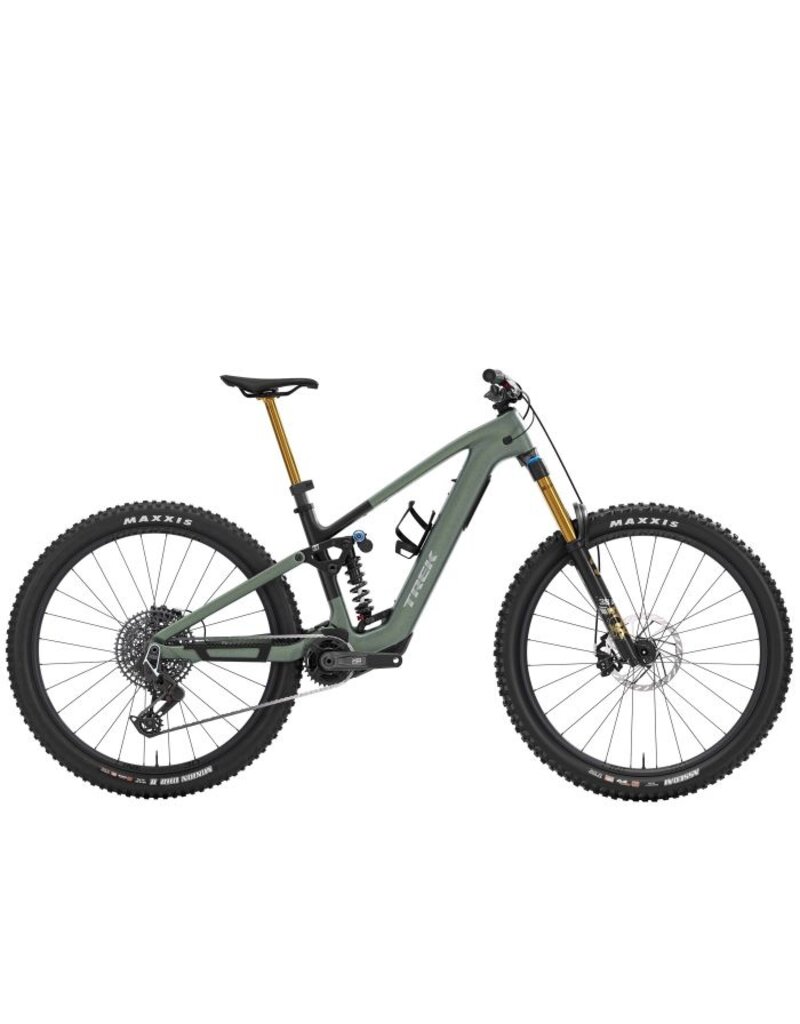

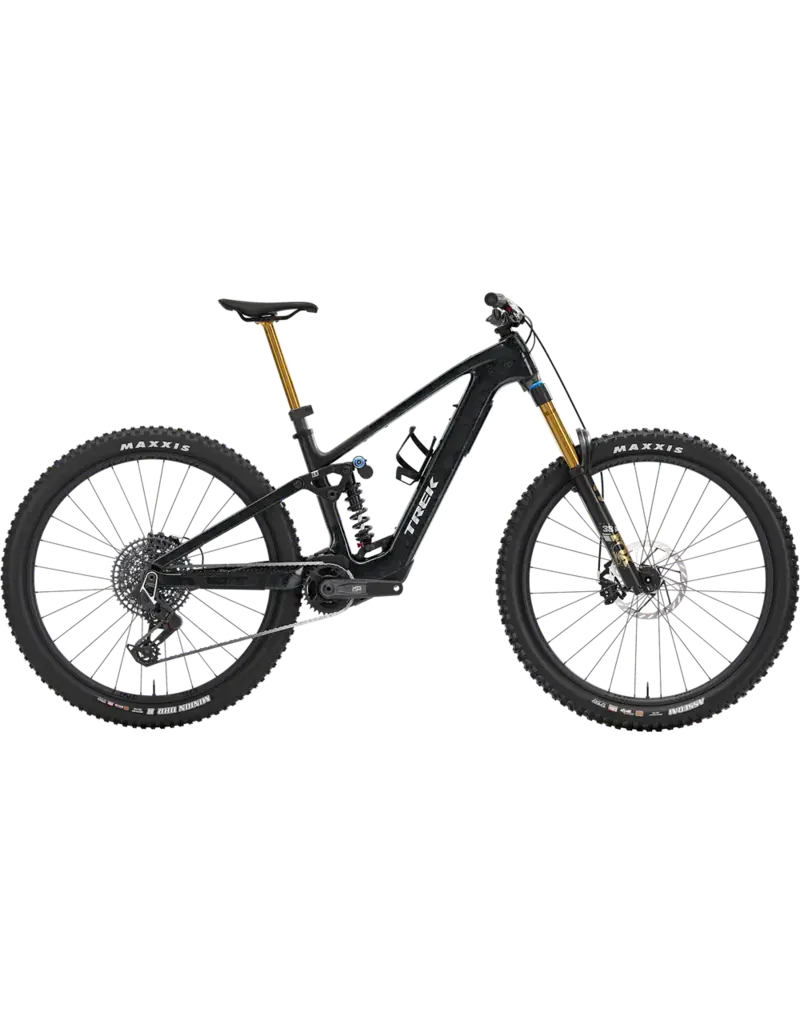

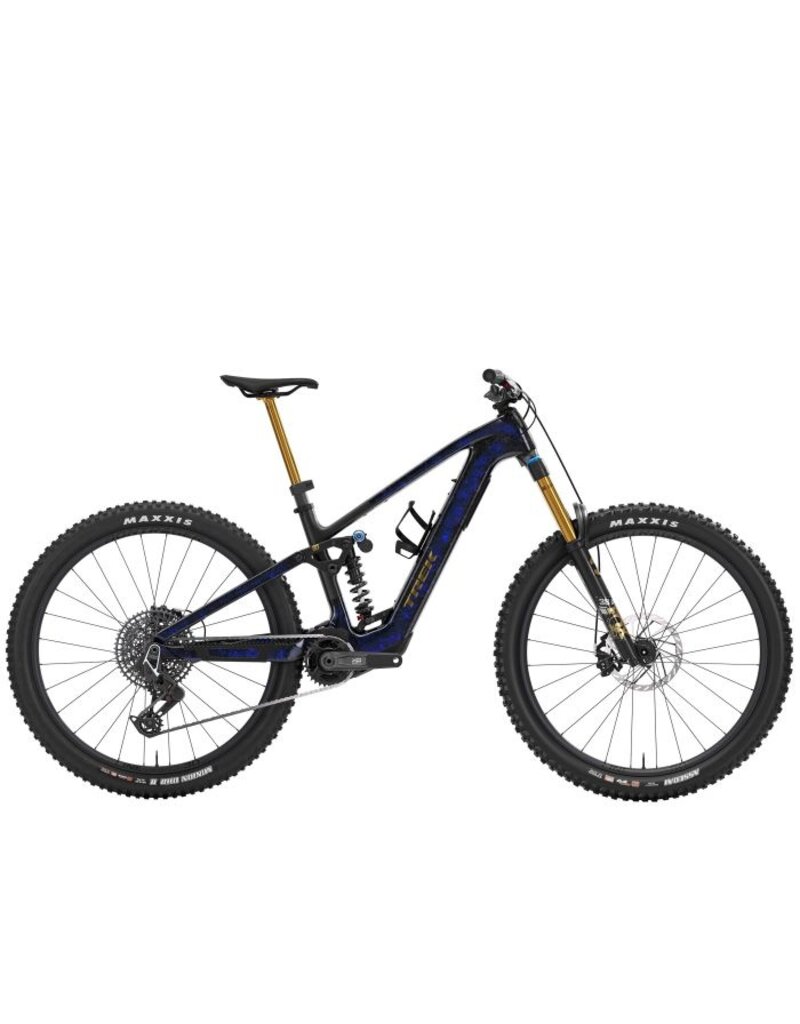

Fuel+ LX 9.9 X0 AXS is the cream-of-the-crop rowdy e-MTB, delivering smooth assist for chasing more hair-raising descents. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a smooth boost, while a Fox Factory suspension package with a coil shock (160mm rear, 170mm front) keeps you feeling confident in the roughest terrain. It comes ready for anything with top-tier components, like a SRAM X0 AXS transmission, SRAM Maven Silver brakes, carbon wheels, and a Fox Transfer Neo dropper post.
*Please note - spec applies to all sizes unless listed separately
| *Frame | Size: S, XL, L, M, XXL
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
|
|---|---|
| *Fork | Size: S, XL, L, M, XXL
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
|
| *Shock | Size: S, XL, L, M, XXL
Fox DHX2, 205mm x 65mm
|
| *Suspension part | Size: S
Fox steel coil spring, 250lbs
|
| Size: M
Fox steel coil spring, 350lbs
|
|
| Size: L
Fox steel coil spring, 400lbs
|
|
| Size: XL
Fox steel coil spring, 450lbs
|
|
| Size: XXL
Fox steel coil spring, 500 lbs
|
| *Wheel front | Size: S, XL, L, M, XXL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
|
|---|---|
| *Wheel rear | Size: S, XL, L, M, XXL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
|
| *Skewer rear | Size: S, XL, L, M, XXLBontrager Switch thru axle, removable lever |
| *Tire | Size: S, XL, L, M, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
| Size: S, XL, L, M, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tire part | Size: S, XL, L, M, XXL
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tire size | Frame: 29x2.50", Fork: See manufacturer |
| *Battery | Size: S, XL, L, M, XXLTQ 580Wh |
|---|---|
| *Charger | Size: S, XL, L, M, XXL
TQ 4A charger
|
| *Controller | Size: S, XL, L, M, XXL
TQ color LED display with Bluetooth & ANT+ connectivity
|
| *Motor | Size: S, XL, L, M, XXL
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
|
| *Shifter | Size: S, XL, L, M, XXL
SRAM AXS pod
|
|---|---|
| *Rear derailleur | Size: S, XL, L, M, XXL
SRAM X0 Eagle AXS, T-Type
|
| *Crank | Size: S, XL, L, M, XXL
SRAM X0 Eagle, 160mm length
|
| *Chain ring | Size: S, XL, L, M, XXL
SRAM T-Type, 32T, alloy
|
| *Cassette | Size: S, XL, L, M, XXL
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
|
| *Chain | Size: S, XL, L, M, XXL
SRAM X0 Eagle, T-Type, 12 speed
|
| Max chainring size | 1x: 34T, min 30T |
| *Saddle | Size: S, XL, L, M, XXLVerse Short Pro, carbon rails, 145mm width |
|---|---|
| *Handlebar | Size: S, XL, L, M, XXL
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
|
| *Grips | Size: S, XL, L, M, XXLTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, M, XXL
Race Face Turbine R, 35mm, 0 degree, 40mm length
|
| *Brake | Size: S, XL, L, M, XXL
SRAM Maven Silver 4-piston hydraulic disc
|
| *Brake rotor | Size: S, XL, L, M, XXL
SRAM HS2, 6-bolt, 200mm
|
| Rotor size | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| Weight | M - 20.31 kg / 44.78 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
