| Availability: |
Out of stock |

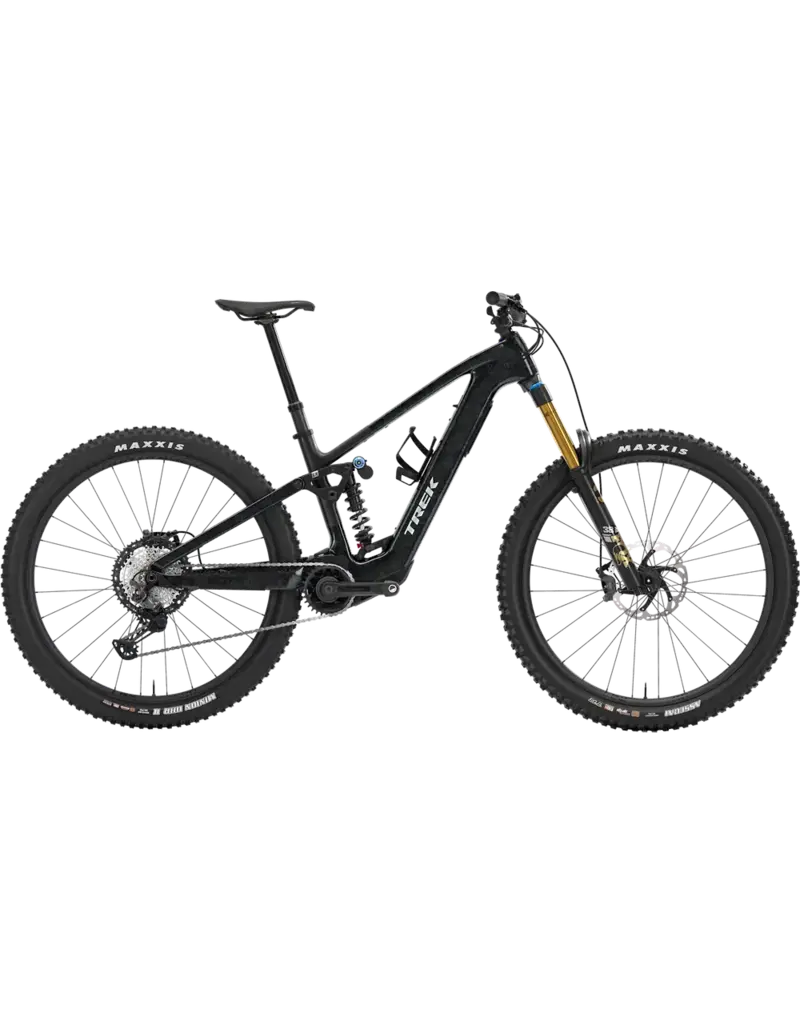

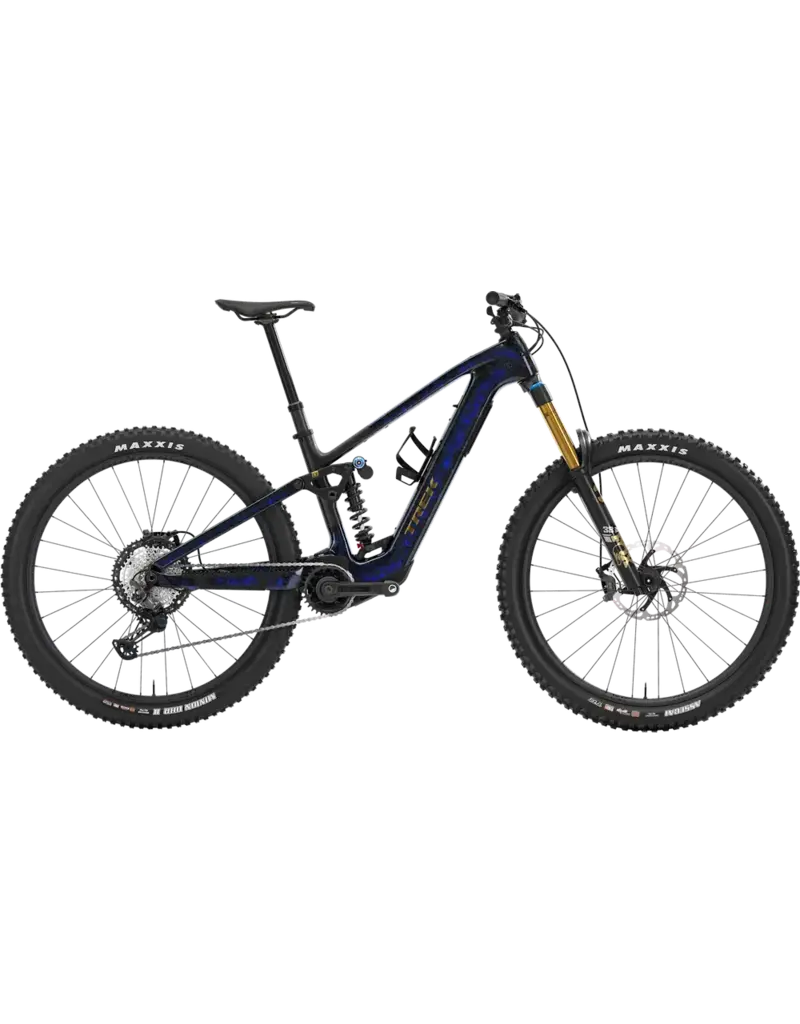

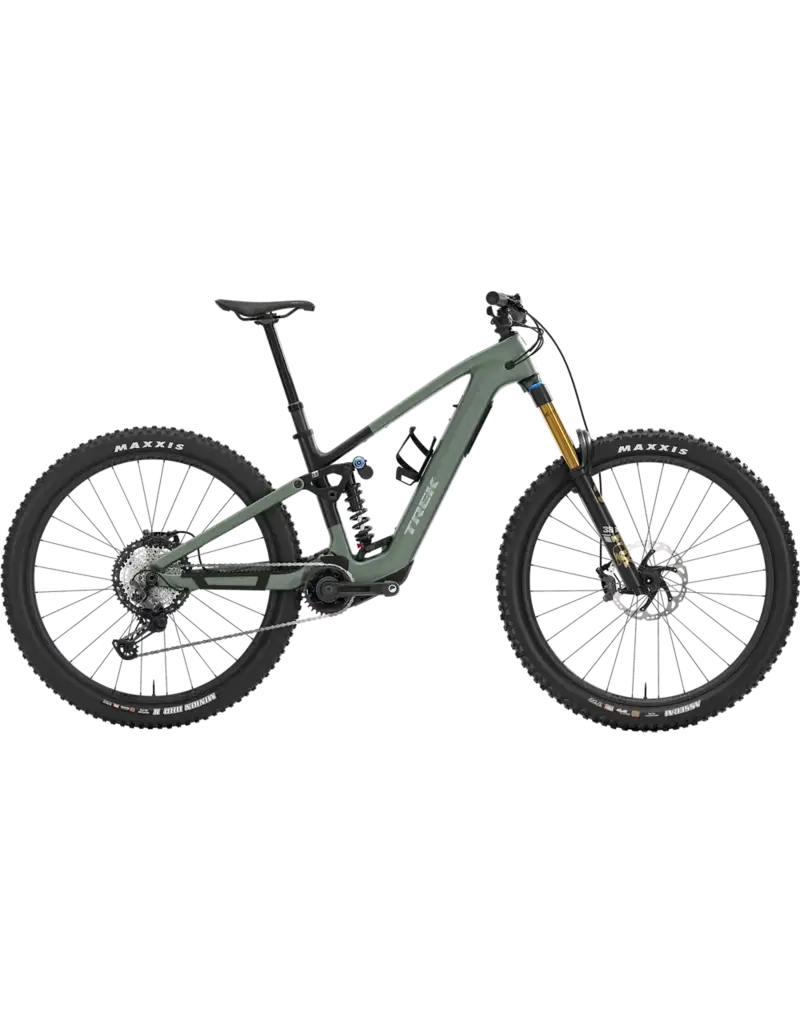

Fuel+ LX 9.8 XT is a hard-hitting electric mountain bike for tackling endless laps. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a quiet, smooth boost, while a Fox Factory suspension package with a coil shock (160mm rear, 170mm front) keeps you feeling confident in the roughest terrain. A mechanical Shimano XT 12-speed drivetrain gives you clean, reliable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.
- Frame
-
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
- Shock
-
- *Suspension part
-
Size: S
Fox steel coil spring, 250lbs
Size: M
Fox steel coil spring, 350lbs
Size: L
Fox steel coil spring, 400lbs
Size: XL
Fox steel coil spring, 450lbs
Size: XXL
Fox steel coil spring, 500 lbs
- Wheel front
-
- Wheel rear
-
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Battery
-
- Charger
-
- Controller
-
TQ color LED display with Bluetooth & ANT+ connectivity
- Motor
-
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Shifter
-
Shimano XT M8100, 12 speed
- Rear derailleur
-
- Crank arm
-
E*thirteen E*spec Plus, 160mm length
- Chain ring
-
E*Thirteen Helix Core Steel 32t steel, 55mm chainline
- Cassette
-
Shimano XT M8200, 10-51, 12 speed
- Chain
-
Shimano Ultegra/XT M8100, 12 speed
- Max chainring size
- 1x: 34T, min 30T
- Saddle
-
- *Seatpost
-
- Handlebar
-
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
- Grips
-
- Stem
-
- Brake
-
Shimano XT M8220 4-piston hydraulic disc
- Brake rotor
-
Shimano RT86, 6-bolt, 203mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 20.92 kg / 46.13 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
