| Availability: |
Out of stock |

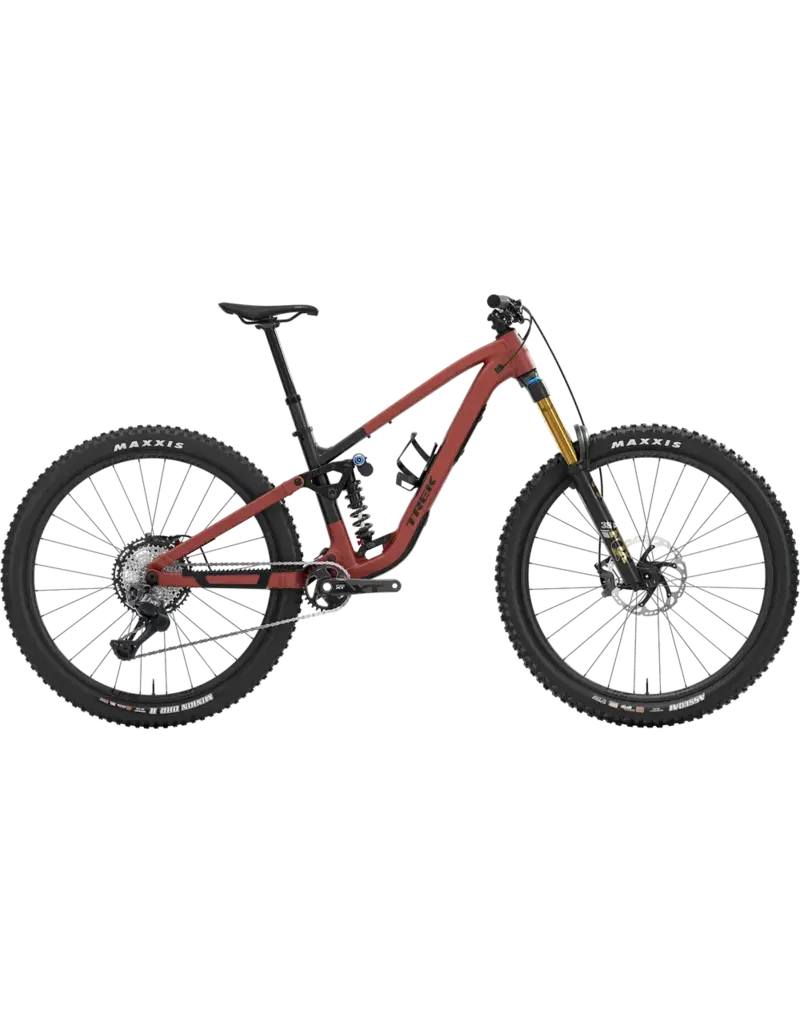

Fuel LX 9 XT is a hard-charging trail bike built for rowdy laps and hair-raising descents. It pairs an adaptable Alpha NEXT Platinum aluminum frame with a Fox Factory 38 fork and DHX2 coil shock (160mm rear, 170mm front) for rolling into steeper than steep lines packed with mine fields of boulders. Shimano's wireless XT Di2 drivetrain delivers ultra crisp, customizable shifting in a light, robust package, and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.
- Frame
-
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
- Shock
-
- *Suspension part
-
Size: S
Fox steel coil spring, 250lbs
Size: M
Fox steel coil spring, 350lbs
Size: L
Fox steel coil spring, 400lbs
Size: XL
Fox steel coil spring, 450lbs
- Wheel front
-
- Wheel rear
-
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29"
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
Shimano XT Di2 M8250, 12 speed
- Rear derailleur
-
Shimano XT M8250, long cage
- Crank
-
Shimano XT 8200, 30T, 55mm chainline, 170mm length
- Bottom bracket
-
- Cassette
-
Shimano XT M8200, 10-51, 12 speed
- Chain
-
Shimano XT M8100, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
- *Seatpost
-
- Handlebar
-
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips
-
- Stem
-
- Brake
-
Shimano XT M8220 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
Shimano RT86, 6-bolt, 180mm
Size: S, M, L, XL
Shimano RT86, 6-bolt, 203mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 17.84 kg / 39.34 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
