| Availability: |
Out of stock |

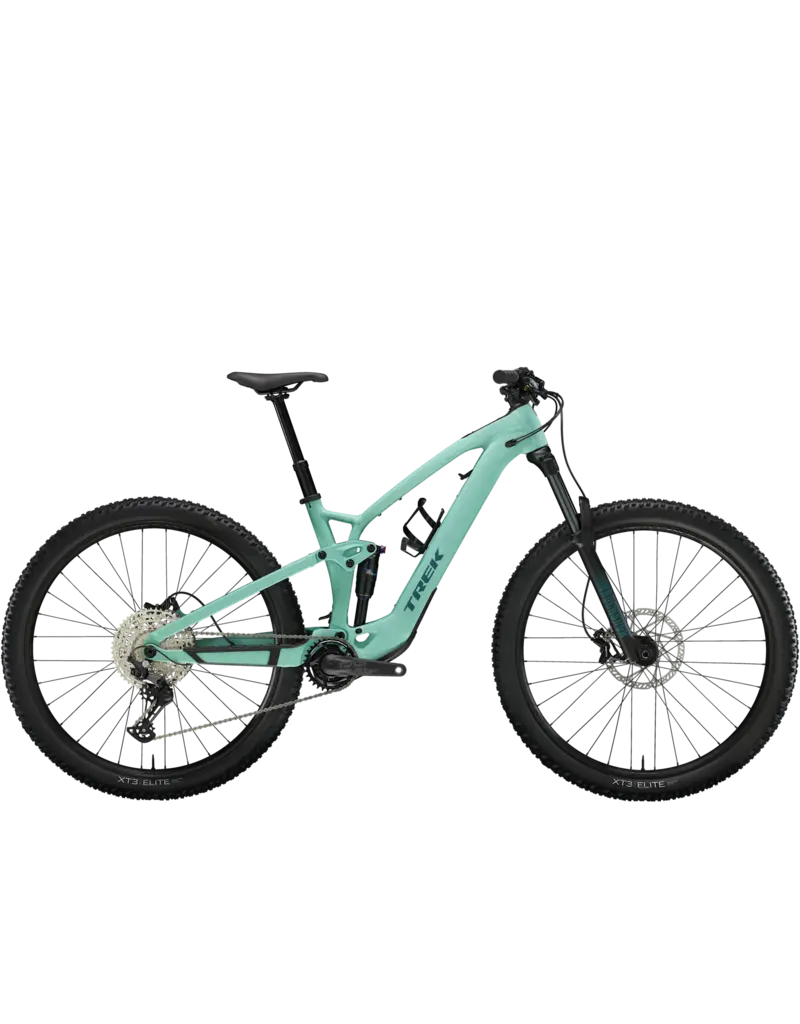

Fuel EXe 5 is an aluminum electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.
| Frame |
Alpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel |
| Fork |
RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 150mm travel |
| Shock |
X-Fusion Pro 2, 2-position damper, 205mm x 60mm |
| Max compatible fork travel |
160mm (575mm axle-to-crown) |
| Hub front |
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Hub rear |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Skewer rear |
Bontrager Switch thru axle, removable lever |
| Rim |
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve |
| Tire |
Bontrager XT3 Elite, wire bead, 60 tpi, 29x2.40" |
| Rim strip |
Bontrager TLR |
| Max tire size |
Frame: 29x2.50", Fork: See manufacturer |
| Saddle |
Bontrager Arvada, steel rails, 138 mm width |
| *Seatpost |
Size: S
TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length |
Size: M
TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length |
Size: L, XL
TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length |
| Handlebar |
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Headset |
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake |
Tektro HD-M745 hydraulic disc |
| Brake rotor |
Tektro, 6-bolt, 203mm |
| Rotor size |
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Weight |
M - 20.80 kg / 45.86 lbs (with TLR sealant, no tubes) |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
