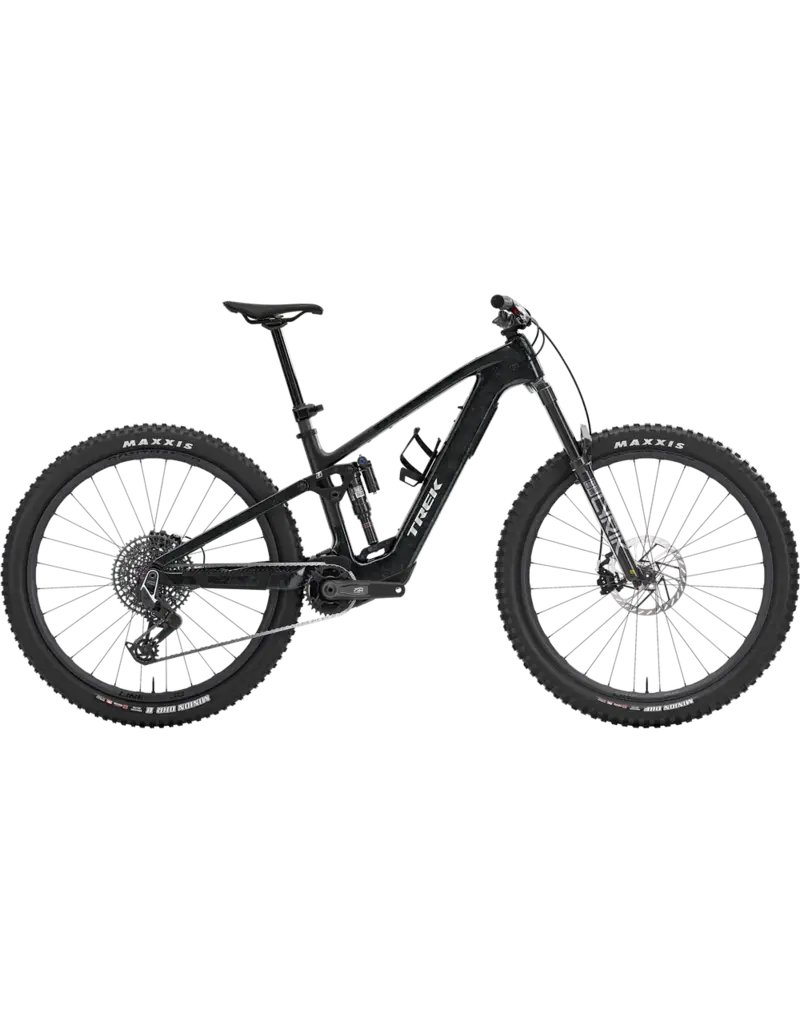

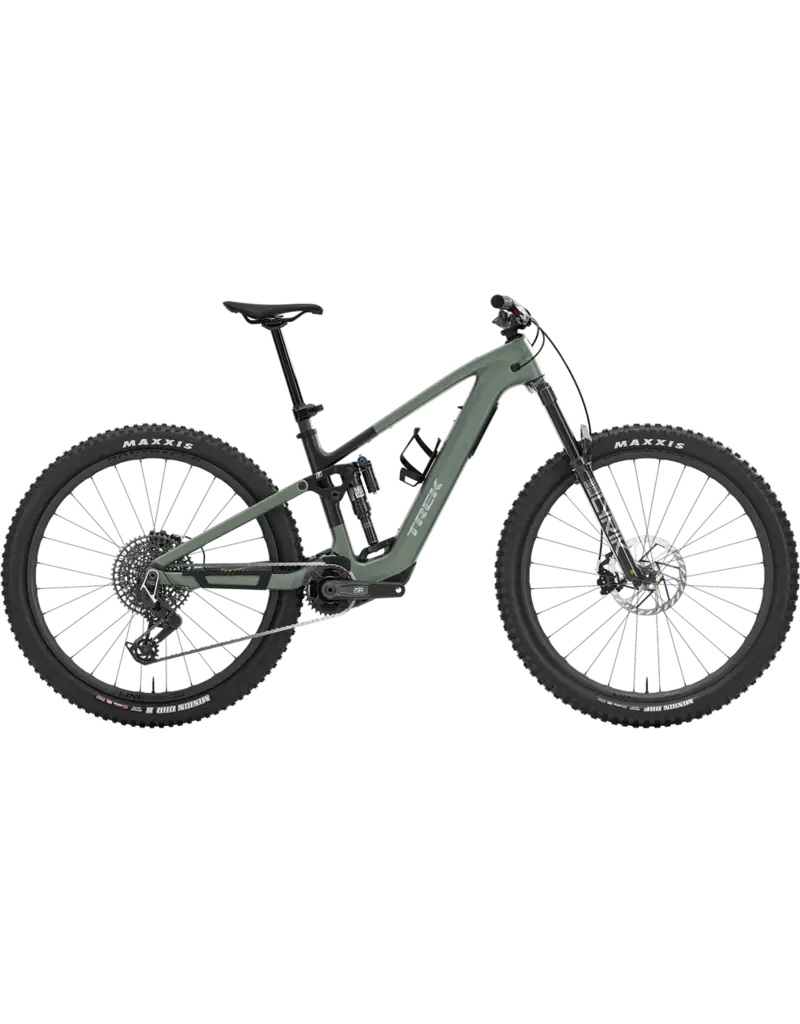

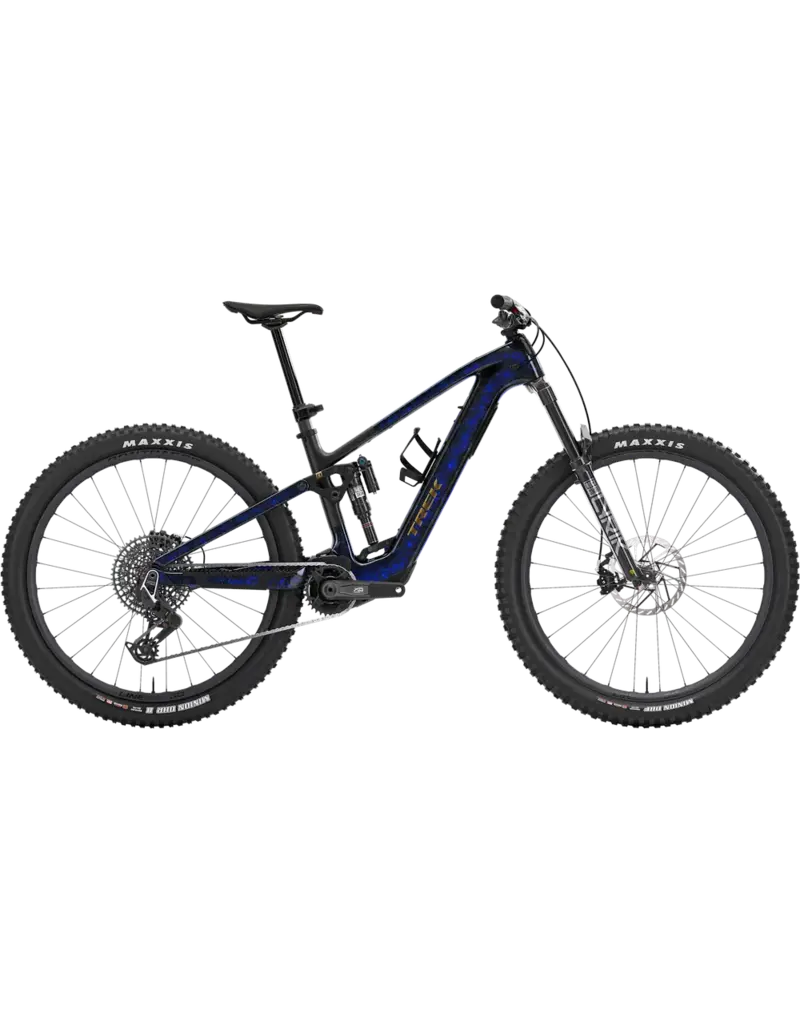

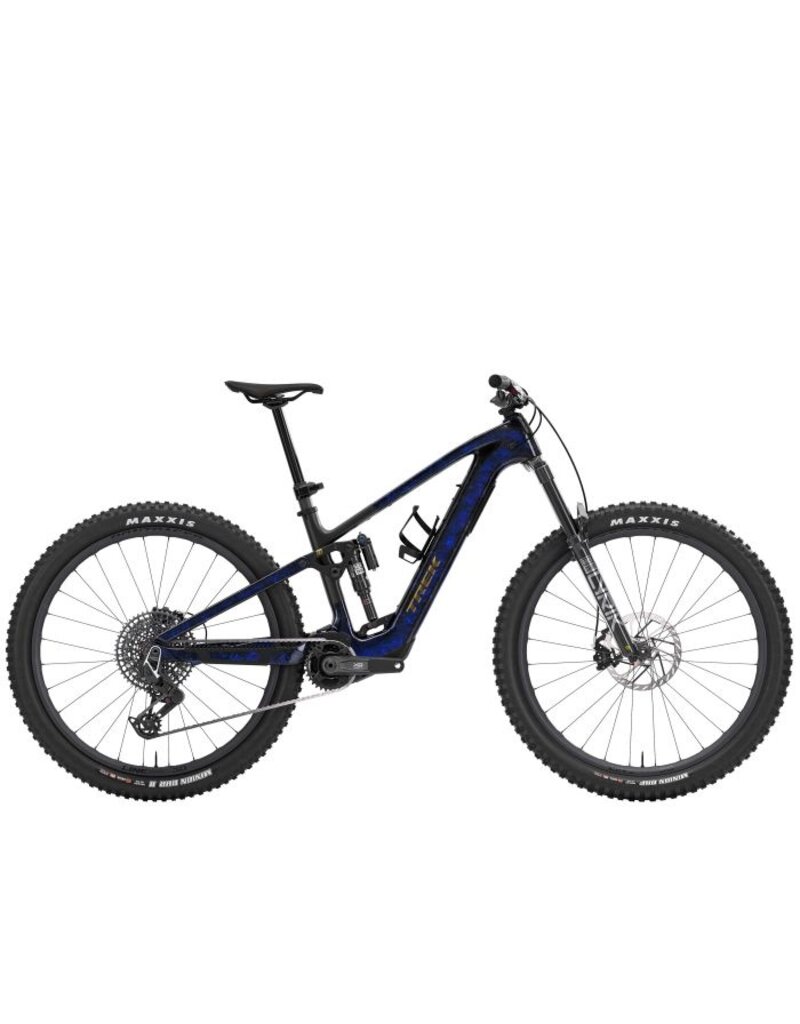

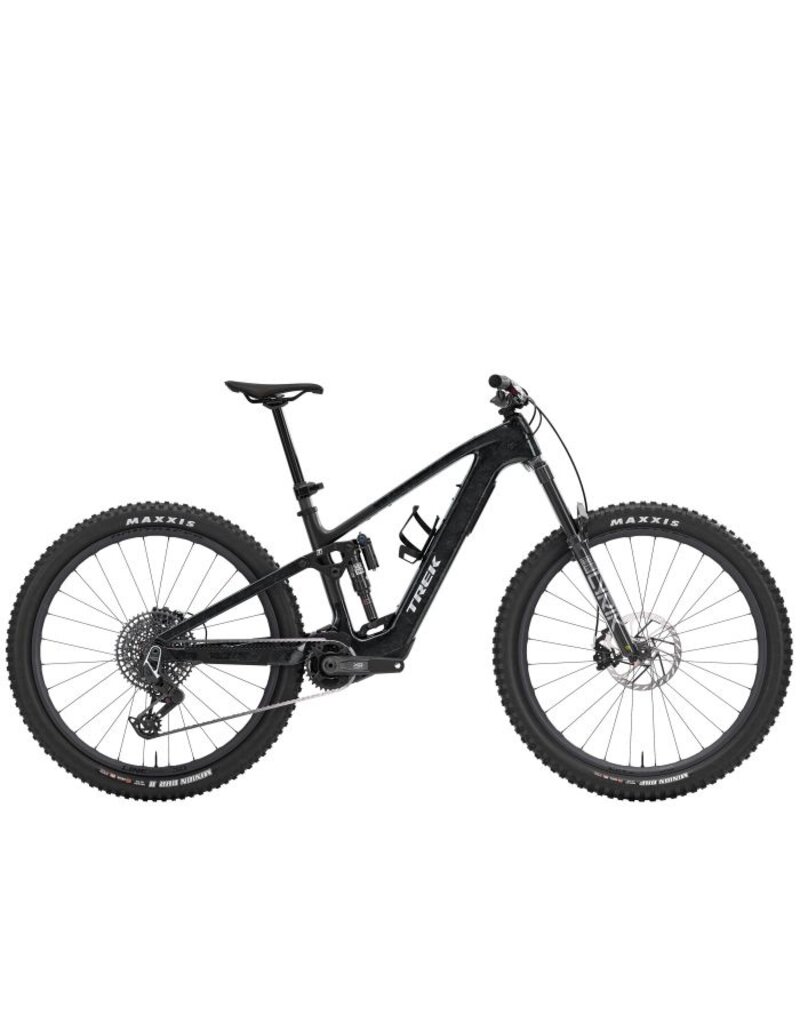

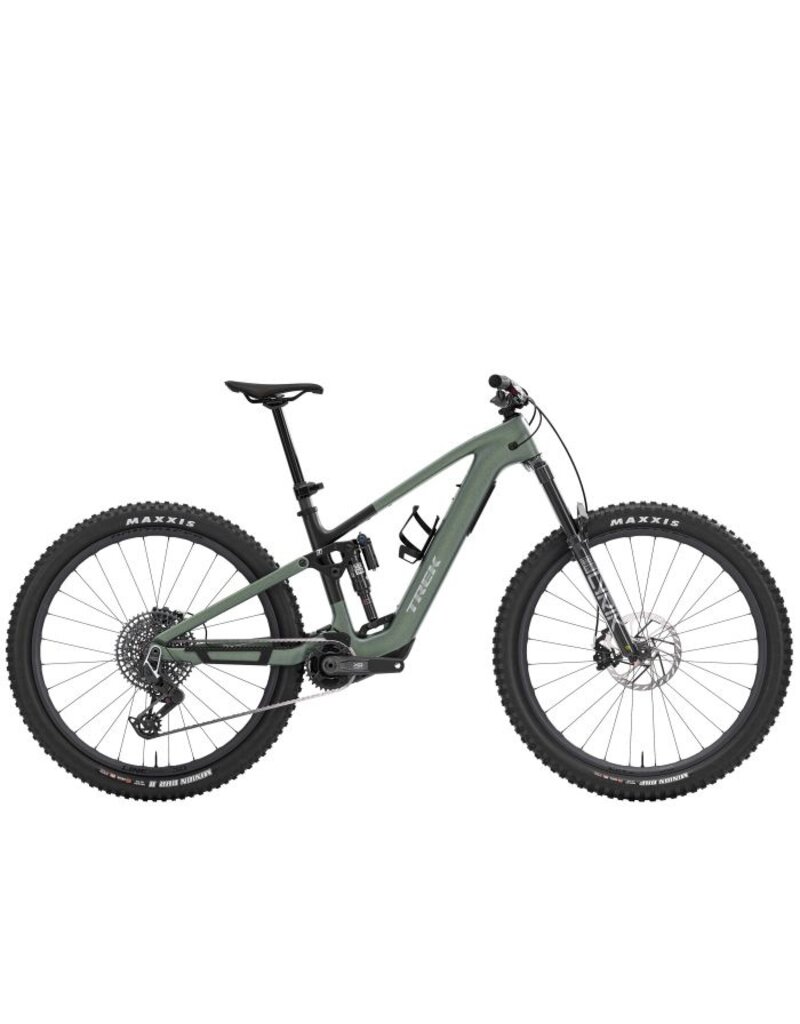

Fuel+ EX 9.9 X0 AXS is the pinnacle of e-MTB performance, with versatile handling and smooth support for any trail. It starts with an OCLV Mountain Carbon frame and TQ HPR60 motor for a quiet, natural boost. A RockShox Lyrik Ultimate fork and Deluxe Ultimate RCT2 shock (145mm rear, 150mm front) give you confident handling anywhere, and SRAM's X0 AXS wireless transmission keeps shifting precise under load. It's topped off with a RockShox Reverb wireless dropper post and Bontrager Line Pro 30 carbon wheels.
*Please note - spec applies to all sizes unless listed separately
| *Frame | Size: S, XL, L, M, XXL
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
|
|---|---|
| *Fork | Size: S, XL, L, M, XXL
RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
|
| *Shock | Size: S, XL, L, M, XXL
RockShox Deluxe Ultimate RC2T, 205mm x 60mm
|
| *Wheel front | Size: S, XL, L, M, XXL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
|
|---|---|
| *Wheel rear | Size: S
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
|
| Size: XL, L, M, XXL
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
|
|
| *Skewer rear | Size: S, XL, L, M, XXLBontrager Switch thru axle, removable lever |
| *Tire | Size: S, XL, L, M, XXL
Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
|
| Size: S
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
|
|
| Size: XL, L, M, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
|
|
| *Tire part | Size: S, XL, L, M, XXL
Bontrager TLR sealant, 180 ml/6 oz
|
| Max tire size | Frame: 29x2.50", Fork: See manufacturer |
| *Battery | Size: S, XL, L, M, XXLTQ 580Wh |
|---|---|
| *Charger | Size: S, XL, L, M, XXL
TQ 4A charger
|
| *Controller | Size: S, XL, L, M, XXL
TQ color LED display with Bluetooth & ANT+ connectivity
|
| *Motor | Size: S, XL, L, M, XXL
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
|
| *Shifter | Size: S, XL, L, M, XXL
SRAM AXS pod
|
|---|---|
| *Rear derailleur | Size: S, XL, L, M, XXL
SRAM X0 Eagle AXS, T-Type
|
| *Crank | Size: S, XL, L, M, XXL
SRAM X0 Eagle, 160mm length
|
| *Chain ring | Size: S, XL, L, M, XXL
SRAM T-Type, 32T, alloy
|
| *Cassette | Size: S, XL, L, M, XXL
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
|
| *Chain | Size: S, XL, L, M, XXL
SRAM X0 Eagle, T-Type, 12 speed
|
| Max chainring size | 1x: 34T, min 30T |
| *Saddle | Size: S, XL, L, M, XXLVerse Short Pro, carbon rails, 145mm width |
|---|---|
| *Seatpost | Size: S
RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 442mm length
|
| Size: M
RockShox Reverb AXS, 175mm travel, wireless, 34.9mm, 492mm length
|
|
| Size: XL, L, XXL
RockShox Reverb AXS, 200mm travel, wireless, 34.9mm, 542mm length
|
|
| *Handlebar | Size: S, XL, L, M, XXL
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
|
| *Grips | Size: S, XL, L, M, XXLTrek Line Elite, lock-on |
| *Stem | Size: S, XL, L, M, XXL
Race Face Turbine R, 35mm, 0 degree, 40mm length
|
| *Brake | Size: S, XL, L, M, XXL
SRAM Maven Silver 4-piston hydraulic disc
|
| *Brake rotor | Size: S, XL, L, M, XXL
SRAM HS2, 6-bolt, 200mm
|
| Rotor size | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| Weight | M - 19.58 kg / 43.17 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
