| Availability: |
Out of stock |

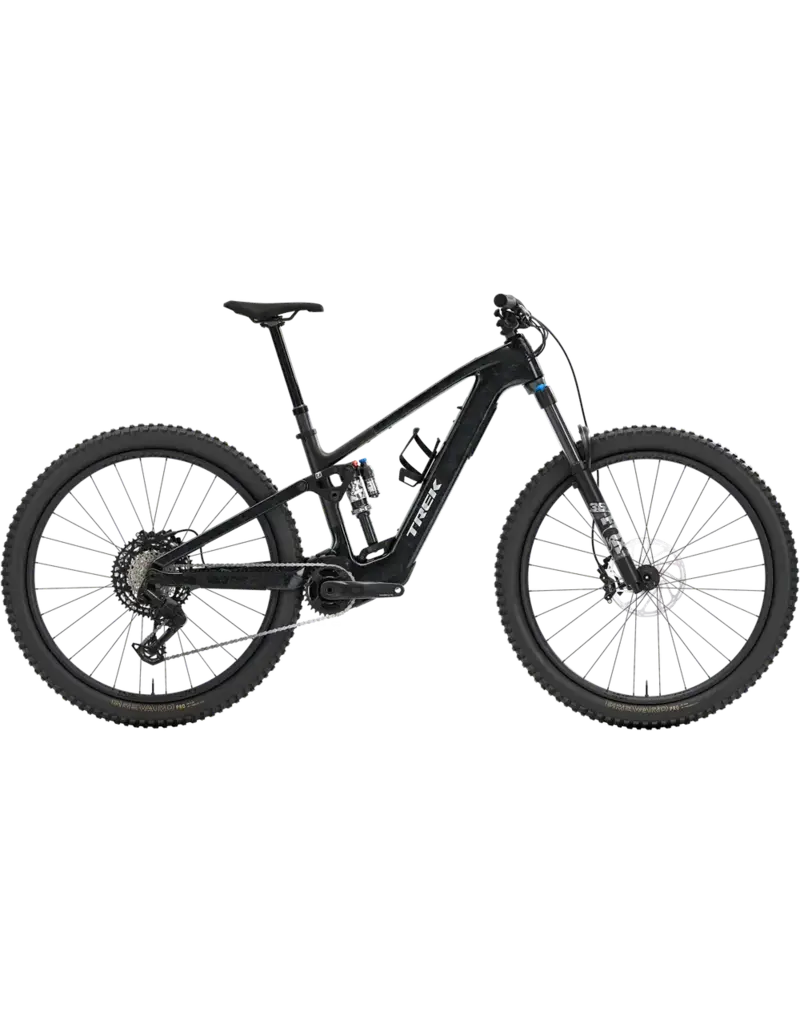

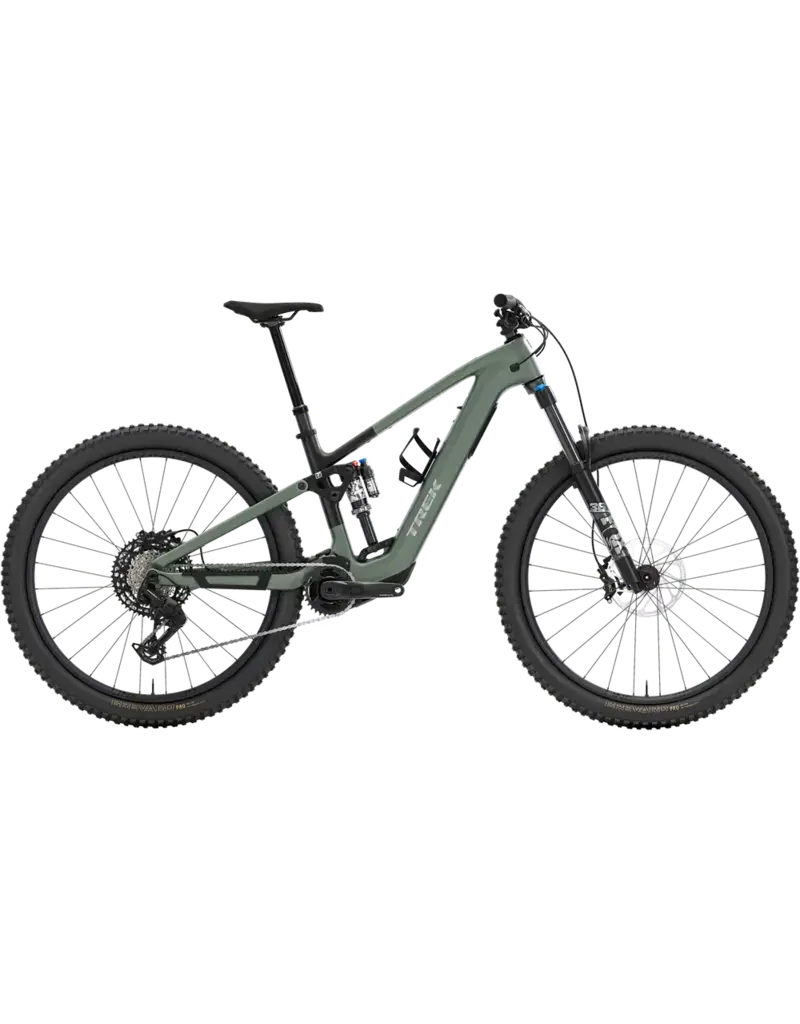

Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It's equipped with the smooth and quiet boost of TQ's HPR60 motor with a 580Wh battery for bigger rides. You get the perfect balance of price and performance, with components like a Fox Rhythm 36 fork, Fox Performance Float X shock, SRAM Eagle T-Type shifting, and a Bontrager Line dropper post.
- Frame
-
OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
- Shock
-
Fox Performance Float X, 2-position damper, 205mm x 60mm
- Hub front
-
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- Hub rear
-
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle
- Skewer rear
-
- Rim
-
- *Tire
-
Size: S
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: S, M, L, XL, XXL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Battery
-
- Charger
-
- Computer
-
- Motor
-
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Shifter
-
- Rear derailleur
-
- Crank
-
SRAM EAGLE 70, 160mm length
- Chain ring
-
- Cassette
-
SRAM Eagle XS-1270, T-Type,10-52, 12 speed
- Chain
-
SRAM Eagle 70, T-Type, 12 speed
- Max chainring size
- 1x: 34T, min 30T
- Saddle
-
Bontrager Verse P3, chromoly rails
- *Seatpost
-
- Handlebar
-
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips
-
- Stem
-
- Headset
-
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
- Brake
-
SRAM DB 8 4-piston hydraulic disc
- Brake rotor
-
SRAM Centerline 2.0, 6-bolt, 200mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 19.73 kg / 43.5 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
