| Availability: |
Out of stock |

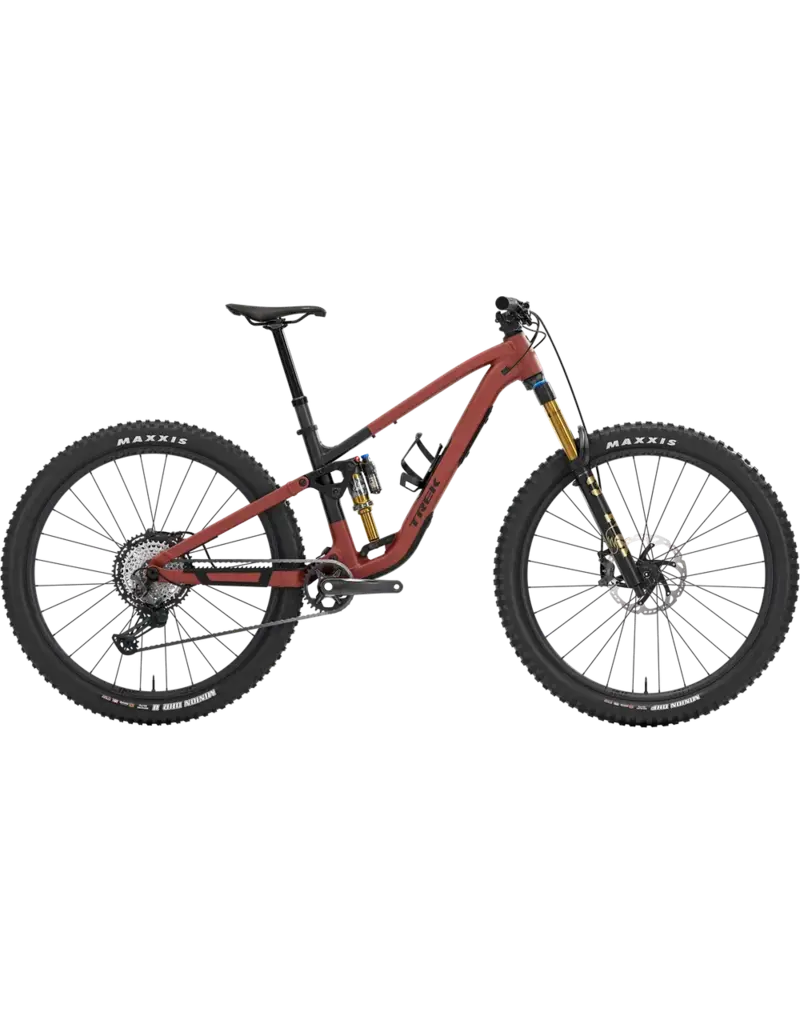

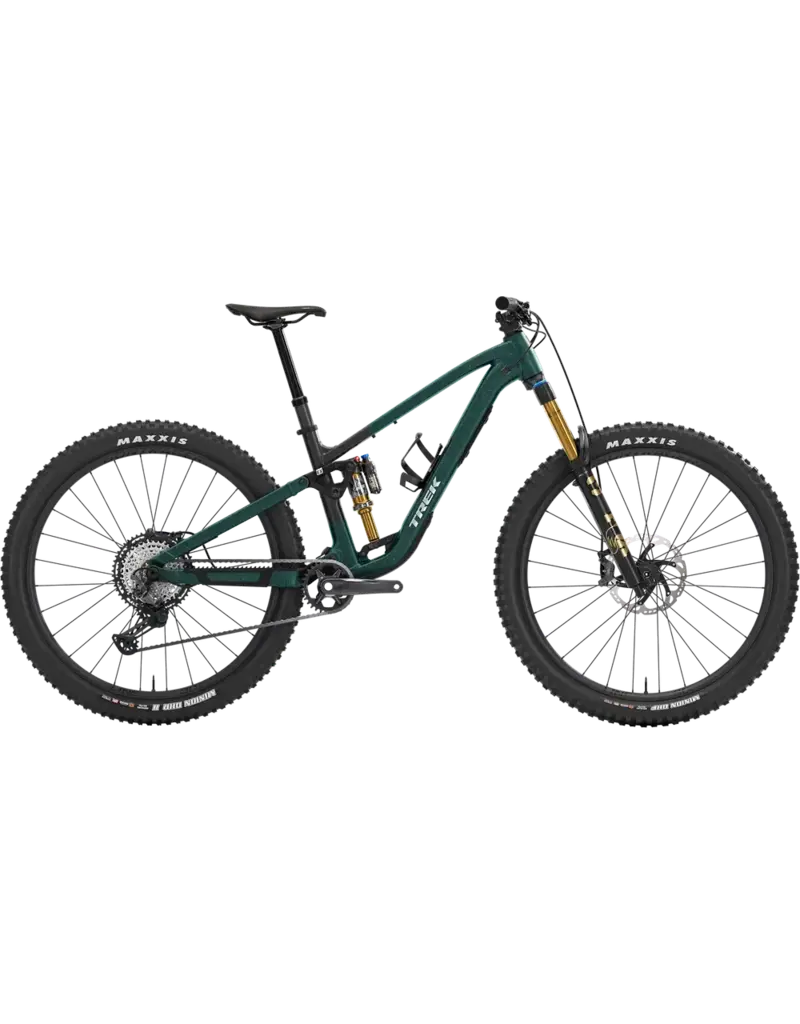

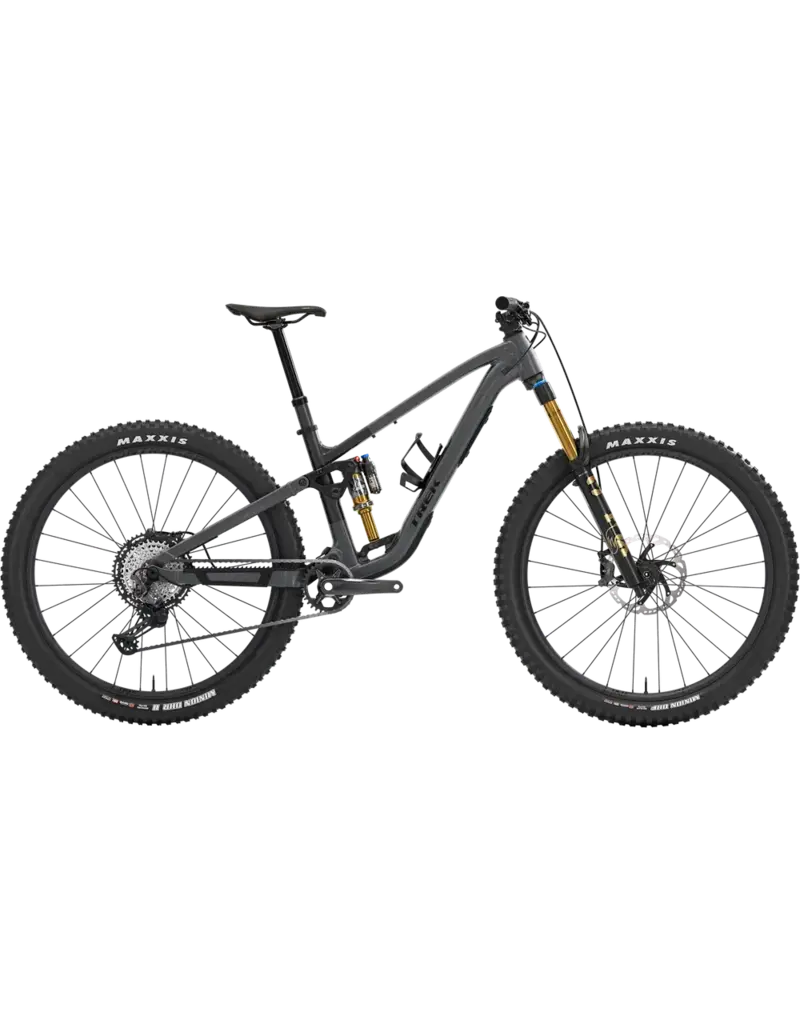

Fuel EX 9 XT is a confident trail bike made to rip into just about anything. It starts with an Alpha NEXT Platinum aluminum frame with a Fox Factory suspension package (145mm rear, 150mm front) that make quick work of tech and flow alike. A Shimano XT drivetrain delivers reliable mechanical shifting, while 4-piston brakes XT M8200 brakes give you the modulation and stopping power you need when things get hairy.
- Frame
-
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel
- Shock
-
Fox Factory Float X, 205mm x 60mm
- Wheel front
-
- *Wheel rear
-
Size: S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 27.5"
Size: M, L, XL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29"
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL
Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
Size: M, L, XL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
Shimano XT M8100, 12 speed
- Rear derailleur
-
- Crank
-
Shimano XT M8120, 30T, 55mm chainline, 170mm length
- Bottom bracket
-
- Cassette
-
Shimano XT M8200, 10-51, 12 speed
- Chain
-
Shimano XT M8100, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
- *Seatpost
-
- Handlebar
-
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips
-
- Stem
-
- Brake
-
Shimano XT M8220 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
Shimano RT86, 6-bolt, 180mm
Size: S, M, L, XL
Shimano RT86, 6-bolt, 203mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 17.14 kg / 37.79 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
