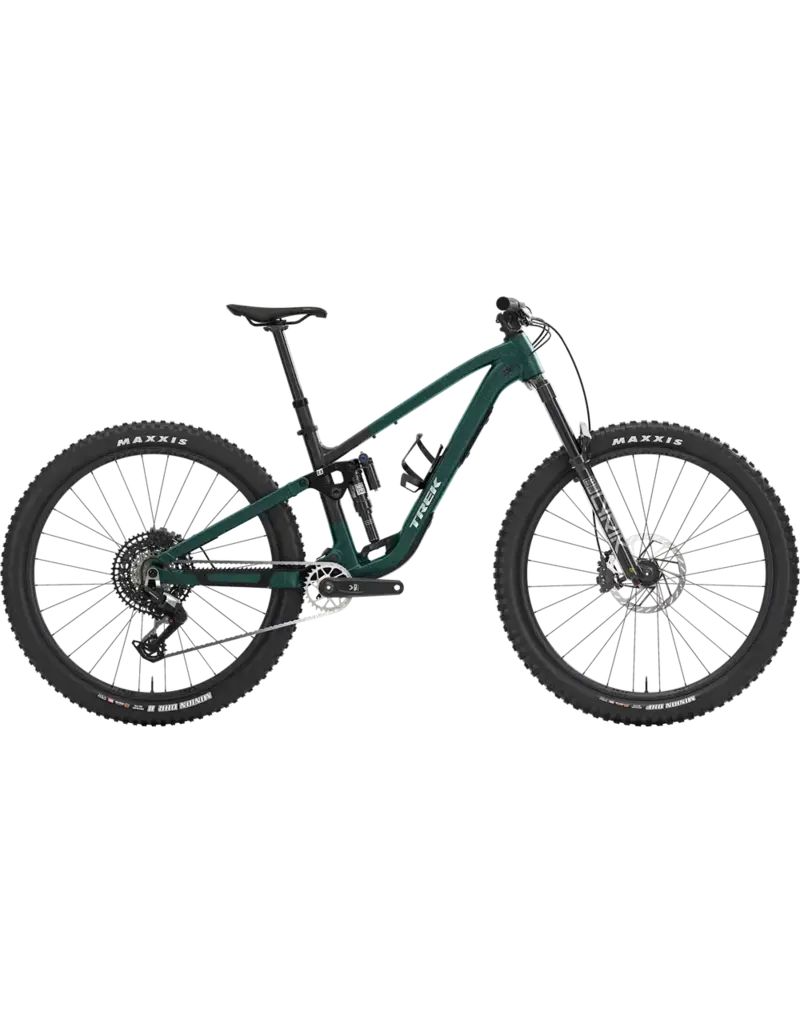

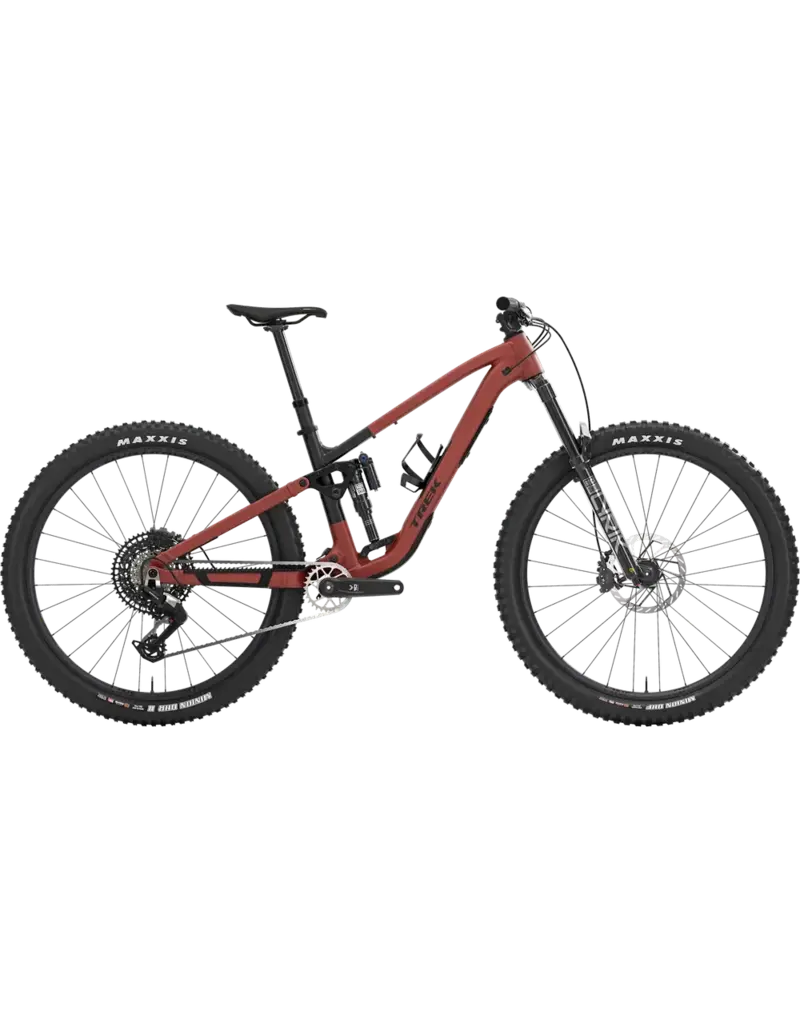

Fuel EX 9 Eagle 90 is a confident trail bike made to rip into just about anything. It starts with an Alpha NEXT Platinum aluminum frame with a RockShox Lyrik Ultimate fork and Deluxe Ultimate RC2T shock (150mm front, 145mm rear) for confident handling on any trail. A SRAM Eagle 90 transmission gives you fuss-free mechanical shifting that stays smooth under load, while SRAM Maven Bronze 4-piston brakes deliver incredible power for quick stops after steep descents.
- Frame
-
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
- Shock
-
RockShox Deluxe Ultimate RC2T, 205mm x 60mm
- Wheel front
-
- *Wheel rear
-
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL
Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
Size: M, L, XL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
- Rear derailleur
-
- Crank
-
SRAM Eagle 90, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73mm, BSA threaded
- Cassette
-
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
- Chain
-
SRAM GX Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
- *Seatpost
-
- Handlebar
-
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips
-
- Stem
-
- Brake
-
SRAM Maven Bronze 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
SRAM HS2, 6-bolt, 200mm
Size: S, M, L, XL
SRAM HS2, 6-bolt, 180mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 16.58 kg / 36.56 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
