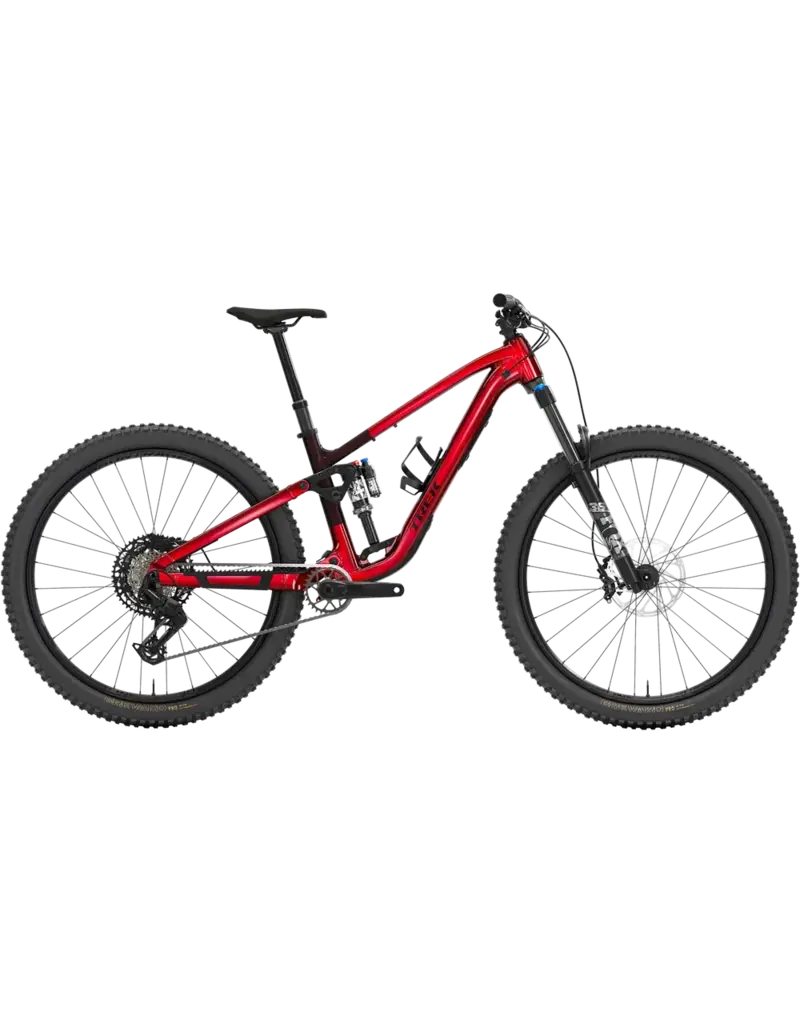

Fuel EX 8 is a confident and versatile trail bike built to get after it. It comes ready to rip with an Alpha NEXT Platinum frame, Fox performance suspension package with 145mm/150mm travel (rear, front), alloy Bontrager Line wheels, and a SRAM Eagle 70 transmission that keeps shifts smooth, even under load. It's topped off with 4-piston SRAM DB 8 hydraulic disc brakes to keep you stopping on a dime.
- Frame
-
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
- Shock
-
Fox Performance Float X, 2-position damper, 205mm x 60mm
- Hub front
-
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- Hub rear
-
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle
- Skewer rear
-
- Rim
-
- *Tire
-
Size: S
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: S, M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
- Rear derailleur
-
- Crank
-
SRAM Eagle 70, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73mm, BSA threaded
- Cassette
-
SRAM Eagle XS-1270, T-Type,10-52, 12 speed
- Chain
-
SRAM Eagle 70, T-Type, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
Bontrager Verse P3, chromoly rails
- *Seatpost
-
- Handlebar
-
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips
-
- Stem
-
- Headset
-
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
- Brake
-
SRAM DB 8 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
SRAM Centerline 2.0, 6-bolt, 200mm
Size: S, M, L, XL
SRAM Centerline 2.0, 6-bolt, 180mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 16.89 kg / 37.24 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
