| Availability: |
Out of stock |

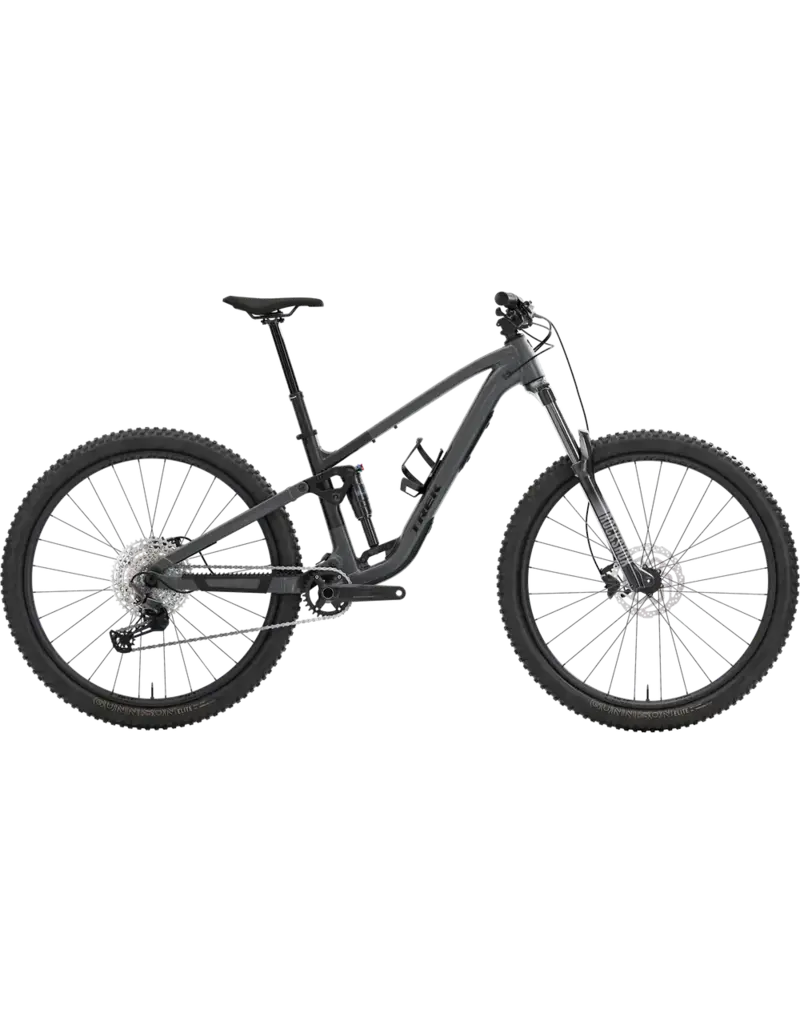

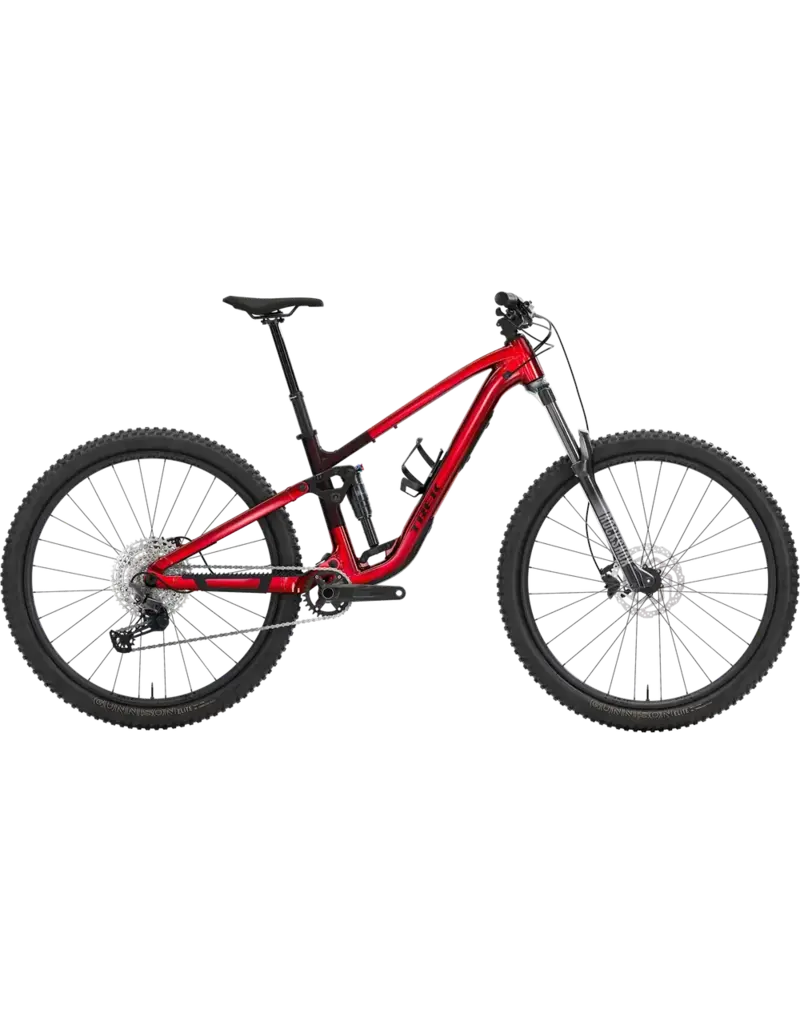

Fuel EX 5 is an aluminum trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.
- Frame
-
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15mm Maxle Stealth, 150mm travel
- Shock
-
X-Fusion Pro 2, 2-position damper, 205mm x 60mm
- Hub front
-
Shimano TC500 alloy, centerlock, 110x15mm thru axle
- Hub rear
-
Shimano TC500 alloy, centerlock, 148x12mm thru axle
- Skewer rear
-
- *Rim
-
- *Tire
-
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
Shimano Deore M6100, 12 speed
- Rear derailleur
-
Shimano Deore M6100, long cage
- Crank
-
Shimano MT512, 30T ring, 55mm chainline, 170mm length
- Bottom bracket
-
- Cassette
-
Shimano Deore M6100, 10-51, 12 speed
- Chain
-
Shimano Deore M6100, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
- *Seatpost
-
Size: S
TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
- Handlebar
-
- Grips
-
- Stem
-
Bontrager Comp, 31.8mm, 7 degree, 35mm length
- Headset
-
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
- Brake
-
Shimano hydraulic disc, MT201 lever, MT200 caliper
- Brake rotor
-
Shimano RT10, CenterLock, 180 mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
