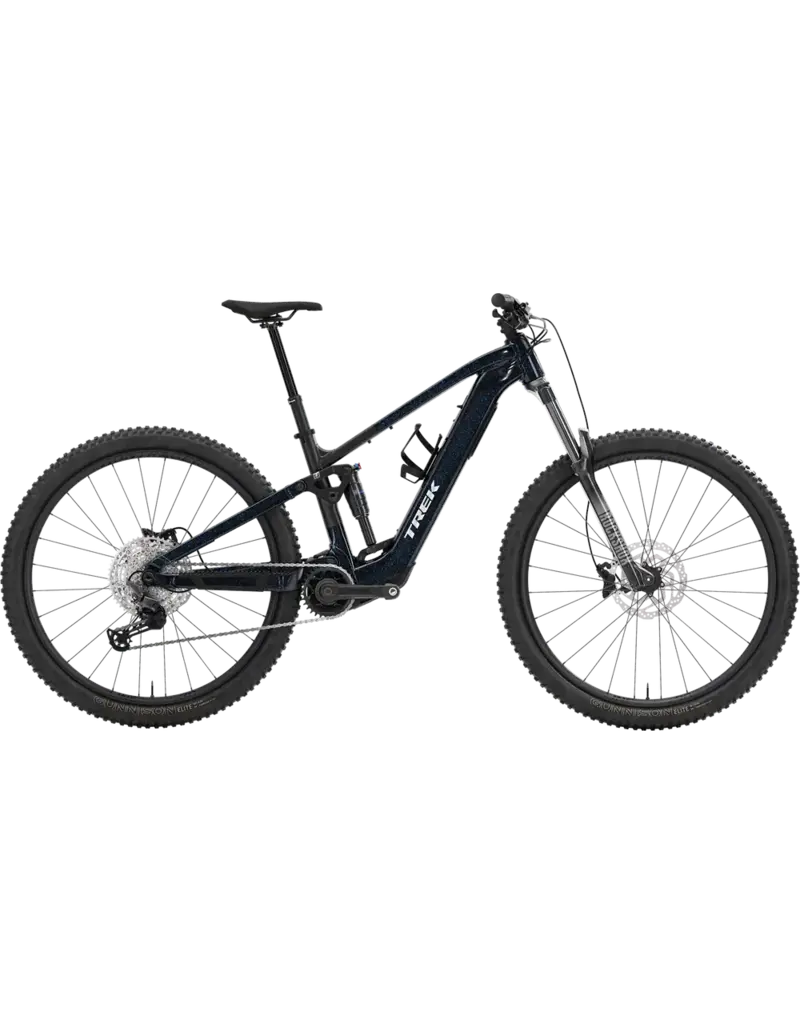

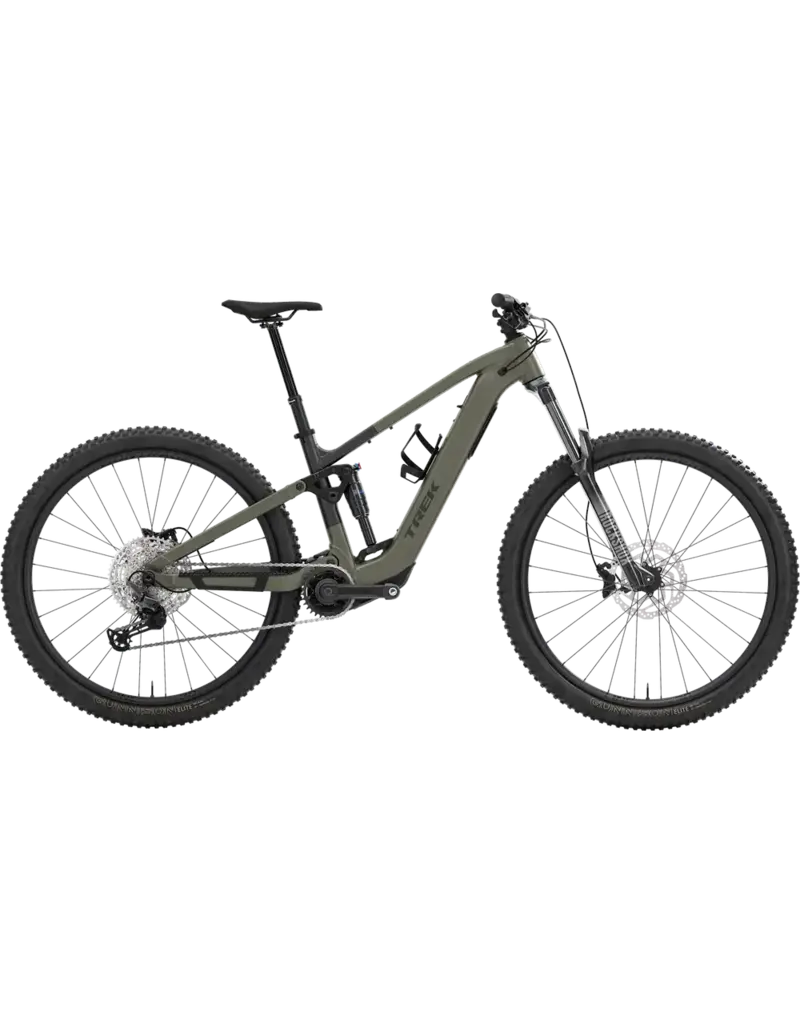

Fuel+ EX 5 is a quiet and capable electric mountain bike that's up for any trail, any time. Its Alpha NEXT Platinum aluminum frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock (145mm rear, 150mm front) provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs, and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.
- Frame
-
Alpha NEXT Platinum aluminum, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15mm Maxle Stealth, 150mm travel
- Shock
-
X-Fusion Pro 2, 2-position damper, 205mm x 60mm
- Hub front
-
Shimano TC500 alloy, centerlock, 110x15mm thru axle
- Hub rear
-
Shimano TC500 alloy, centerlock, 148x12mm thru axle
- Skewer rear
-
- *Rim
-
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Battery
-
- Charger
-
- Computer
-
- Motor
-
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Shifter
-
Shimano Deore M6100, 12 speed
- Rear derailleur
-
Shimano Deore M6100, long cage
- Crank arm
-
E*thirteen E*spec Plus, 160mm length
- Chain ring
-
E*Thirteen Helix Core Steel 32t steel, 55mm chainline
- Cassette
-
Shimano Deore M6100, 10-51, 12 speed
- Chain
-
Shimano Deore M6100, 12 speed
- Max chainring size
- 1x: 34T, min 30T
- Saddle
-
- *Seatpost
-
Size: S
TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
- Handlebar
-
- Grips
-
- Stem
-
Bontrager Comp, 31.8mm, 7 degree, 35mm length
- Headset
-
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
- Brake
-
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
- *Brake rotor
-
Size: S, M, L, XL
Shimano RT64, centerlock, 203mm
Size: S, M, L, XL
Shimano RT64, CentreLock, 203 mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 21.92 kg / 48.33 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
