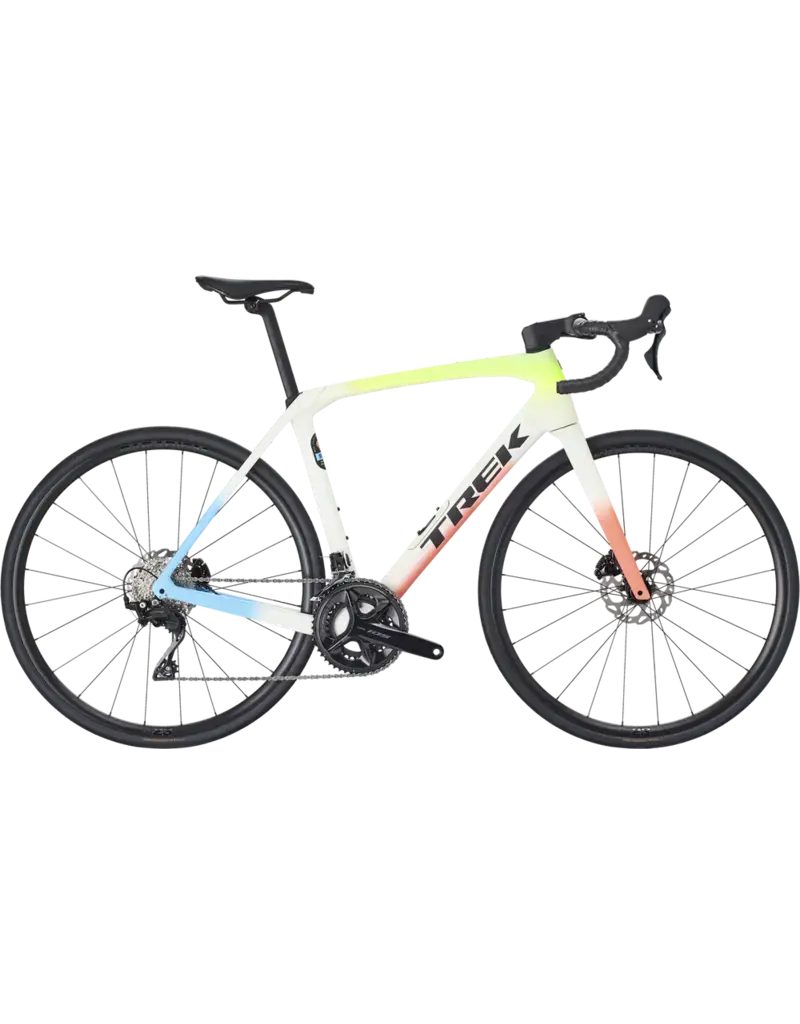

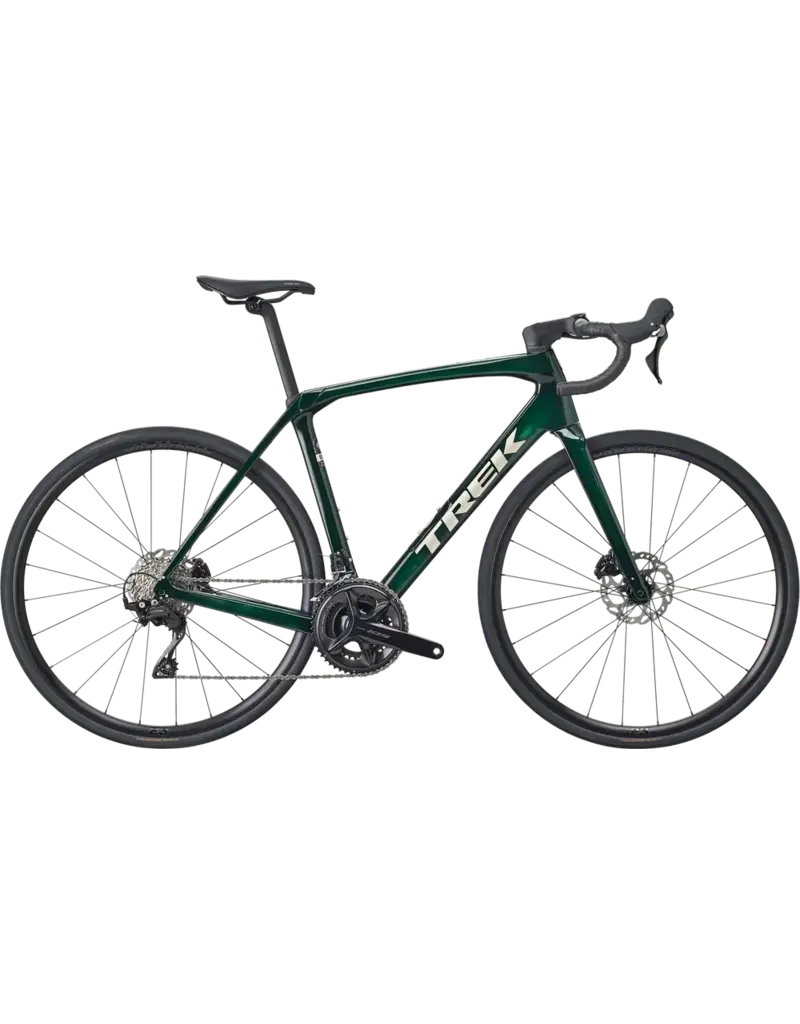

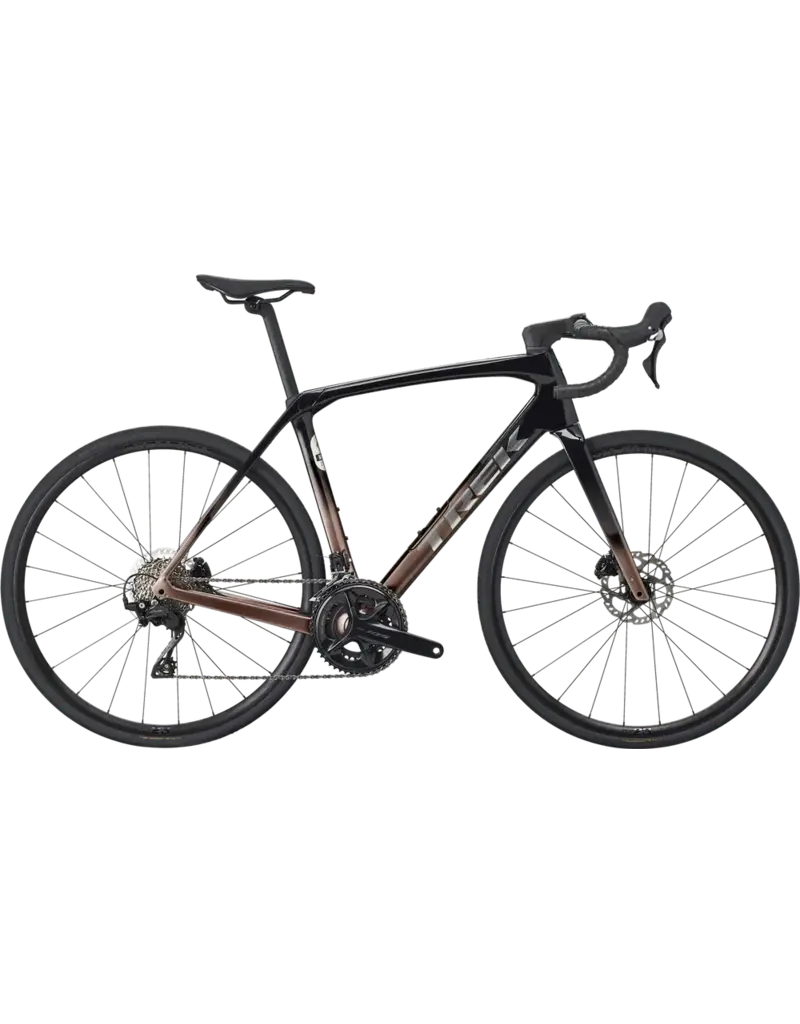

Domane SL 5 is ready to comfortably take on rough roads and long miles in comfort. The lightweight 500 Series OCLV Carbon frame has rear IsoSpeed to smooth out bumps in the road and reduce fatigue, and an integrated cockpit for a setup that looks as good as it feels. It features a reliable Shimano 105 drivetrain, and an easy-access internal storage compartment for stowing ride essentials. Plus, lofty 38mm tire clearance lets you take on any road from tarmac to light gravel.
- Frame
-
500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
- Frame with Fork
-
- Fork
-
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
- Weight
- 56 - 9.09 kg / 20.05 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Shifter
-
Shimano 105 R7120, 12 speed
- Front derailleur
-
Shimano 105 R7100, braze-on, down swing
- Rear derailleur
-
Shimano 105 R7100, 36T max cog
- *Crank
-
- Bottom bracket
-
- Cassette
-
Shimano 105 7101, 11-34, 12 speed
- Chain
-
Shimano SLX M7100, 12 speed
- Max chainring size
- 1x: 48T, 2x: 52/36
- Wheel front
-
Bontrager Paradigm Comp 23, Tubeless Ready, 23mm rim width, 100x12mm thru axle
- Wheel rear
-
Bontrager Paradigm 23, Tubeless Ready, 23mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
- Skewer front
-
- Skewer rear
-
- Tire
-
Bontrager Kwaremont Pro GR, tubeless ready, folding bead, dual compound, 120 tpi, 700x32mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- 38mm without fenders, 35mm with fenders (as measured, see manual for details)
- Saddle
-
- *Seatpost
-
- *Handlebar
-
- Handlebar tape
-
- *Stem
-
- Brake
-
Shimano 105 hydraulic disc, flat mount
- *Brake rotor
-
Size: 44, 47, 50, 52, 54, 56, 58
Shimano RT70, centerlock, 160mm
Size: 44, 47, 50, 52, 54, 56, 58, 60, 62
Shimano CL700, centerlock, 160mm
- Rotor size
- Max brake rotor sizes: 160mm front & rear
