| Availability: |
Out of stock |

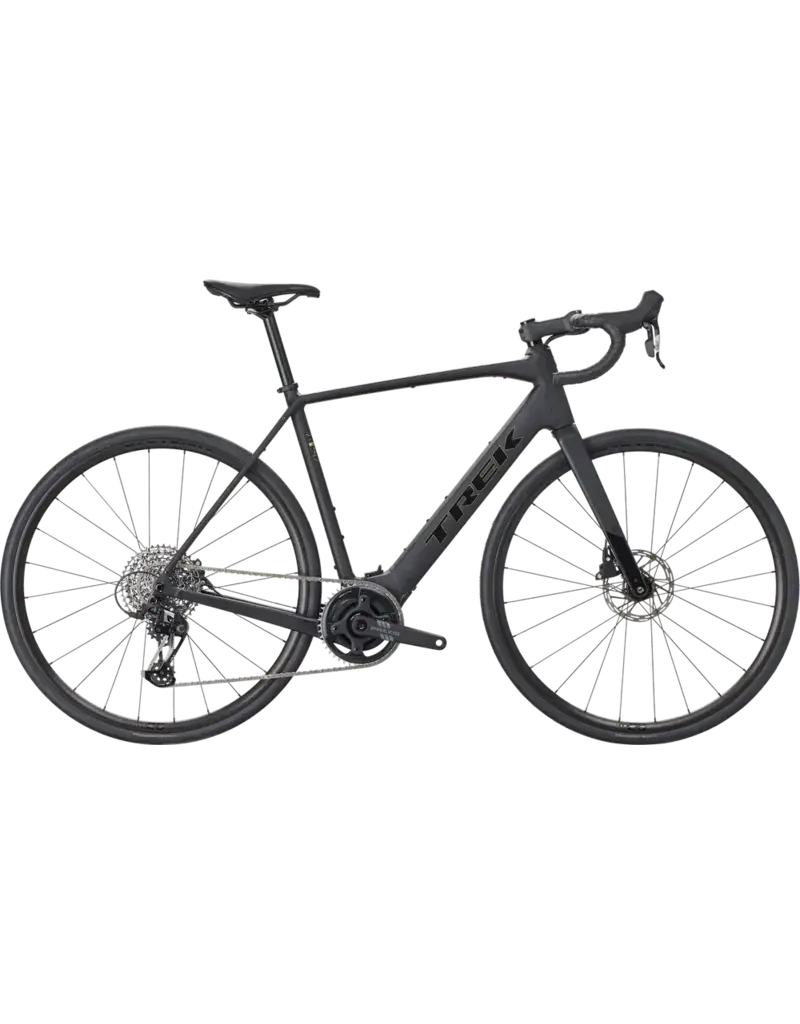

Domane+ ALR 5 is an aluminum electric road bike with a smooth, quiet, and natural-feeling boost. Its TQ HPR60 motor gives you plenty of support for long rides and big climbs, and pairs with a SRAM Apex 12-speed drivetrain for clean, consistent shifts.
- Frame
-
300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle
- Fork
-
Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle
- Weight
- ML - 14.39 kg / 31.73 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Battery
-
- Charger
-
- Controller
-
TQ color LED display with Bluetooth & ANT+ connectivity
- Computer
-
- Motor
-
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Shifter
-
- Rear derailleur
-
SRAM Apex XPLR, 44T max cog
- *Crank
-
Size: XS, S
Praxis Alloy, 165mm length
Size: M, ML
Praxis Alloy, 170mm length
Size: L, XL
Praxis Alloy, 172.5mm length
- Cassette
-
SRAM XPLR PG-1231, 11-44, 12 speed
- Chain
-
- Max chainring size
- 1x: 46T
- Hub front
-
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
- Skewer front
-
- Skewer rear
-
Bontrager Switch chamfered thru axle, removable lever
- Rim
-
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
- Spokes
-
14g stainless steel, black
- Tire
-
Bontrager Kwaremont Pro GR, tubeless ready, folding bead, dual compound, 120 tpi, 700x32mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- 40mm without fenders, 35mm with fenders
- Saddle
-
- Seatpost
-
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
- *Stem
-
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
- Brake
-
SRAM Apex D1 hydraulic disc, flat mount
- Brake rotor
-
SRAM Paceline, rounded, centerlock, 160mm
- Brake lever
-
- Rotor size
- Max brake rotor sizes: 160mm front & rear
