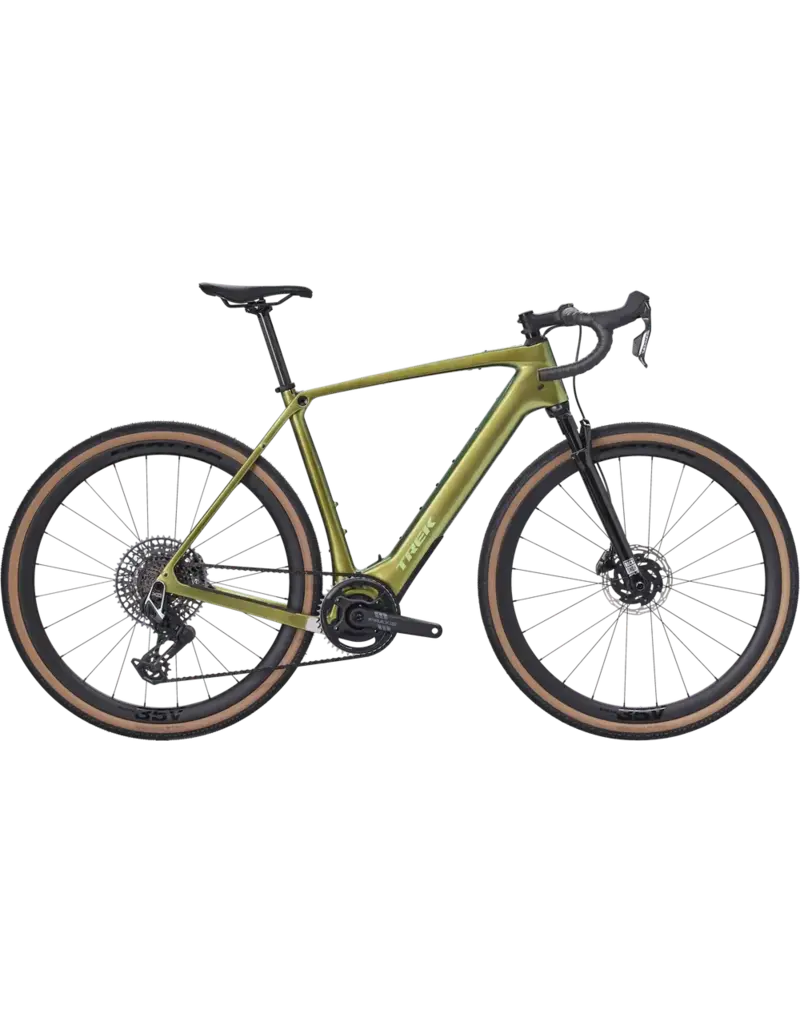

Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most far-out adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth boost, while a 40mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS 12-speed drivetrain delivers smooth, wireless shifting, and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seatpost damp vibrations while keeping the weight down.
- Frame
-
500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
- Fork
-
RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel
- Weight
- ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Battery
-
- Charger
-
- Controller
-
TQ color LED display with Bluetooth & ANT+ connectivity
- Motor
-
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Shifter
-
- Rear derailleur
-
SRAM X0 Eagle AXS, T-Type
- *Crank
-
Size: S
Praxis Alloy, 165mm length
Size: M, ML
Praxis Alloy, 170mm length
Size: L, XL
Praxis Alloy, 172.5mm length
- Cassette
-
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
- Chain
-
SRAM X0 Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 44T
- Wheel front
-
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
- Wheel rear
-
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
- Skewer rear
-
- Tire
-
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Brake rotor
-
SRAM CenterLine X, centerlock, round edge, 160mm
- Rotor size
- Max brake rotor sizes: 180mm front & rear
