| Availability: |
Out of stock |

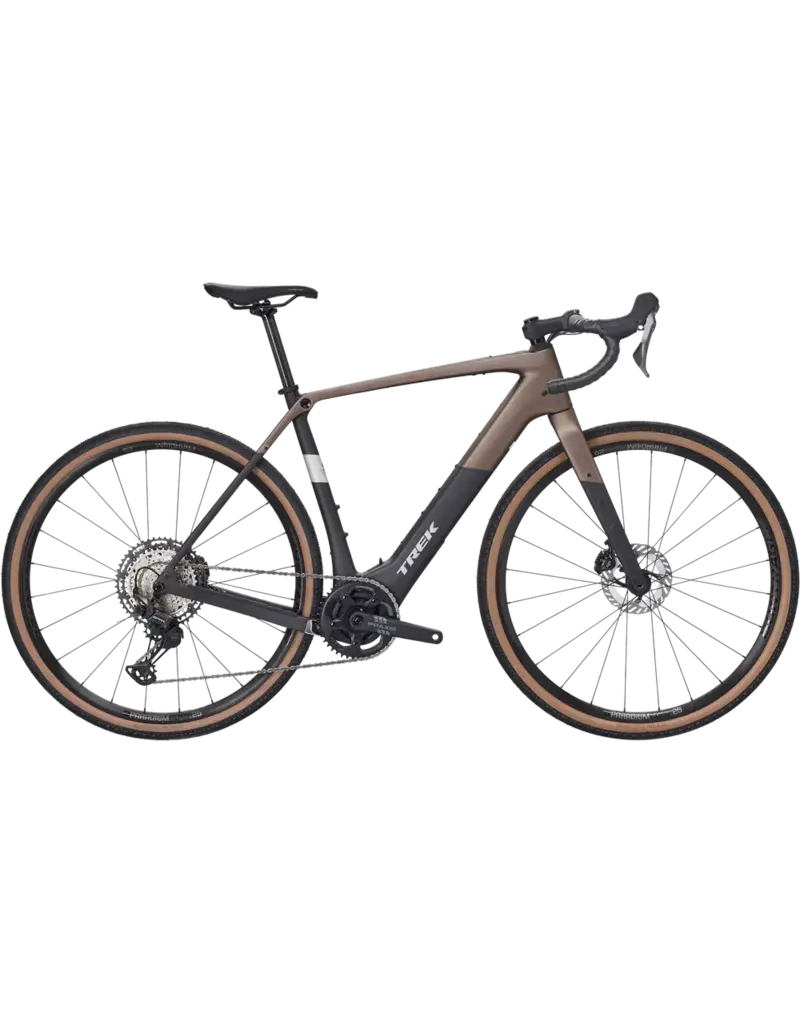

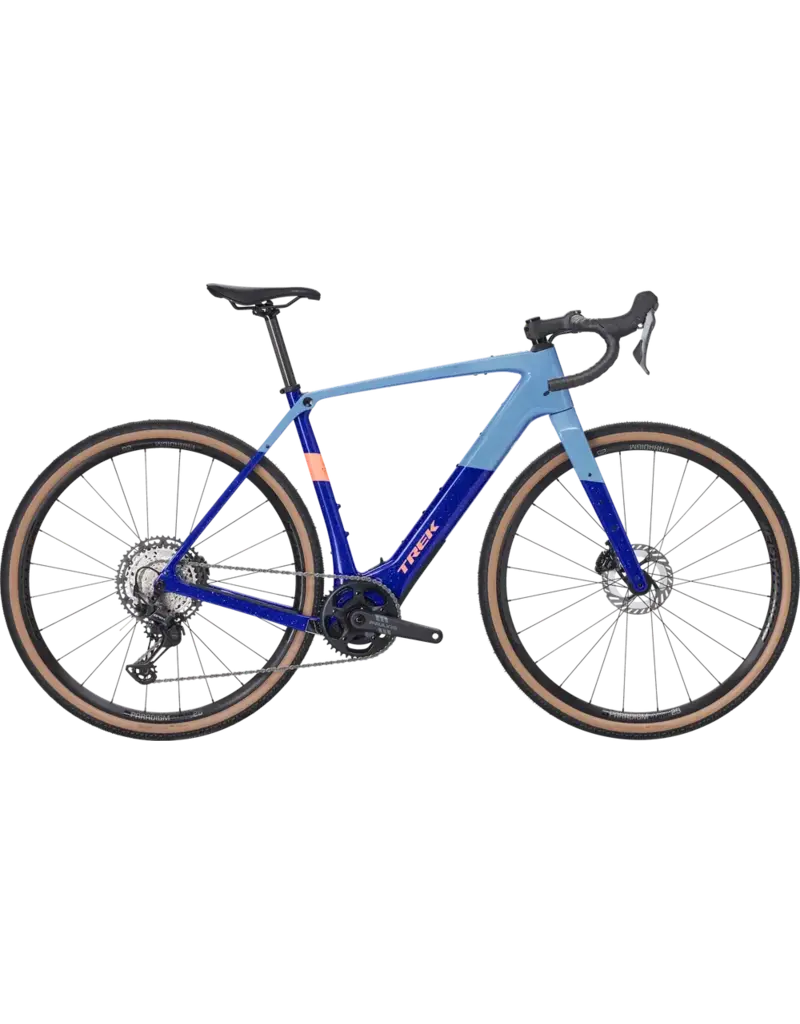

Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost and a 360Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting, and endurance geometry to keep you comfortable for the long haul.
- Frame
-
500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
- Fork
-
Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
- Weight
- ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Battery
-
- Charger
-
- Computer
-
- Motor
-
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Shifter
-
Shimano GRX RX820, 12 speed
- Rear derailleur
-
Shimano GRX RX822, 51T max cog
- *Crank
-
Size: XS, S
Praxis Alloy, 165mm length
Size: M, ML
Praxis Alloy, 170mm length
Size: L, XL
Praxis Alloy, 172.5mm length
- Cassette
-
- Chain
-
- Max chainring size
- 1x: 44T
- Wheel front
-
- Wheel rear
-
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle
- Skewer front
-
- Skewer rear
-
- Tire
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
- Brake rotor
-
- Brake lever
-
Shimano GRX RX820, 12 speed
- Rotor size
- Max brake rotor sizes: 180mm front & rear
