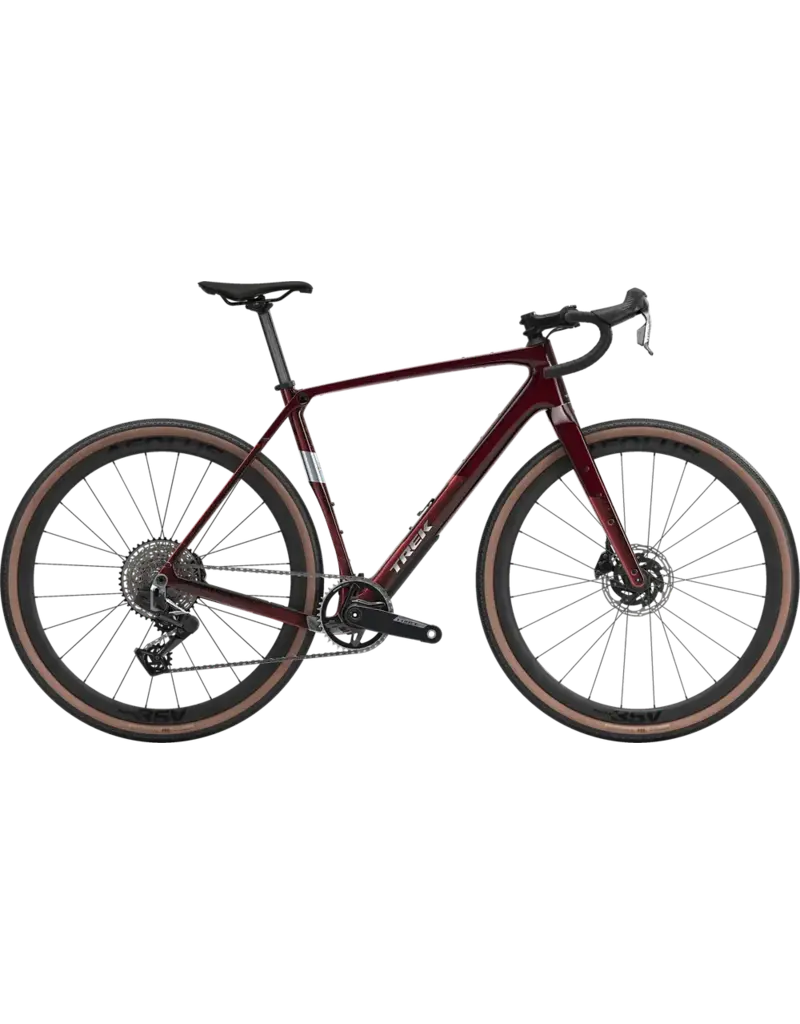

Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts, and clearance for up to 50mm tires (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations to help you float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seatpost, and a wireless SRAM Force AXS D2 drivetrain.
- Frame
-
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
- Fork
-
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
- Weight
- ML - 9.33 kg / 20.57 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Battery
-
SRAM AXS battery pack (with charger)
- Shifter
-
- Rear derailleur
-
SRAM Force XPLR AXS, 46T max cog
- *Crank
-
Size: XS, S
SRAM Force XPLR, 40T, DUB Wide, 165mm length
Size: M
SRAM Force XPLR, 40T, DUB Wide, 170mm length
Size: ML, L
SRAM Force XPLR, 40T, DUB Wide, 172.5mm length
Size: XL
SRAM Force XPLR, 40T, DUB Wide, 175mm length
- Bottom bracket
-
SRAM DUB Wide, T47 threaded, internal bearing
- Cassette
-
SRAM Force XPLR XG-1371, 10-46, 13 speed
- Chain
-
SRAM Force E1, 12/13 speed
- Max chainring size
- 1x:44 2x: 46/30
- Wheel front
-
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
- Wheel rear
-
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
- Skewer front
-
- Skewer rear
-
- Tire
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: XS
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Brake
-
SRAM Force AXS hydraulic disc, flat mount
- *Brake rotor
-
Size: XS, S, M, ML, L, XL
SRAM CenterLine X, centerlock, round edge, 160mm
Size: XS, S, M, ML, L, XL
SRAM Paceline X, rounded, centerlock, 160mm
- Rotor size
- Max brake rotor sizes: 180mm front & rear
