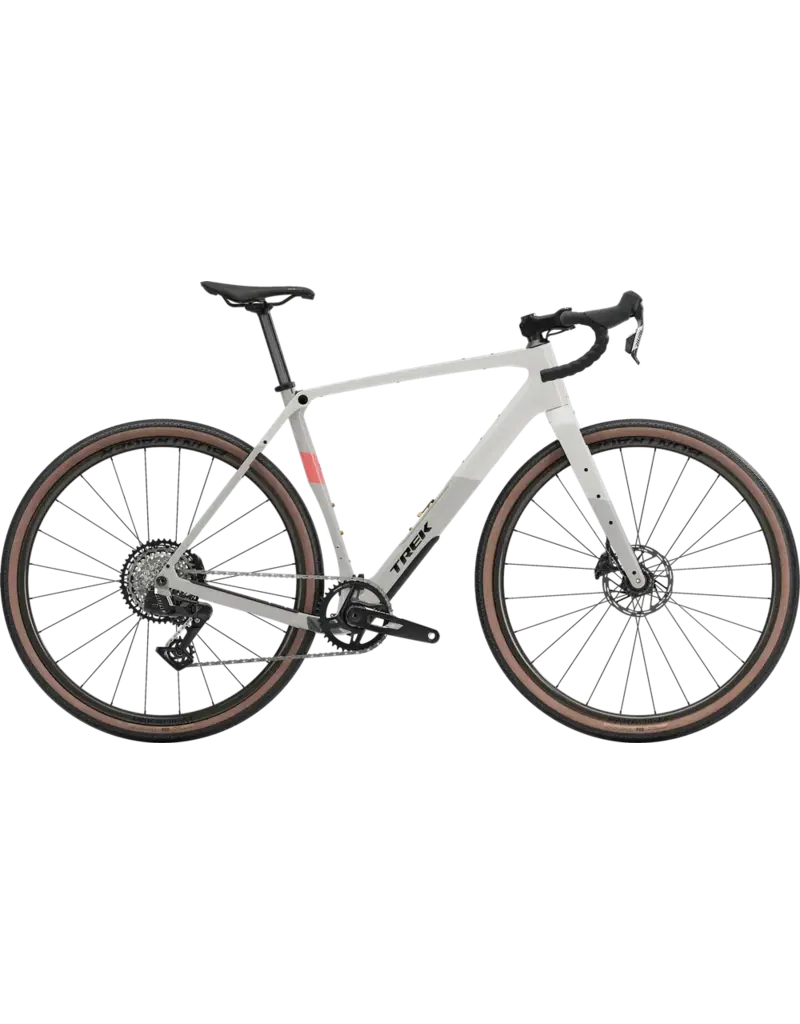

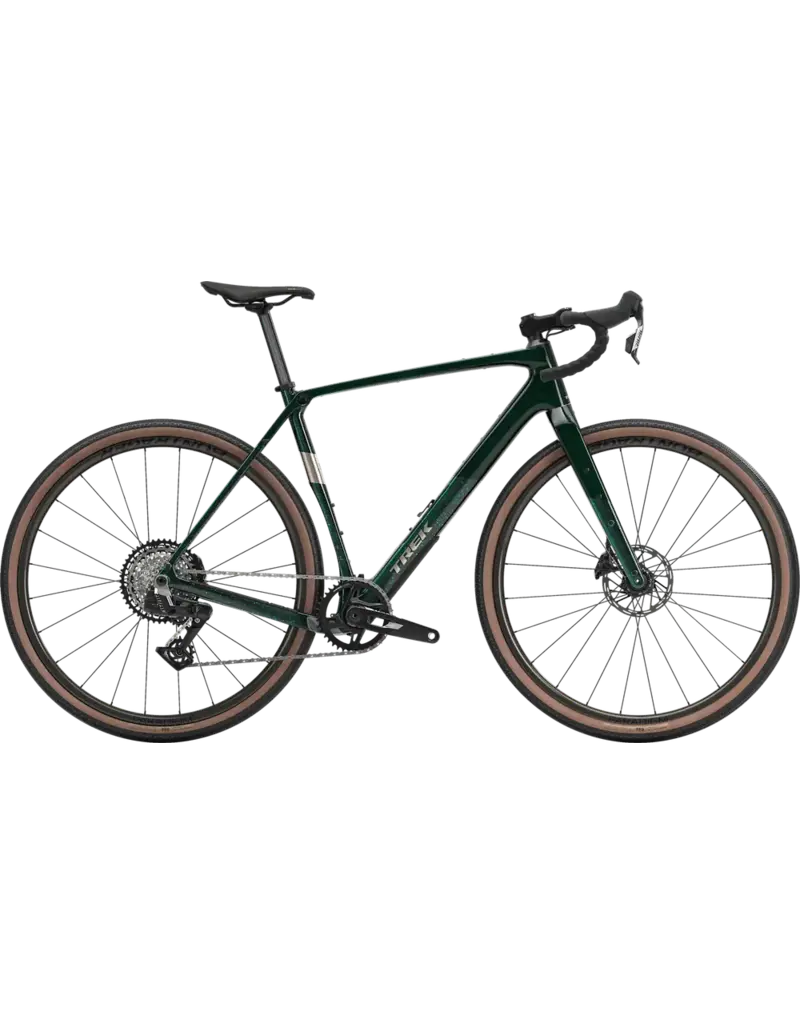

Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike ready for far-out adventures. Its lightweight carbon frame is designed with comfort-focused Gravel Endurance geometry, clearance for beefy 50mm tires (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed frame technology helps soak up jarring road vibrations, helping you float over chatter and potholes. It's ready to cut loose with a SRAM Rival AXS wireless 12-speed groupset.
- rame
-
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
- Fork
-
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
- Weight
- ML - 9.49 kg / 20.93 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Battery
-
SRAM AXS battery pack (with charger)
- Shifter
-
- Rear derailleur
-
SRAM Rival XPLR AXS, 46T max cog
- *Crank
-
Size: XS, S
SRAM Rival XPLR, 40T, DUB Wide, 165mm length
Size: M
SRAM Rival XPLR, 40T, DUB Wide, 170mm length
Size: ML, L
SRAM Rival XPLR, 40T, DUB Wide, 172.5mm length
Size: XL
SRAM Rival XPLR, 40T, DUB Wide, 175mm length
- Bottom bracket
-
SRAM DUB Wide, T47 threaded, internal bearing
- Cassette
-
Sram Rival XPLR XG-1351, 10-46, 13 speed
- Chain
-
SRAM Rival E1, 12/13 speed
- Max chainring size
- 1x:44 2x: 46/30
- Wheel front
-
- Wheel rear
-
- Skewer front
-
- Skewer rear
-
- Tire
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: XS
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Brake rotor
-
SRAM Paceline, rounded, centerlock, 160mm
- Rotor size
- Max brake rotor sizes: 180mm front & rear
