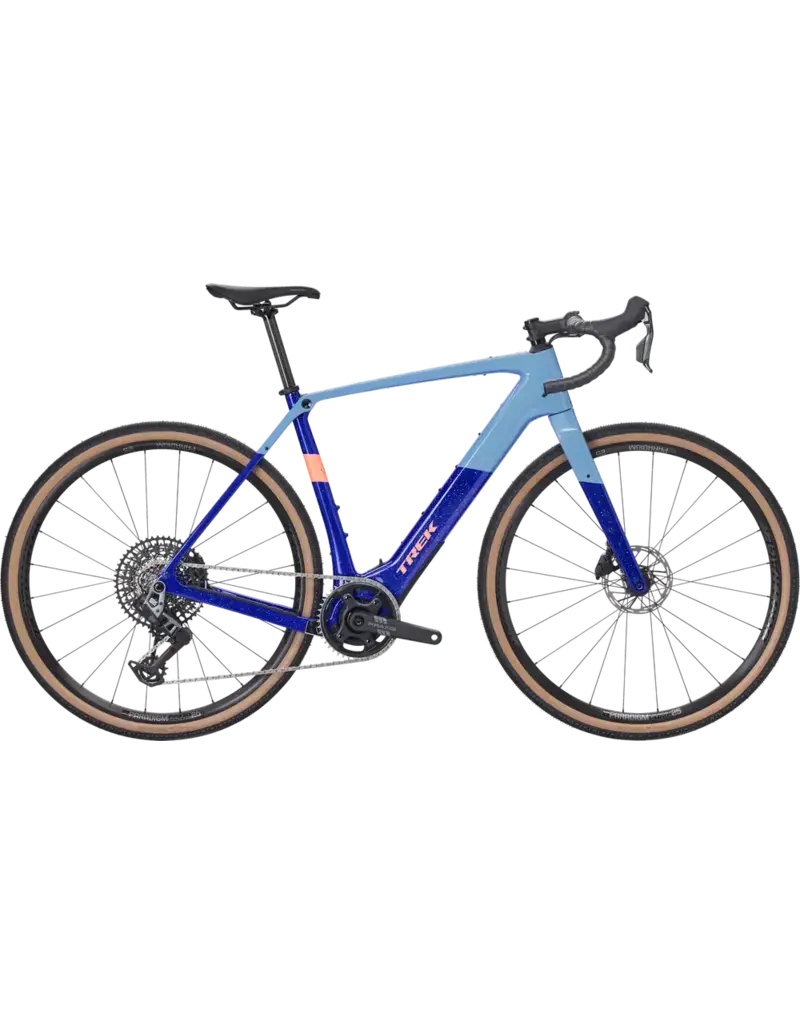

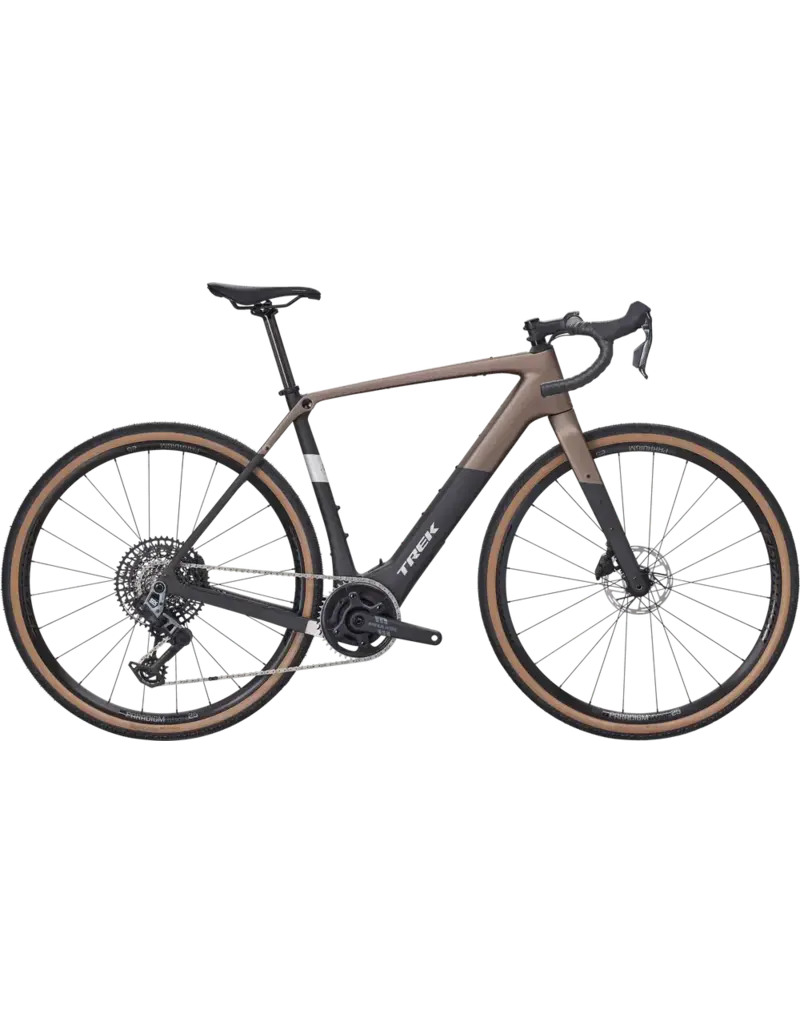

Checkpoint+ SL 6 AXS is an electric gravel bike built for the long haul and then some. The TQ HPR60 motor gives you a smooth, quiet boost that feels like a steady tailwind on every climb, while a 360Wh battery keeps you rolling as the miles add up. Its OCLV Carbon frame is ready for adventure, paired with durable alloy wheels and a 12-speed SRAM GX AXS drivetrain that shifts clean, even when the terrain gets rough.
- Frame
-
500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
- Fork
-
- Weight
- ML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Battery
-
- Charger
-
- Computer
-
- Motor
-
TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
- E-bike Classification
- Class 1
- Max assist speed
- 32 km/h
- Shifter
-
- Rear derailleur
-
SRAM GX Eagle AXS, T-Type
- *Crank
-
Size: XS, S
Praxis Alloy, 165mm length
Size: M, ML
Praxis Alloy, 170mm length
Size: L, XL
Praxis Alloy, 172.5mm length
- Cassette
-
SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
- Chain
-
SRAM GX Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 44T
- Wheel front
-
- Wheel rear
-
- Skewer front
-
- Skewer rear
-
- Tire
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: XS
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Brake rotor
-
SRAM Paceline, rounded, centerlock, 160mm
- Rotor size
- Max brake rotor sizes: 180mm front & rear
