| Availability: |
Out of stock |

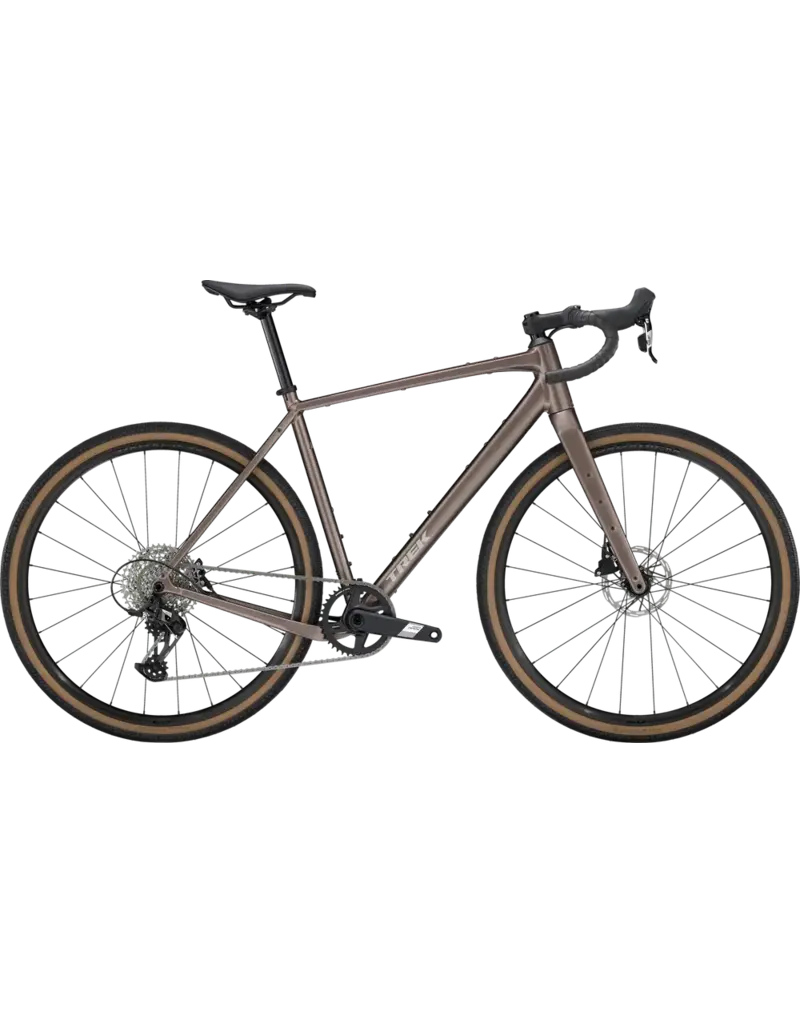

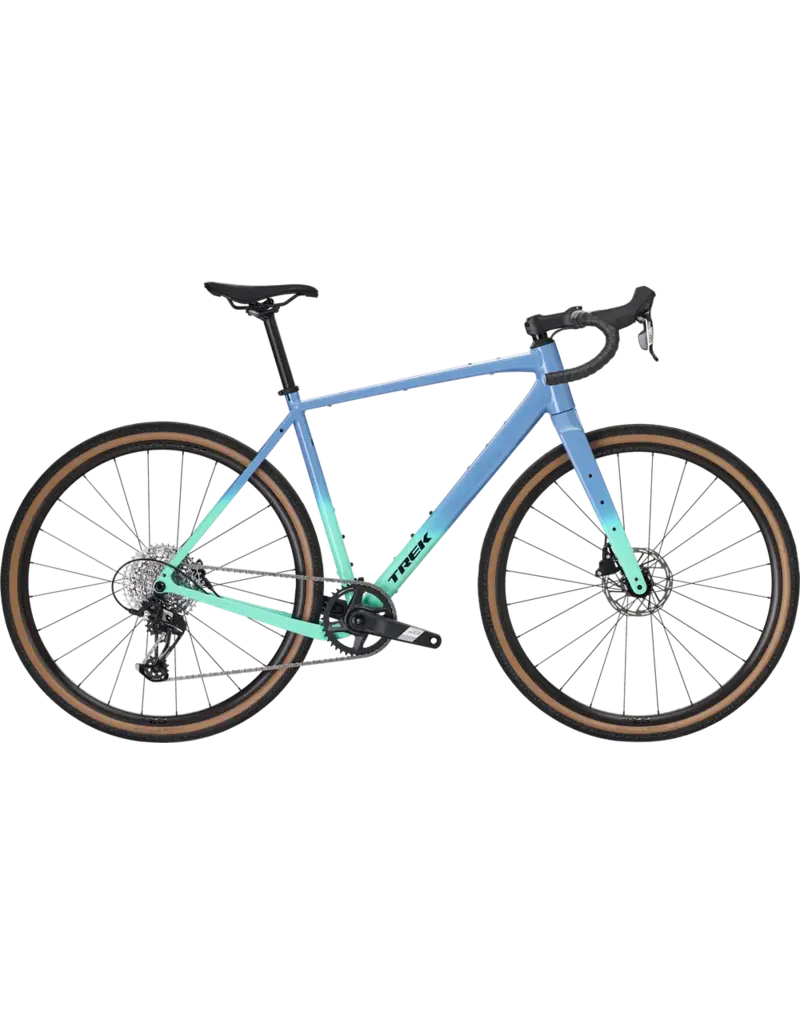

Checkpoint ALR 5 is an adventure-ready alloy gravel bike that's kitted with quality parts for long, rugged, miles on anything from chunky gravel to smooth pavement. A wealth of features like loads of mounts for bags and racks, and a SRAM Apex 1x12 drivetrain makes this Checkpoint ready to customize for your next adventure.
- Frame
-
300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle
- Fork
-
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
- Weight
- ML - 9.87 kg / 21.76 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Shifter
-
- Rear derailleur
-
SRAM Apex XPLR, 44T max cog
- *Crank
-
Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165mm length
Size: M, ML
SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: L, XL
SRAM Apex 1, 40T, DUB Wide, 172.5mm length
- Bottom bracket
-
SRAM DUB Wide, T47 threaded, internal bearing
- Cassette
-
SRAM XPLR PG-1231, 11-44, 12 speed
- Chain
-
- Max chainring size
- 1x:44 2x: 46/30
- Hub front
-
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
- Skewer front
-
- Hub rear
-
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
- Skewer rear
-
- Rim
-
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
- Spokes
-
14g stainless steel, black
- Tire
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
- Brake
-
SRAM Apex D1 hydraulic disc, flat mount
- Brake rotor
-
SRAM Paceline, rounded, centerlock, 160mm
- Brake lever
-
- Rotor size
- Max brake rotor sizes 180mm Front & Rear
