| Availability: |
Out of stock |

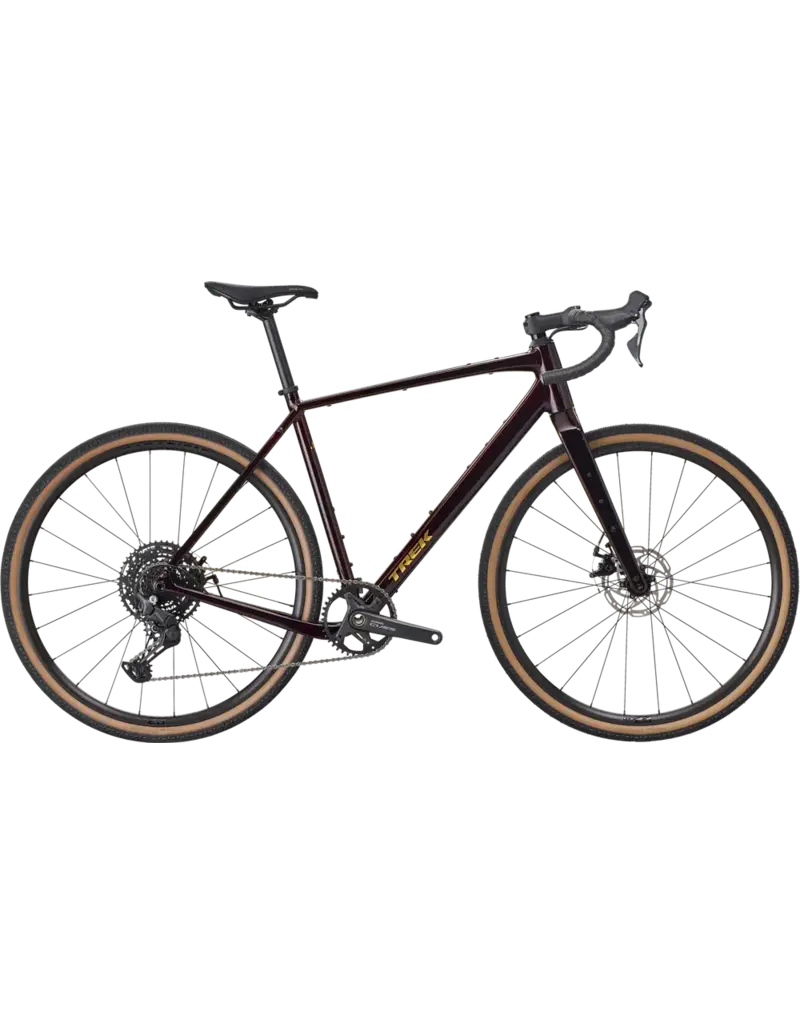

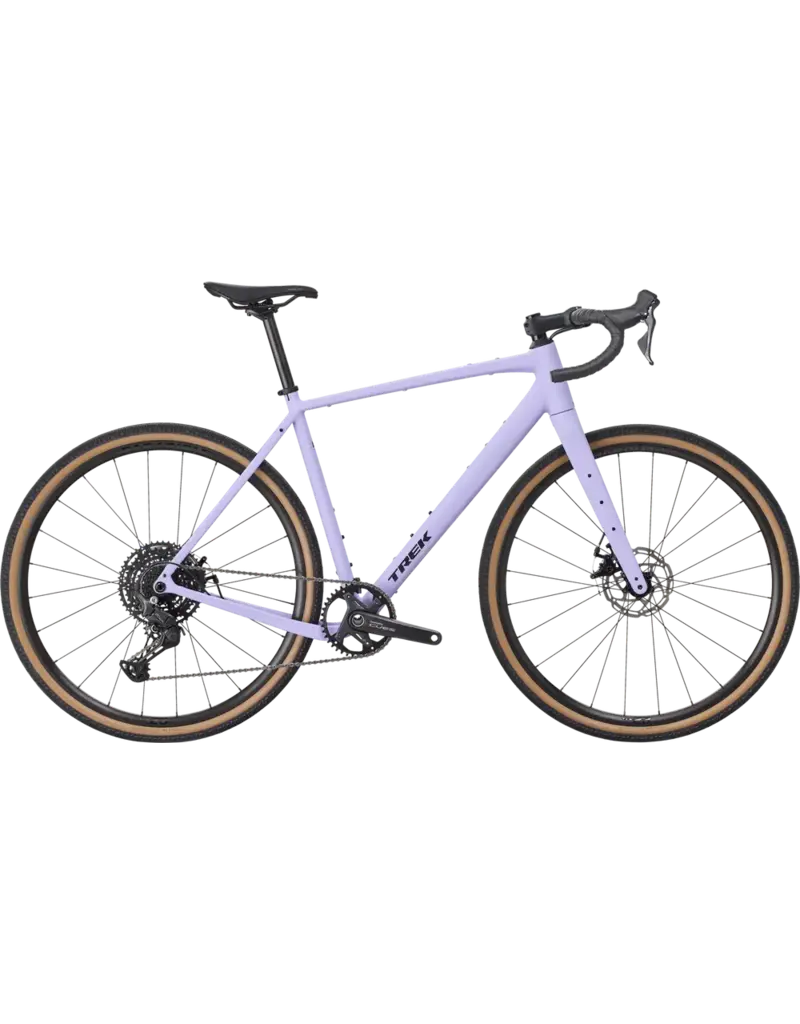

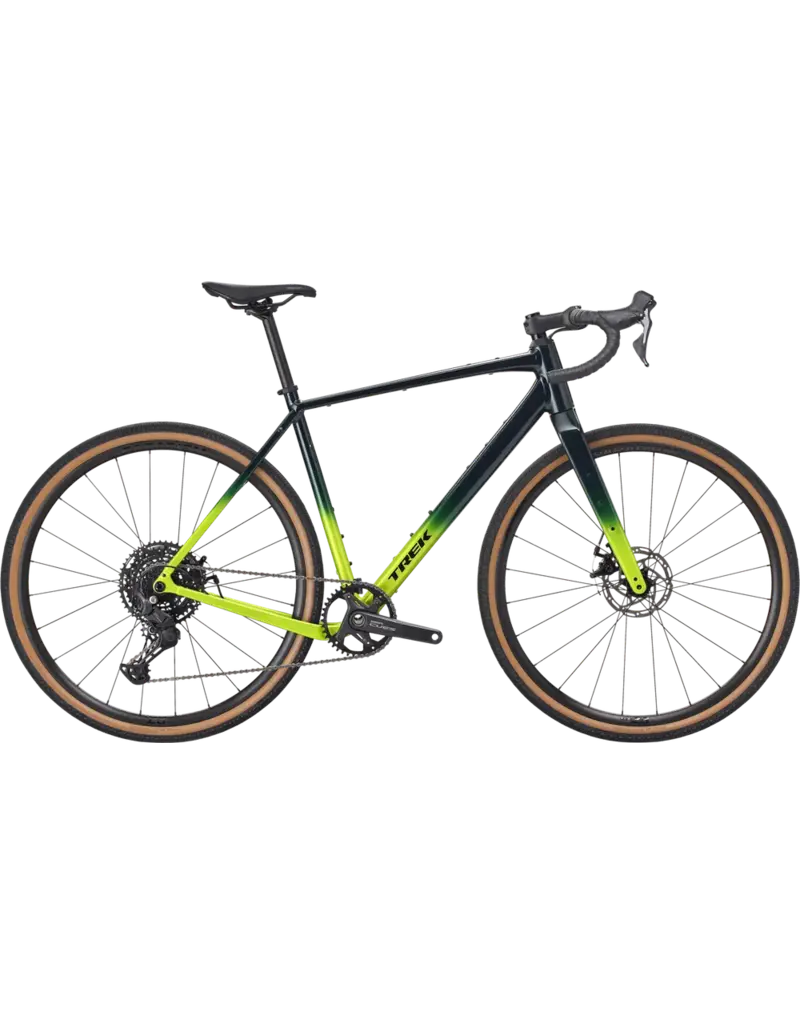

Checkpoint ALR 3 is the best value gravel bike in the lineup. Kitted out with a 300 Series Alpha Aluminum frame, Checkpoint ALR 3 is just as responsive on chunky gravel roads as it is smooth on the tarmac. Tubeless-ready wheels help fight punctures in the rough while a 2x9-speed Shimano groupset and mechanical disc brakes balance budget with reliability.
- Frame
-
300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle
- Fork
-
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
- Weight
- ML - 10.41 kg / 22.96 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Shifter
-
Shimano CUES 10 Speed Right STU303010R
- Rear derailleur
-
- *Crank
-
Size: XS, S
Shimano CUES FCU60301, 40T ring, 165mm length
Size: M, ML
Shimano CUES FCU60301, 40T ring, 170mm length
Size: L, XL
Shimano CUES FCU60301, 40T ring, 172.5mm length
- Bottom bracket
-
- Cassette
-
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
- Chain
-
- Max chainring size
- 1x:44 2x: 46/30
- Hub front
-
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
- Skewer front
-
- Hub rear
-
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
- Skewer rear
-
- Rim
-
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
- Spokes
-
14g stainless steel, black
- Tire
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
- *Brake
-
Size: XS, S, M, ML, L, XL
Shimano CUES U3030
Size: XS, S, M, ML, L, XL
Tektro C550 mechanical disc brake, dual piston, flat mount 0 offset
Size: XS, S, M, ML, L, XL
Tektro C550 mechanical disc brake, dual piston, flat mount, No adaptor.
- Brake rotor
-
Tektro, centerlock, 160mm
- Rotor size
- Max brake rotor sizes: 180mm front & rear
