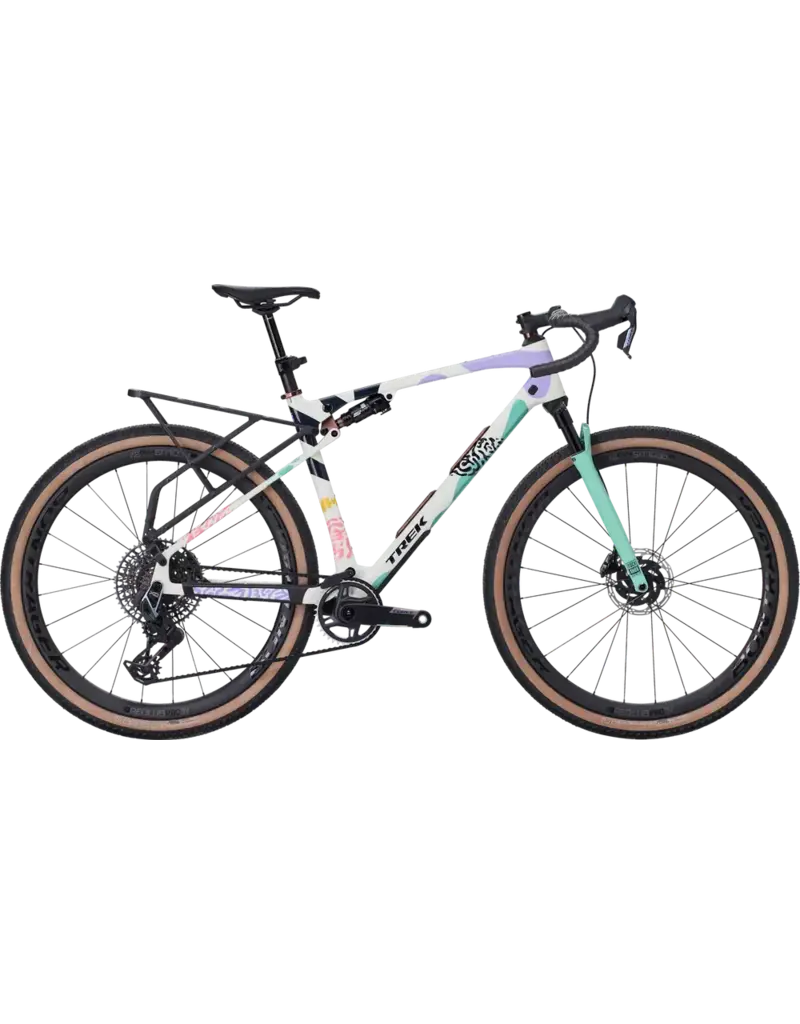

CheckOUT SL 7 is a full-suspension gravel bike built for exploring rowdy roads, singletrack, and anything else you throw its way. Its carbon frame delivers 55mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60mm of travel. It gets upgrades where they matter most, like Bontrager Aeolus Pro 3V carbon wheels, a SRAM Force AXS E1 wireless 12-speed drivetrain, and a wireless RockShox Reverb AXS dropper post.
- Frame
-
500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel
- Fork
-
RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel
- Shock
-
RockShox SIDluxe Ultimate 3P, 170mmx27.5mm
- Weight
- ML - 11.28 kg / 24.87 lbs (with TLR sealant, no tubes, excluding rear rack)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Battery
-
SRAM AXS battery pack (with charger)
- Shifter
-
- Rear derailleur
-
SRAM X0 Eagle AXS, T-Type
- *Crank
-
Size: S
Sram Force 1 XPLR E1, 38T, DUB wide, 165mm length
Size: M, ML
Sram Force 1 XPLR E1, 38T, DUB wide, 170mm length
Size: L, XL
Sram Force 1 XPLR E1, 38T, DUB wide, 172.5mm length
- Bottom bracket
-
SRAM DUB Wide, T47 threaded, internal bearing
- Cassette
-
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
- Chain
-
SRAM X0 Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 38T
- Wheel front
-
- Wheel rear
-
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 142x12mm thru axle
- Skewer rear
-
- Tire
-
Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- 56mm/2.20" (as measured, see manual for details)
- Saddle
-
- Seatpost
-
RockShox Reverb AXS, 100mm travel, wireless, 31.6mm, 337mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: S, M
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: ML, L
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: XL
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
- Brake rotor
-
SRAM Paceline X, rounded, centerlock, 160mm
- Rotor size
- Max brake rotor sizes: 180mm front & rear
