| Availability: |
Out of stock |

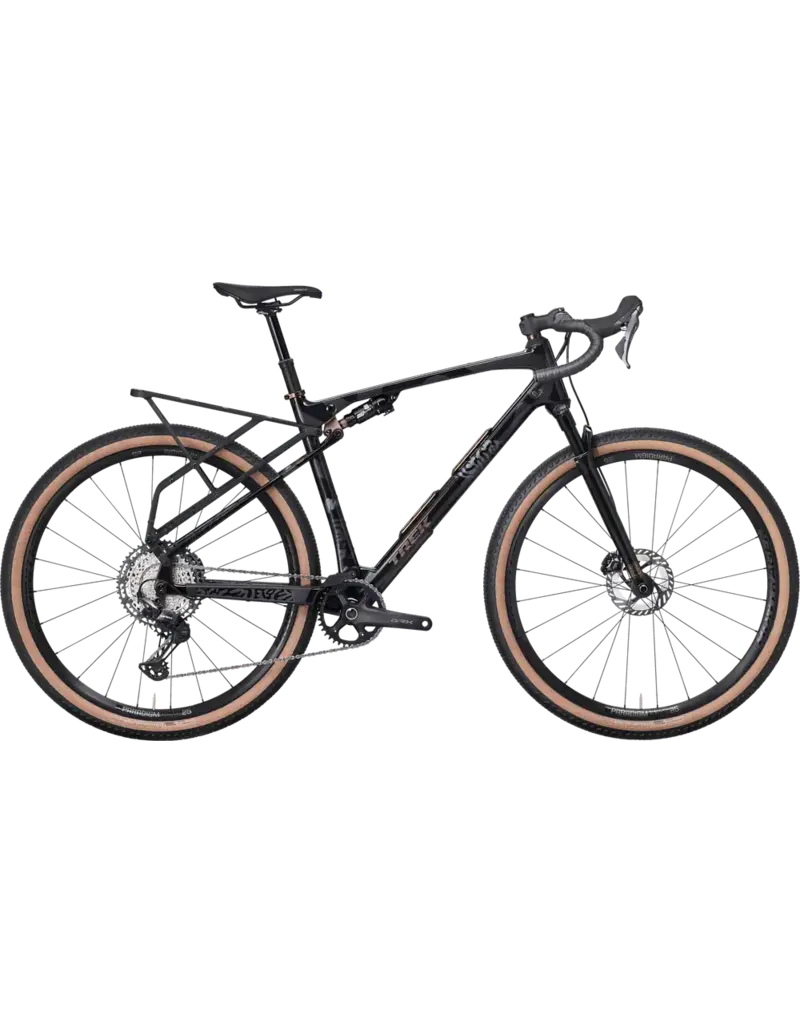

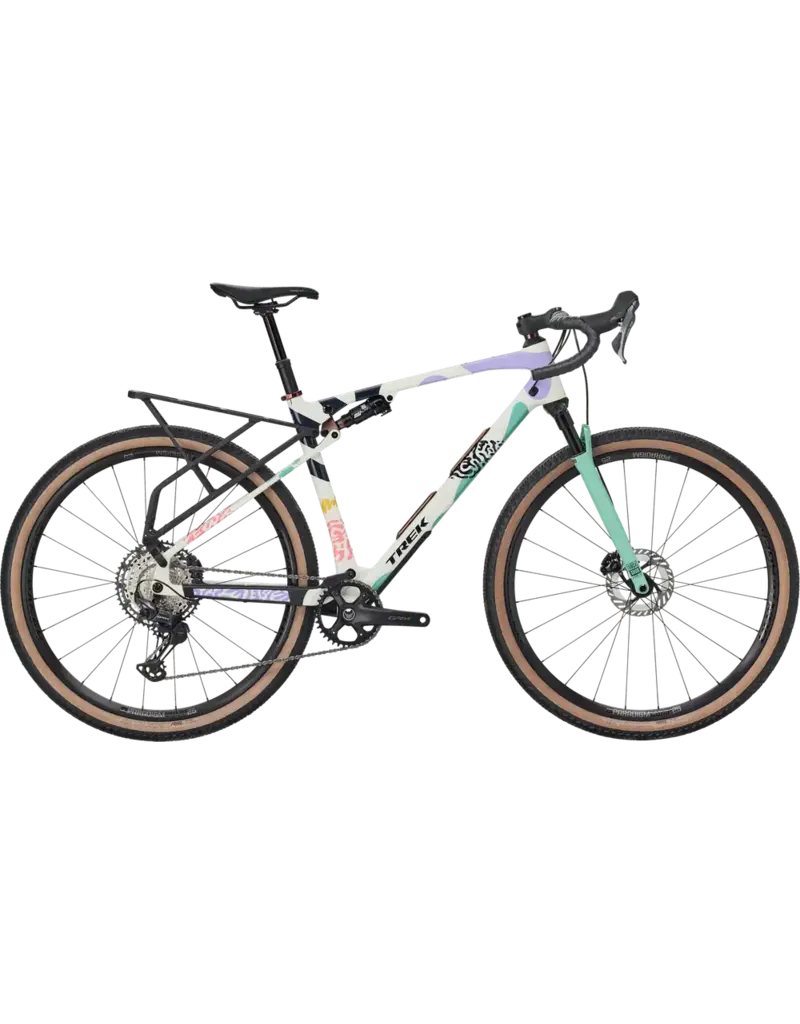

CheckOUT SL 5 is an adventure-ready full suspension gravel bike for getting way, way out there. Its carbon frame delivers 55mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain, and TranzX dropper post.
- Frame
-
500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel
- Fork
-
RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel
- Shock
-
RockShox SIDluxe Ultimate 3P, 170mmx27.5mm
- Weight
- ML - 11.97 kg / 26.39 lbs (with TLR sealant, no tubes, excluding rear rack)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Shifter
-
Shimano GRX RX820, 12 speed
- Rear derailleur
-
Shimano GRX RX822, 51T max cog
- *Crank
-
Size: S
Shimano GRX RX610, 38T, 160mm length
Size: M, ML
Shimano GRX RX610, 38T, 170mm length
Size: L, XL
Shimano GRX RX610, 38T, 172.5mm length
- Bottom bracket
-
- Cassette
-
Shimano XT M8200, 10-51, 12 speed
- Chain
-
- Max chainring size
- 1x: 38T
- Wheel front
-
- Wheel rear
-
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle
- Skewer rear
-
- Tire
-
Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x55mm
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tire size
- 56mm/2.20" (as measured, see manual for details)
- Saddle
-
- Seatpost
-
TranzX JD-YSI36, 100mm travel, internal routing, 31.6mm, 328mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
- Brake rotor
-
- Rotor size
- Max brake rotor sizes: 180mm front & rear
