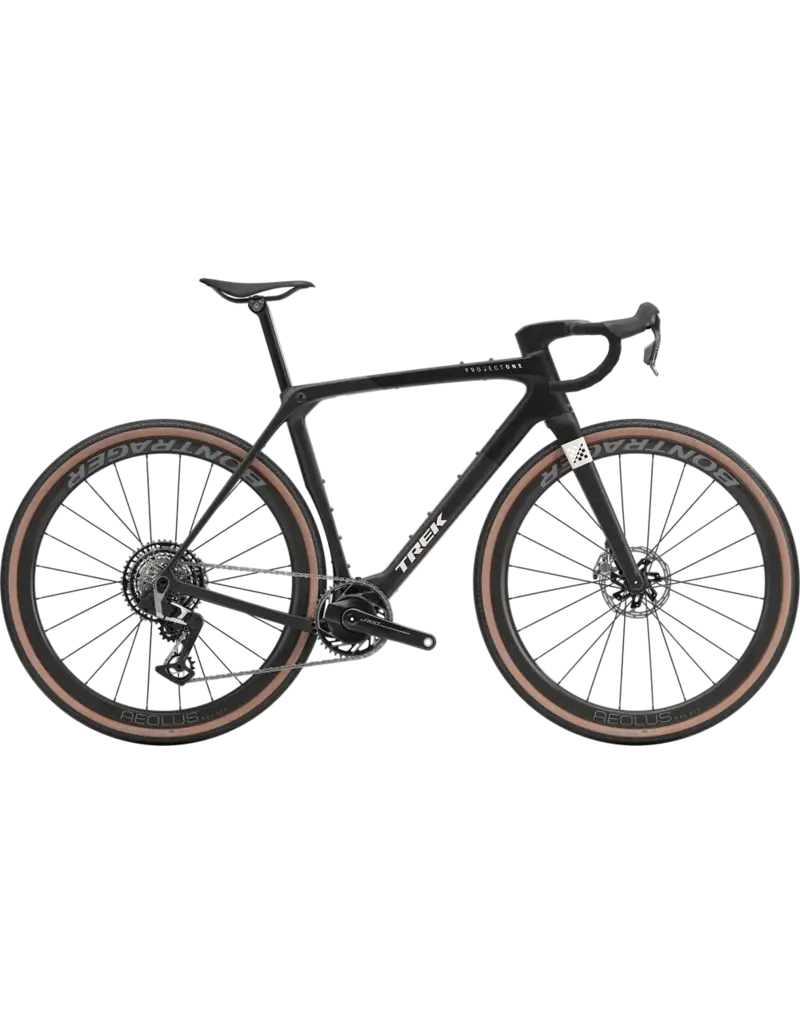

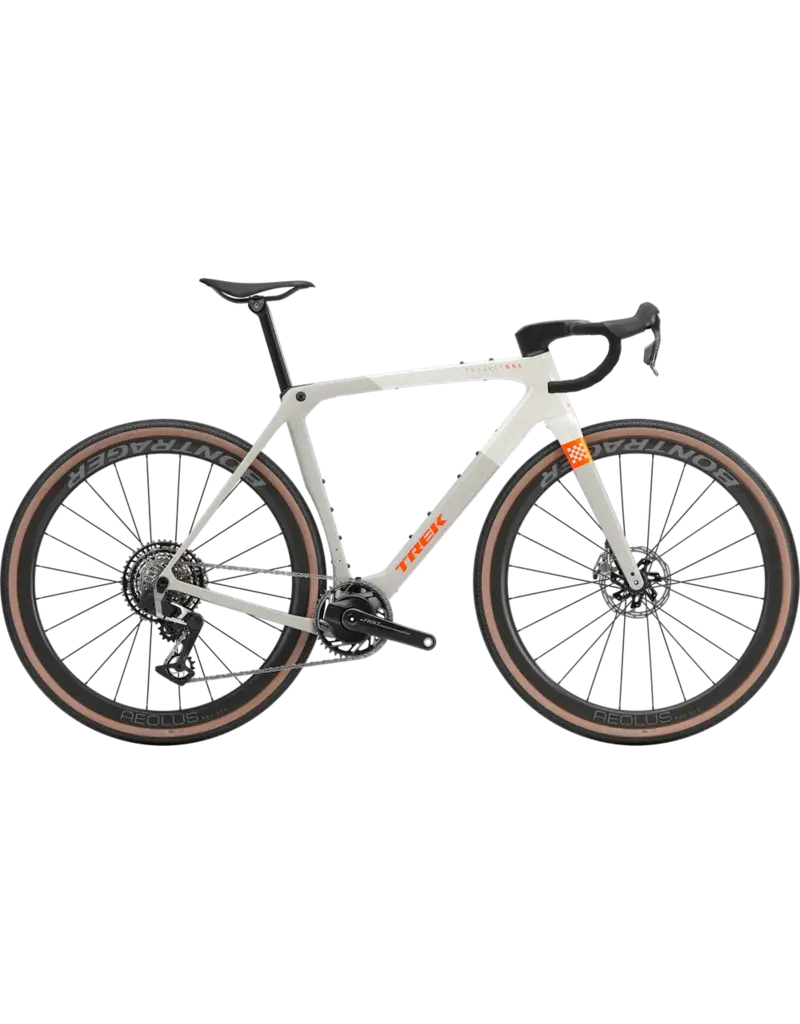

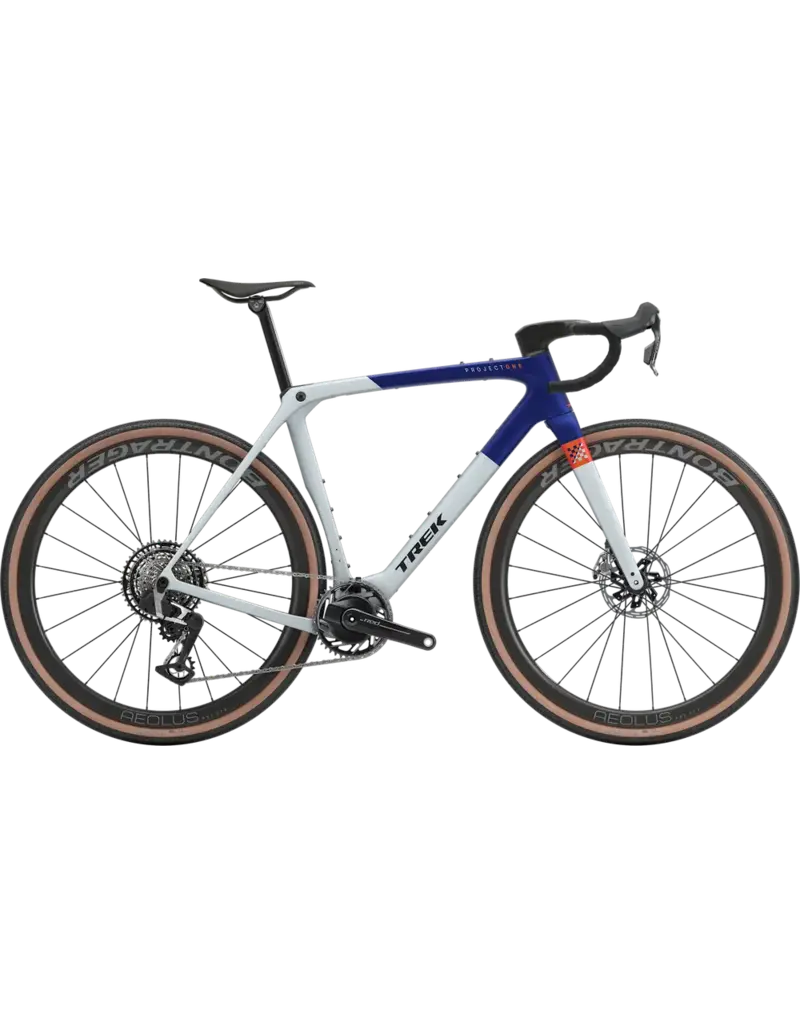

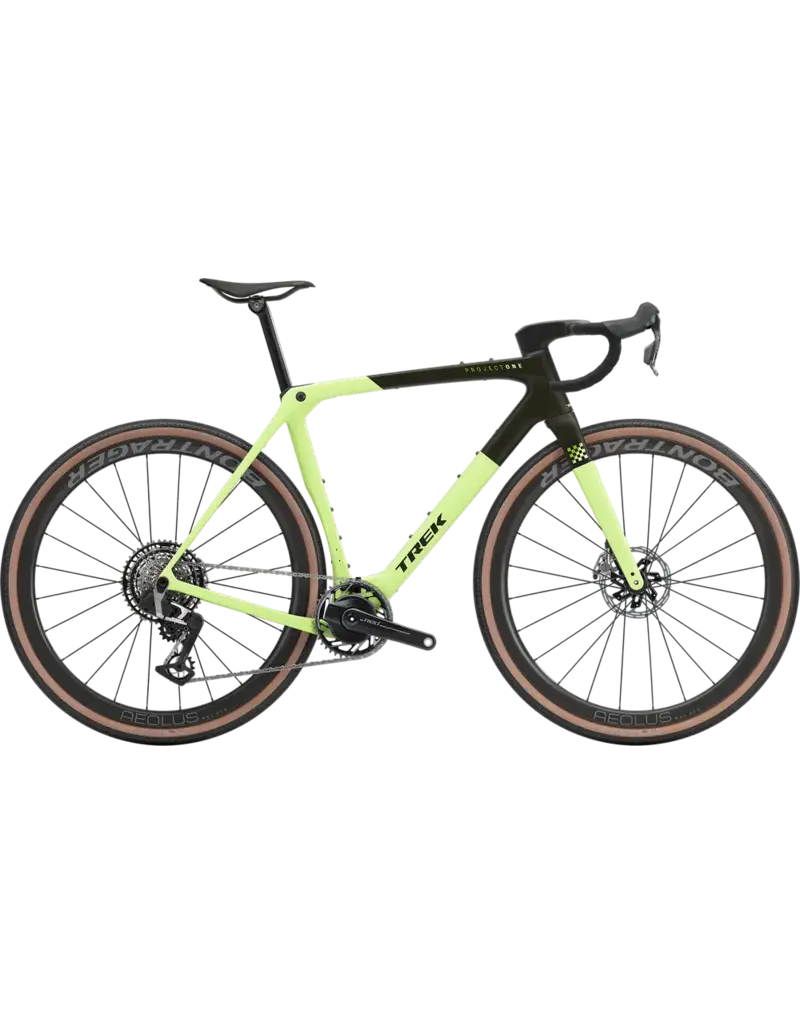

Trek Checkmate SLR 9 AXS 2026

Home / Trek Checkmate SLR 9 AXS 2026

Information

Availability:

Out of stock

Checkmate SLR 9 AXS is our fastest and lightest gravel race bike, built to chase podiums down rowdy roads. It combines a lightweight aero design with IsoSpeed road-smoothing tech and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. To keep you at the front of the pack, it's equipped with top-tier parts, like carbon wheels and SRAM's latest ergonomic RED AXS XPLR wireless drivetrain.

Frame: 800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
Fork: Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle

Weight: ML - 7.55 kg / 16.65 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Battery: SRAM AXS battery pack (with charger)

Shifter: SRAM RED AXS E1
Rear derailleur: SRAM RED XPLR eTap AXS, 46T max cog
*Crank: Size: XS, S

SRAM RED XPLR, power meter, 42T, DUB wide, 165mm length

Size: M

SRAM RED XPLR, power meter, 42T, DUB wide, 170mm length

Size: ML, L

SRAM RED XPLR, power meter, 42T, DUB wide, 172.5mm length

Size: XL

SRAM RED XPLR, power meter, 42T, DUB wide, 175mm length
*Bottom bracket: Size: XS, S, M, ML, L, XL

SRAM DUB, T47 threaded, internal bearing

Size: XS, S, M, ML, L, XL

SRAM DUB Wide, T47 threaded, internal bearing
Cassette: SRAM XG-1391, 10-46T, 13 speed
Chain: SRAM RED E1, 12/13 speed
Max chainring size: See service manual
