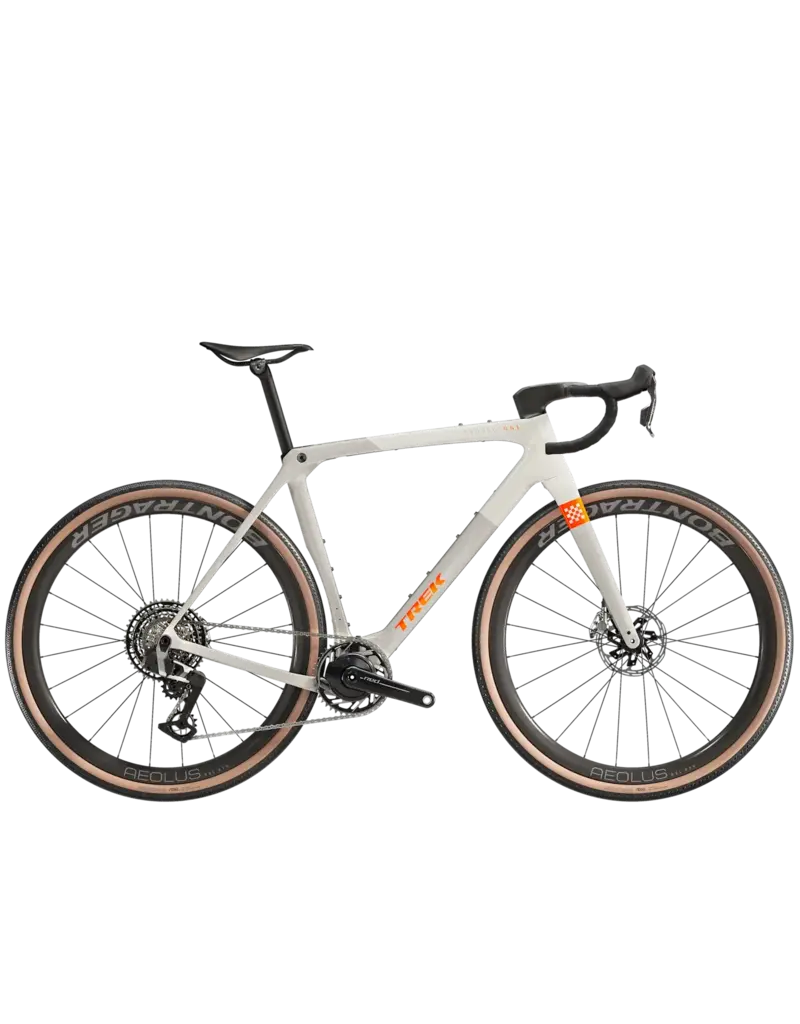

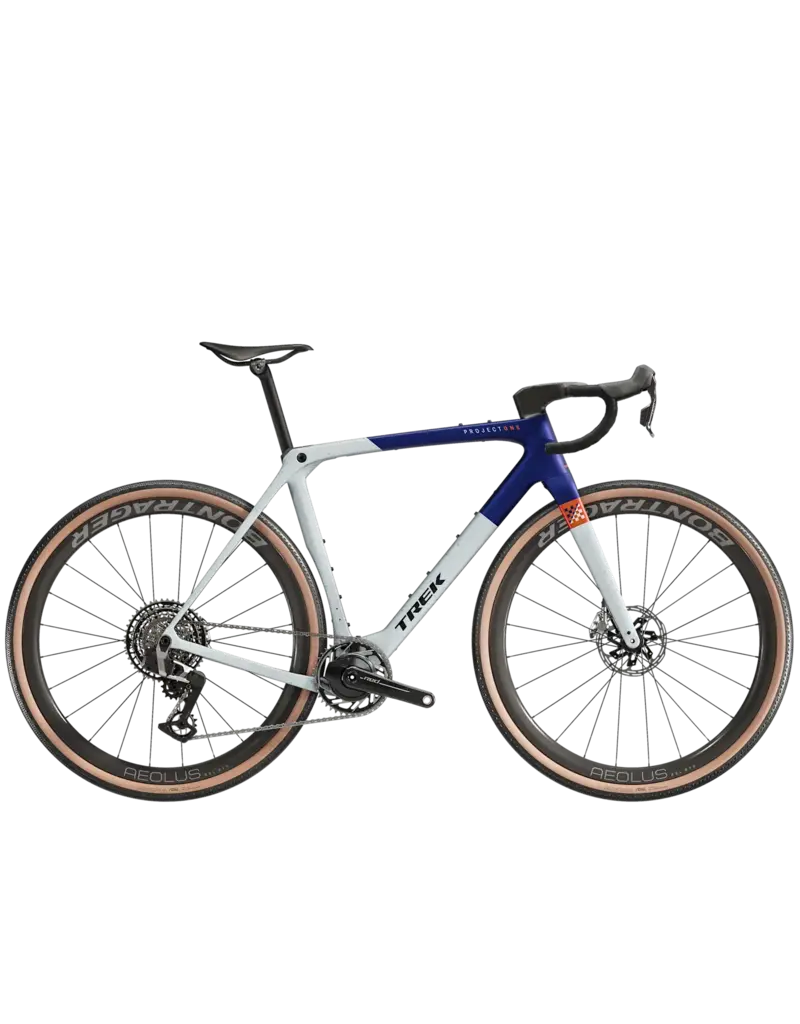

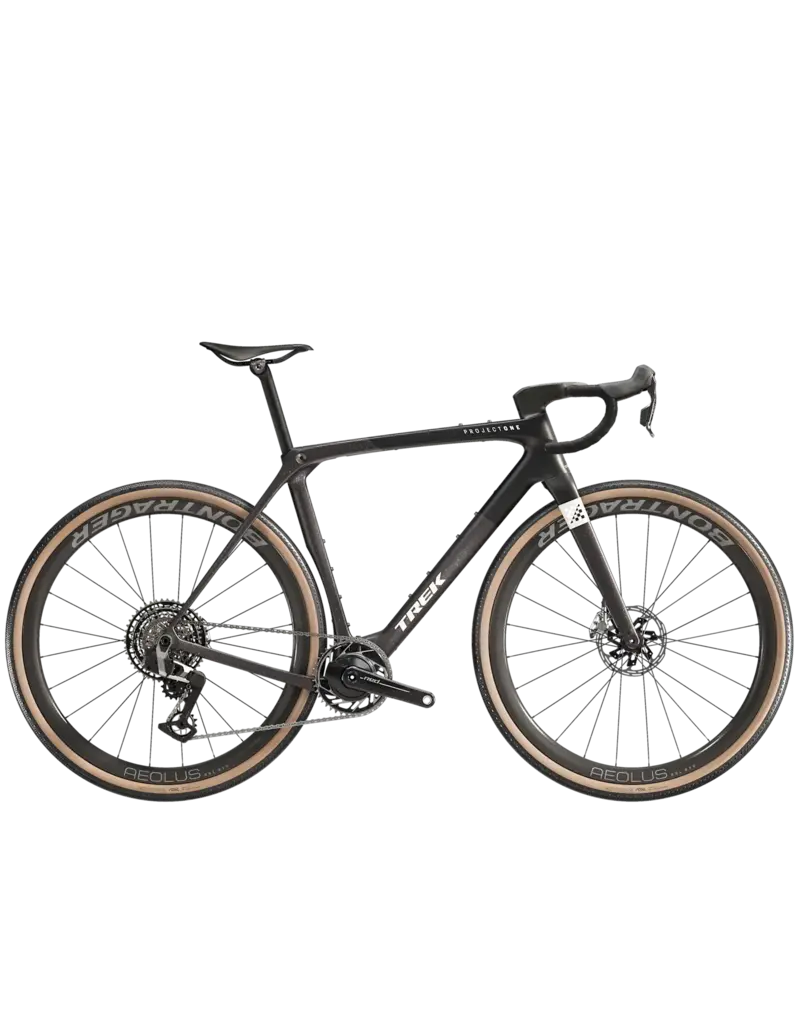

Checkmate SLR 9 AXS is our fastest and lightest gravel race bike, built to chase podiums down rowdy roads. It combines a lightweight aero design with IsoSpeed road-smoothing tech and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. To keep you at the front of the pack, it's equipped with top-tier parts, like carbon wheels and SRAM's latest ergonomic RED AXS XPLR wireless drivetrain.
| Frame |
800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
| Fork |
Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle |
| Weight |
ML - 7.55 kg / 16.65 lbs (with TLR sealant, no tubes) |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Battery |
SRAM eTap battery pack (with charger) |
| Shifter |
SRAM RED AXS E1 |
| Rear derailleur |
SRAM RED XPLR eTap AXS, 46T max cog |
| *Crank |
Size: XS, S
SRAM RED XPLR, power meter, 42T, DUB wide, 165mm length |
Size: M
SRAM RED XPLR, power meter, 42T, DUB wide, 170mm length |
Size: ML, L
SRAM RED XPLR, power meter, 42T, DUB wide, 172.5mm length |
Size: XL
SRAM RED XPLR, power meter, 42T, DUB wide, 175mm length |
| Bottom bracket |
SRAM DUB, T47 threaded, internal bearing |
| Cassette |
SRAM XG-1391, 10-46T, 13 speed |
| Chain |
SRAM RED E1, 12 speed |
| Max chainring size |
See service manual |
| Wheel front |
Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle |
| Wheel rear |
Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
| Skewer front |
Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear |
Bontrager Switch chamfered thru axle, removable lever |
| Tire |
Bontrager Girona RSL GR, Tubeless Ready, aramid bead, 220 tpi, 700x38mm |
| Tire part |
Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip |
Bontrager TLR |
| Max tire size |
45mm without fenders |
| *Saddle |
Size: XS, S
Aeolus RSL, carbon rails, 155mm width |
Size: M, ML, L, XL
Aeolus RSL, carbon rails, 145mm width |
| *Seatpost |
Size: XS, S, M
KVF aero carbon seatpost, 5mm offset, 280mm length |
Size: ML, L, XL
KVF aero carbon seatpost, 5mm offset, 320mm length |
| *Handlebar/stem (integrated) |
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length |
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length |
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length |
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length |
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
| Brake rotor |
SRAM Paceline X, rounded, centerlock, 160mm |
| Rotor size |
Max brake rotor sizes: 180mm front & rear |
