Availability: |
Out of stock |

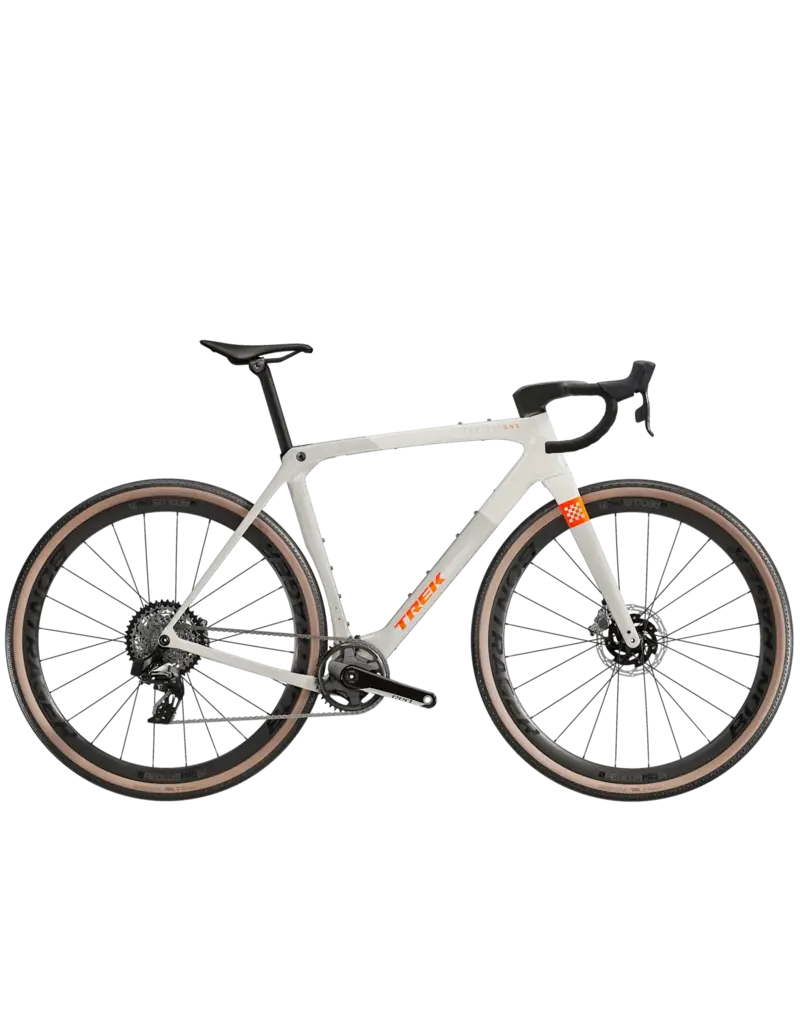

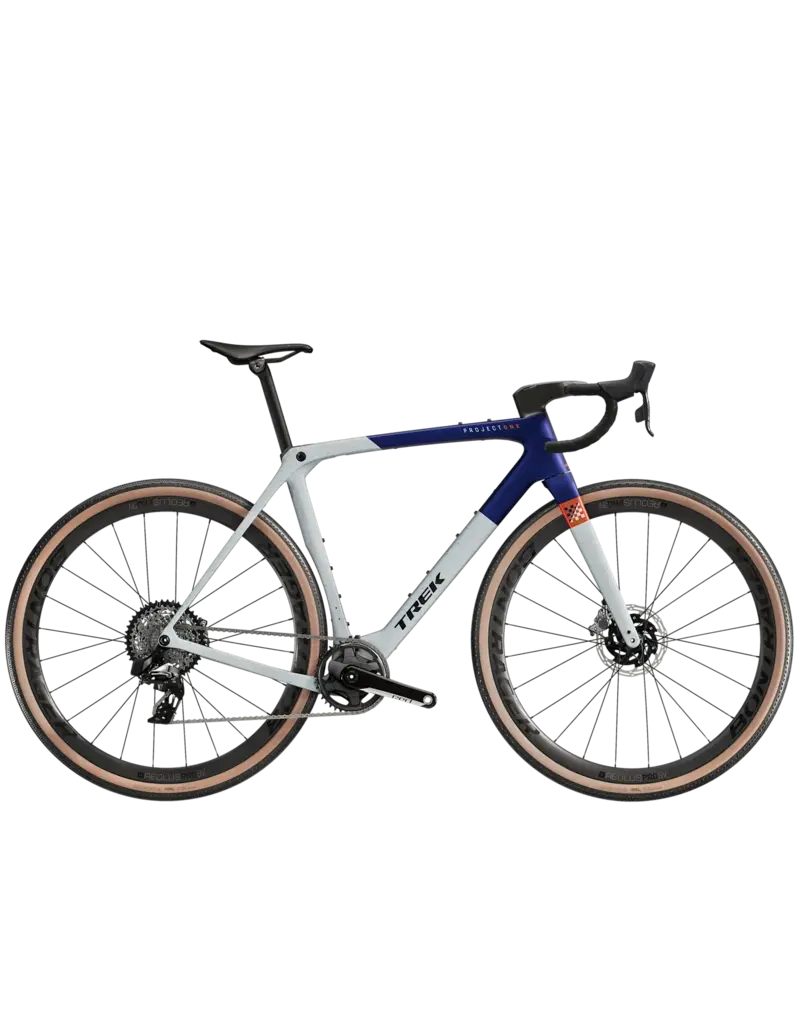

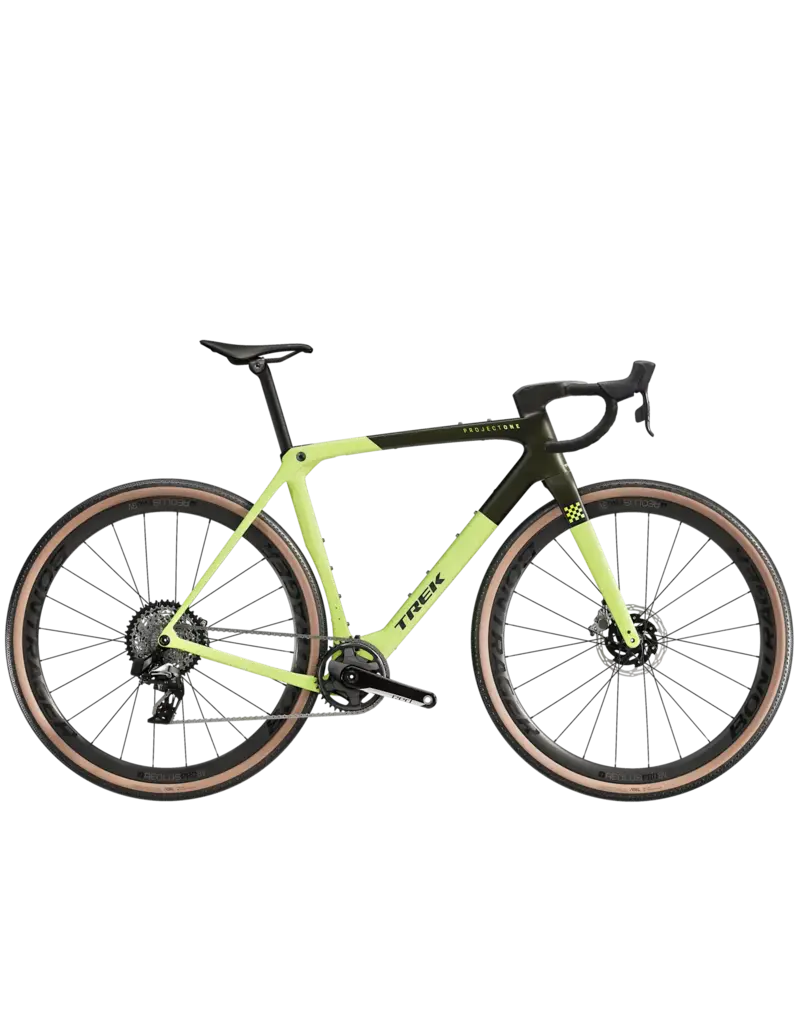

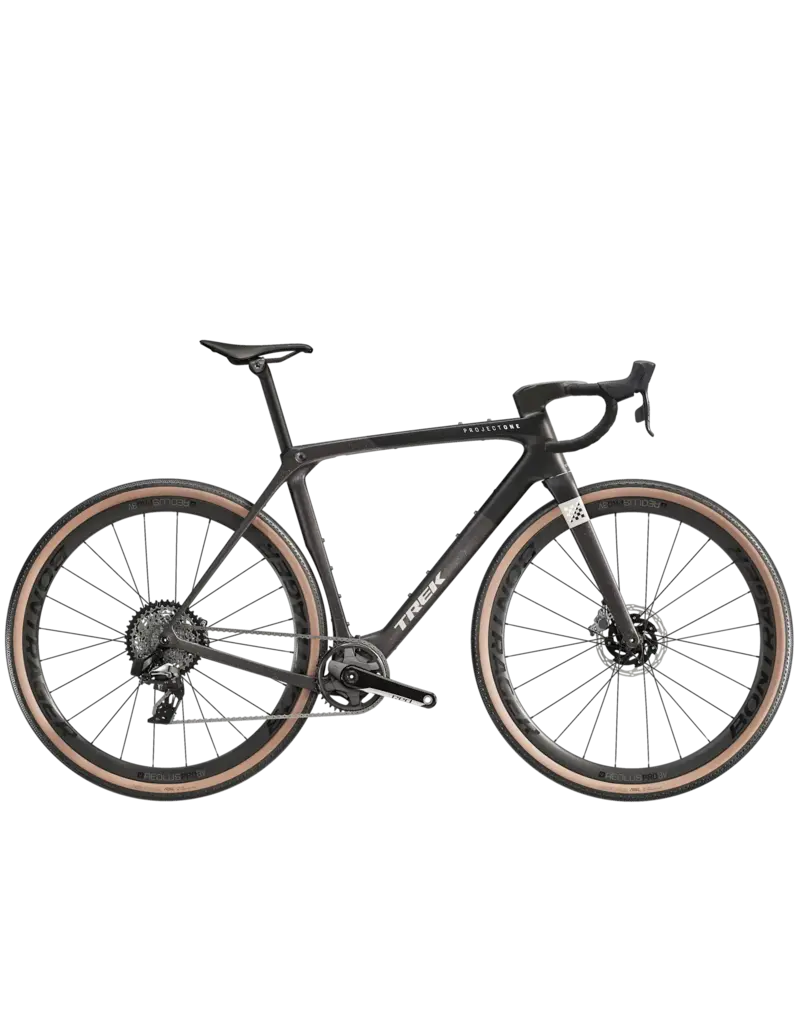

Checkmate SLR 8 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road. To deliver the performance you crave on race day, Checkmate combines a lightweight aero design with IsoSpeed and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. It's topped off with a 1x12 previous generation SRAM RED XPLR AXS wireless drivetrain, carbon wheels, and Trek Aero RSL bar/stem for a lightweight build.
Frame |
800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
Fork |
Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle |
Weight |
ML - 8.00 kg / 17.64 lbs (with TLR sealant, no tubes) |
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
Battery |
SRAM eTap battery pack (with charger) |
Shifter |
SRAM RED eTap AXS, 12 speed |
Rear derailleur |
SRAM RED XPLR eTap AXS, 44T max cog |
*Crank |
Size: XS, S SRAM RED AXS w/ power meter, 40T, DUB, 165mm length |
Size: M SRAM RED AXS w/ power meter, 40T, DUB, 170mm length |
Size: ML, L SRAM RED AXS w/ power meter, 40T, DUB, 172.5mm length |
Size: XL SRAM RED AXS w/ power meter, 40T, DUB, 175mm length |
Bottom bracket |
SRAM DUB, T47 threaded, internal bearing |
Cassette |
SRAM XG-1271, 10-44, 12 speed |
Chain |
SRAM RED D1, 12 speed |
Max chainring size |
See service manual |
Wheel front |
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
Wheel rear |
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle |
Skewer front |
Bontrager Switch chamfered thru axle, removable lever |
Skewer rear |
Bontrager Switch chamfered thru axle, removable lever |
Tire |
Bontrager Girona RSL GR, Tubeless Ready, aramid bead, 220 tpi, 700x38mm |
Tire part |
Bontrager TLR sealant, 180 ml/6 oz |
Rim strip |
Bontrager TLR |
Max tire size |
45mm without fenders |
*Saddle |
Size: XS, S Bontrager Aeolus P2 Pro, carbon rails, 155mm width |
Size: M, ML, L, XL Bontrager Aeolus Pro, carbon rails, 145mm width |
*Seatpost |
Size: XS, S, M KVF aero carbon seatpost, 5mm offset, 280mm length |
Size: ML, L, XL KVF aero carbon seatpost, 5mm offset, 320mm length |
*Handlebar/stem (integrated) |
Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length |
Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length |
Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length |
Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length |
Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
Brake rotor |
SRAM CenterLine X, centerlock, round edge, 160mm |
Rotor size |
Max brake rotor sizes: 180mm front & rear |
