| Availability: |
Out of stock |

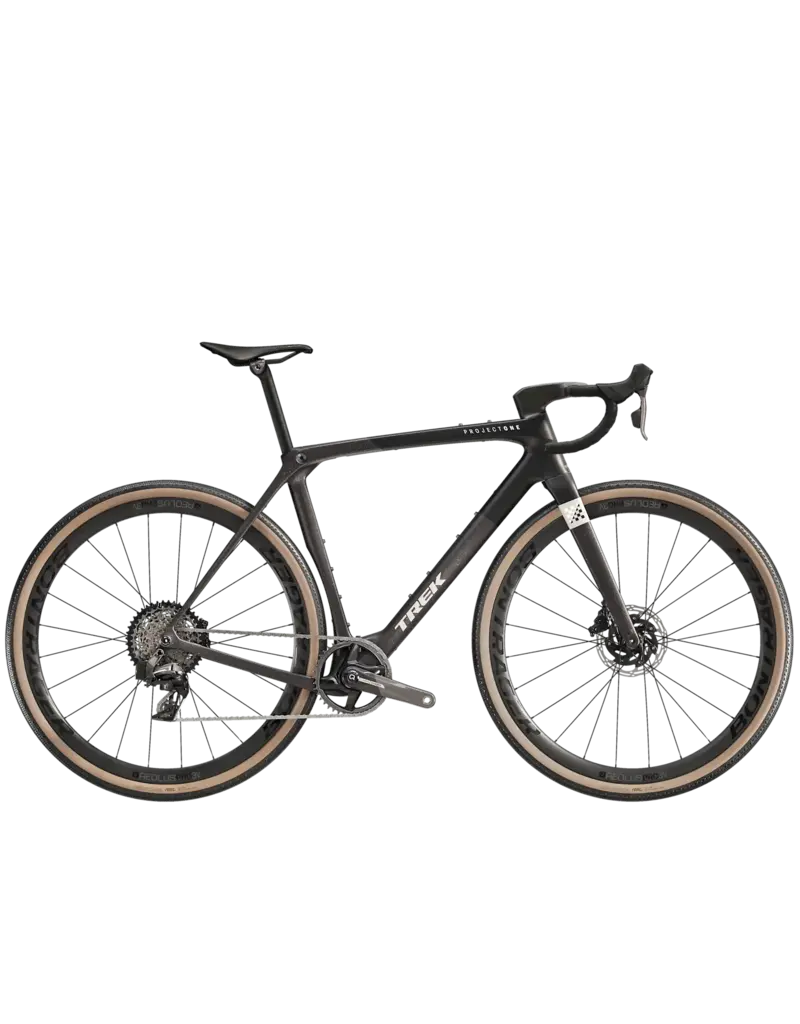

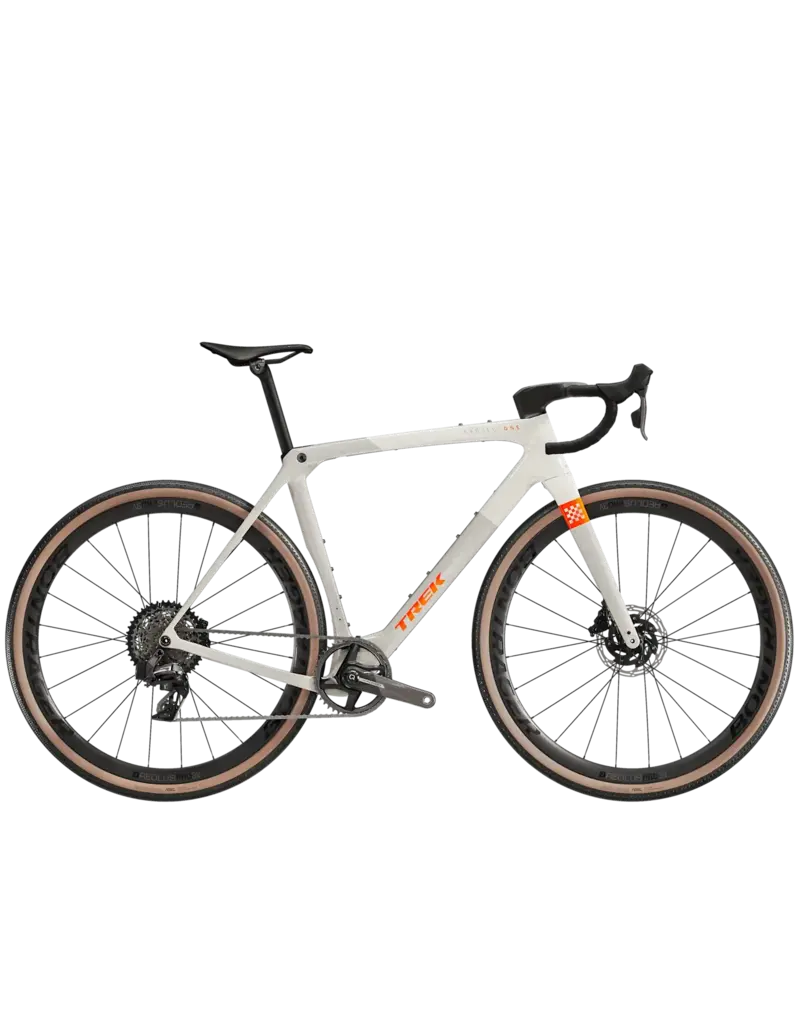

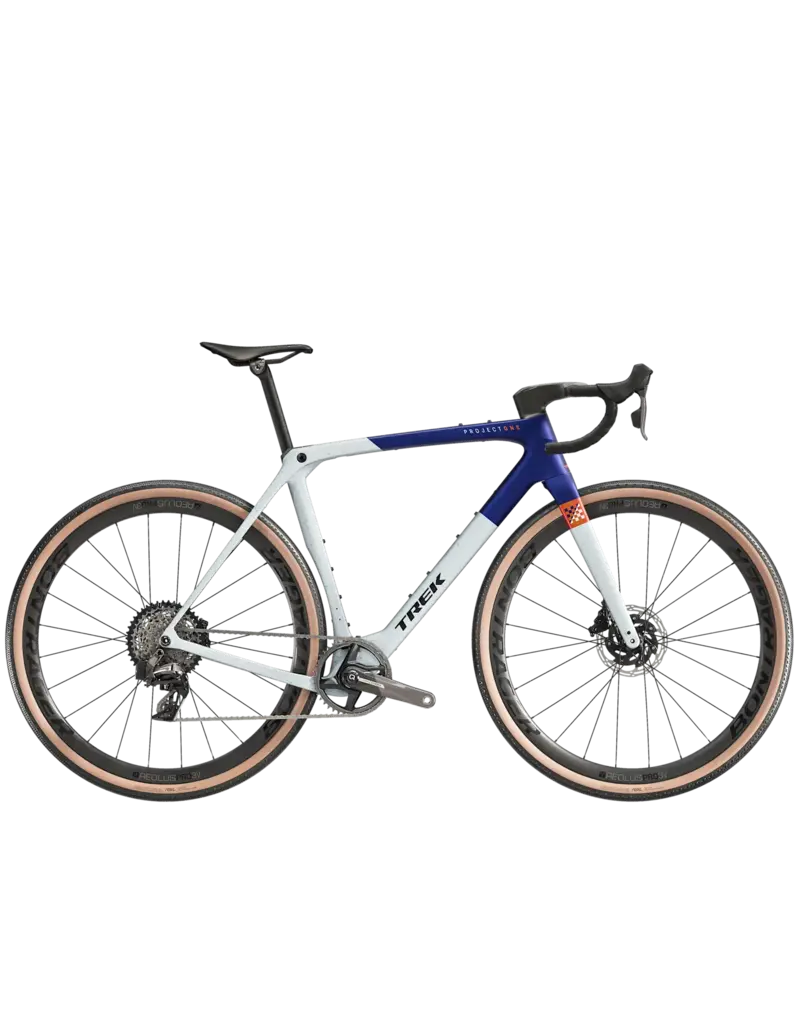

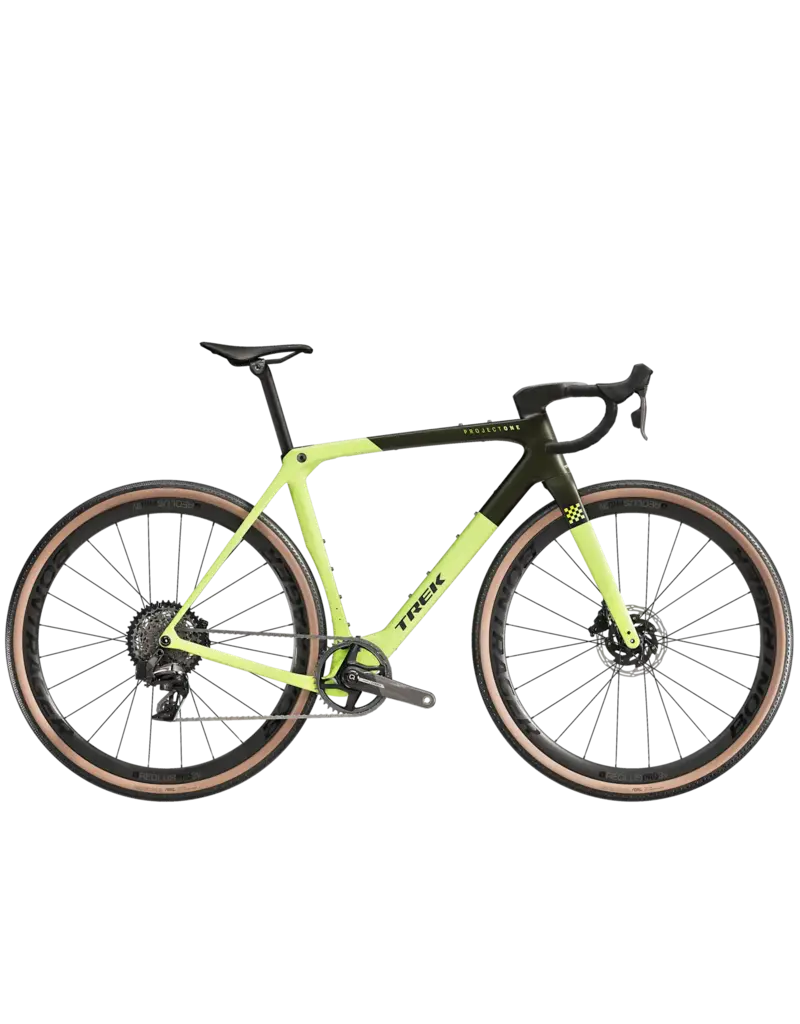

Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road. To deliver the performance you crave on race day, Checkmate combines a lightweight aero design with IsoSpeed and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. It's topped off with a SRAM Force XPLR AXS wireless drivetrain, carbon wheels, and Trek Aero RSL bar/stem for a lightweight build.
| Frame |
800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
| Fork |
Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle |
| Weight |
ML - 8.10 kg / 17.86 lbs (with TLR sealant, no tubes) |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Battery |
SRAM eTap battery pack (with charger) |
| Shifter |
SRAM Force AXS D2, 12 speed |
| Rear derailleur |
SRAM Force XPLR AXS D2, 44T max cog |
| *Crank |
Size: XS, S
SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 165mm length |
Size: M
SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 170mm length |
Size: ML, L, XL
SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 172.5mm length |
| Bottom bracket |
SRAM DUB, T47 threaded, internal bearing |
| Cassette |
SRAM XG-1271, 10-44, 12 speed |
| Chain |
SRAM Force, 12 speed |
| Max chainring size |
See service manual |
| Wheel front |
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Wheel rear |
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle |
| Skewer front |
Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear |
Bontrager Switch chamfered thru axle, removable lever |
| Tire |
Bontrager Girona RSL GR, Tubeless Ready, aramid bead, 220 tpi, 700x38mm |
| Tire part |
Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip |
Bontrager TLR |
| Max tire size |
45mm without fenders |
| *Saddle |
Size: XS, S
Bontrager Aeolus P2 Pro, carbon rails, 155mm width |
Size: M, ML, L, XL
Bontrager Aeolus Pro, carbon rails, 145mm width |
| *Seatpost |
Size: XS, S, M
KVF aero carbon seatpost, 5mm offset, 280mm length |
Size: ML, L, XL
KVF aero carbon seatpost, 5mm offset, 320mm length |
| *Handlebar/stem (integrated) |
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length |
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length |
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length |
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length |
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
| Brake rotor |
SRAM CenterLine X, centerlock, round edge, 160mm |
| Rotor size |
Max brake rotor sizes: 180mm front & rear |
