| Availability: | Out of stock |

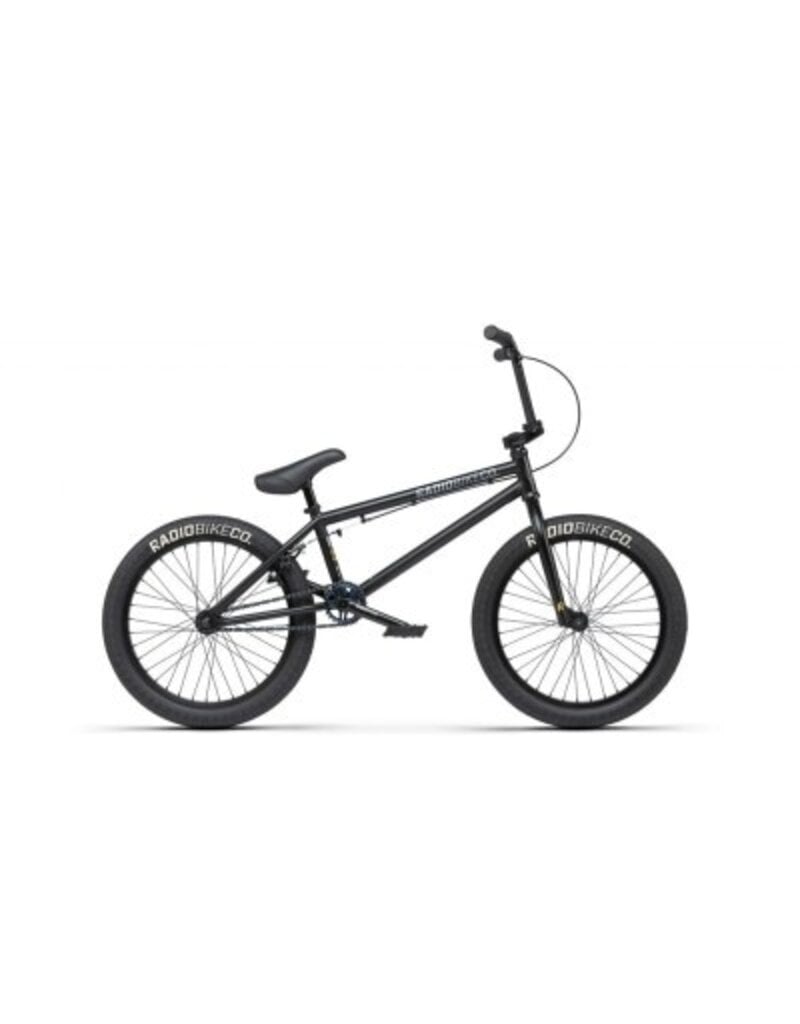

FRAME: RADIO "EVOL" frame, crmo top tube, 1020 hi-ten
FORK: RADIO "AM" fork, 1020 hi-ten, crmo steerer, tapered legs
BARS: RADIO "AM 20" bar, 1020 hi-ten
GRIPS: SALT "EX" grips, flangless, 155mm
STEM: RADIO "AM" topload stem, 50mm reach
HEADSET: SALT "PRO" integrated headset, sealed bearing
GYRO: holes for removable gyro tabs
LEVER: RADIO "AM" brake lever, alloy, rear
BRAKES: RADIO "AM" u-brake, alloy, rear
CRANKS: RADIO "ROOKIE" 3pc crank, tubular, crmo, 165mm, 8 spline
BB : RADIO "MID" bb set, press fit, sealed bearing
PEDALS: RADIO "PRO" pedals, nylon/fiberglass
CHAIN: SALT "AM" chain, WZ1 type
SPROCKET: RADIO "VISION" sprocket, steel, 25t
DRIVER: cassette driver, 9t, lb
FRONT HUB: RADIO "ROOKIE" hub, steel, loose ball, 3/8"s, 36h
REAR HUB: RADIO "AM" cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
FRONT RIM: RADIO "ROOKIE" rim, single wall
REAR RIM: RADIO "ROOKIE" rim, single wall
SEAT: RADIO "CENTURY" combo seat, mid padded
SEAT POST: -
SEAT CLAMP: RADIO "SLIM" seat clamp, alloy
TIRES: RADIO "ROOKIE" tires, 2.3", front & rear
PEGS: -
WEIGHT: 12.25kg / 27.02lbs
FRAME GEOMETRY:
TOP TUBE LENGTH: 20.3"
CHAIN STAY LENGTH: 13.2"
HEAD TUBE ANGLE: 75°
SEAT TUBE ANGLE: 71.5°
BOTTOM BRACKET HEIGHT: 11.75"
STANDOVER HEIGHT: 8.25"
HANDLEBAR GEOMETRY:
RISE: 8.8"
WIDTH: 29"
BACKSWEEP: 11°
UPSWEEP: 2°
