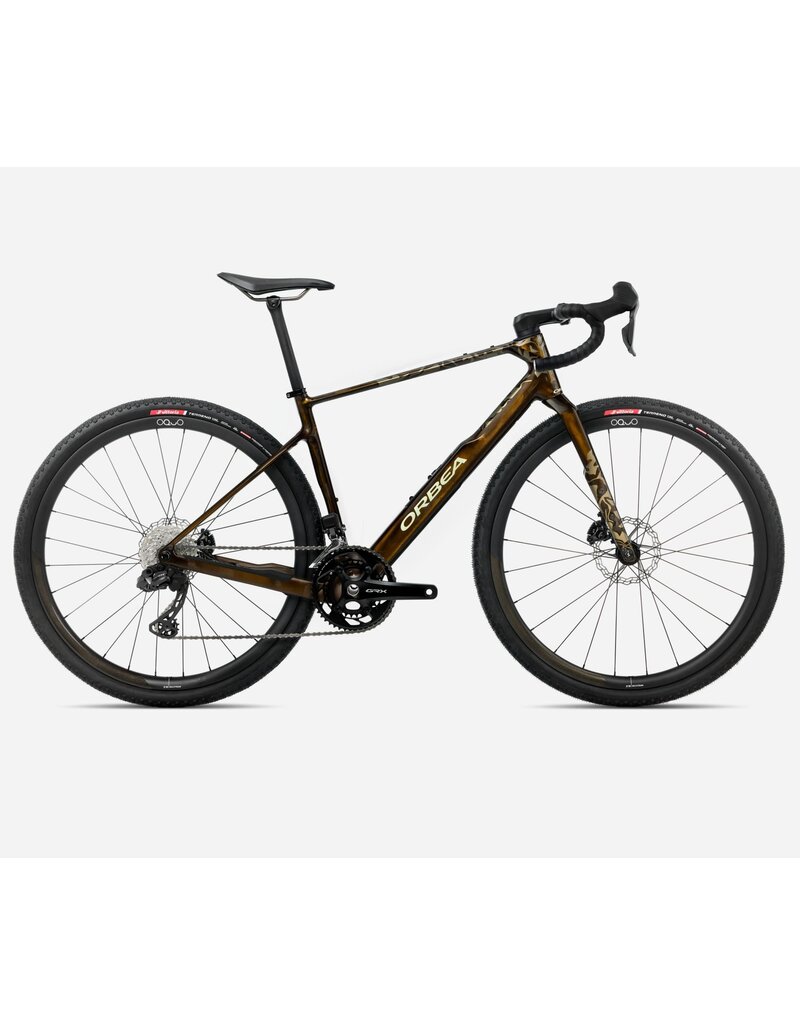

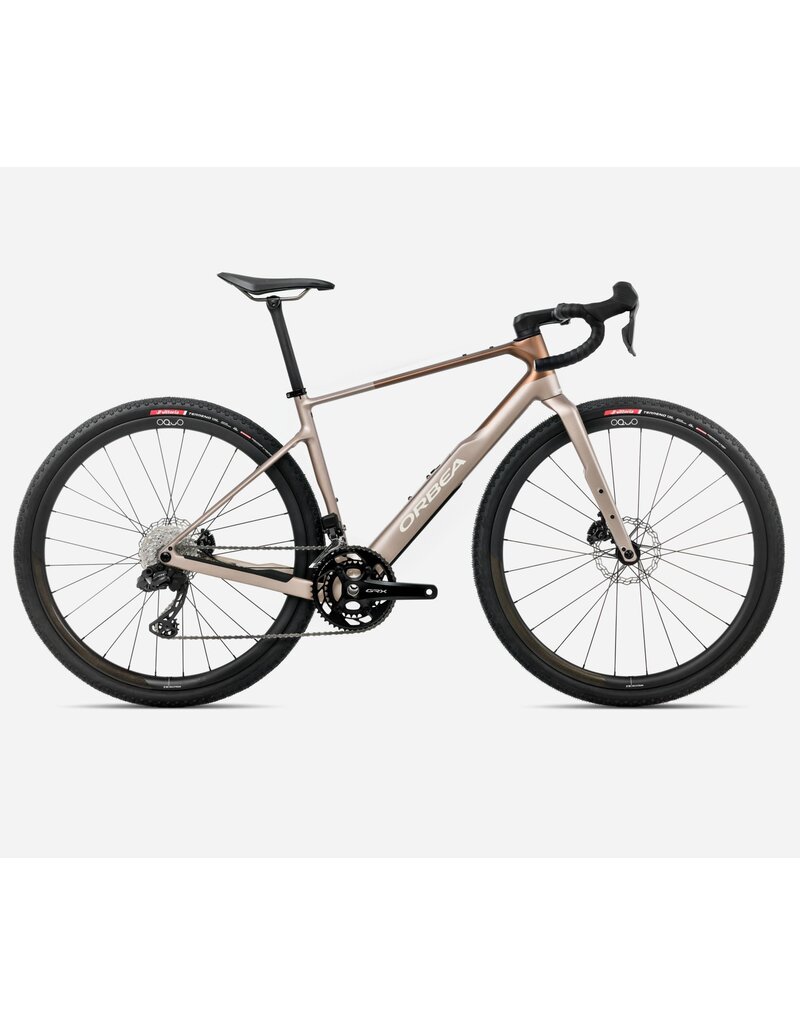

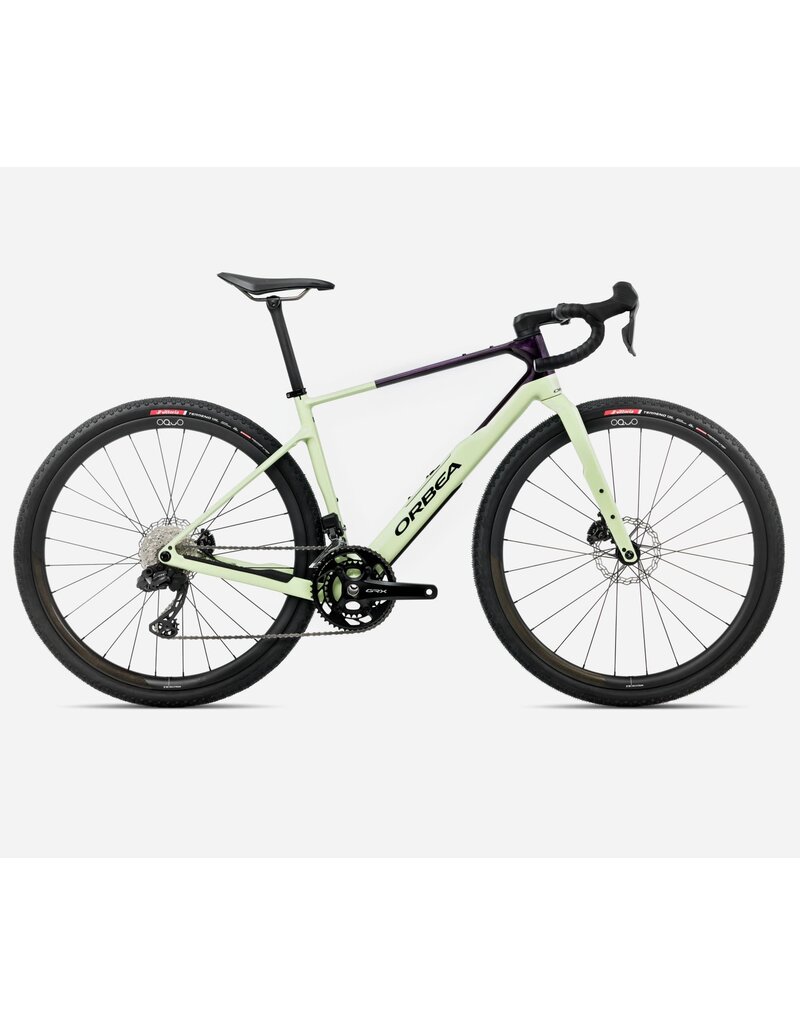

Orbea Terra M20iTeam 2026

C$7,998.99
Availability: Out of stock

Terra is your best ally: a capable gravel bike for off-road adventures, be it bike packing or endurance races.

Specs

Frameset

Frame

Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.

Fork

Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.

Steerer tube

FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

Crankset

Shimano GRX RX820 31x48t

Shifters

Shimano GRX Di2 RX825

Cassette

Shimano Ultegra R8100 11-34t 12-Speed

Rear derailleur

Shimano GRX Di2 RX825

Front derailleur

Shimano GRX Di2 RX825

Chain

Shimano M7100

Cockpit

Handlebar

OC Gravel GR10 Carbon, Reach 70, Drop 110

Stem

OC Road Performance RP11, -8º

Brakes

Brakes

Shimano RX820 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Wheels

Oquo Road Control RC30TEAM

Tyres

Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Components

Seatpost

OC Performance XP10 Carbon, 27.2mm, Setback 0

Saddle

Fizik Terra Argo X3 Kium Rail 140mm

Accessories

Mudguard

N/A

Handlebar Tape

Orbea Anti-Slippery/Shock Proof

Storage

Accesories Containers
