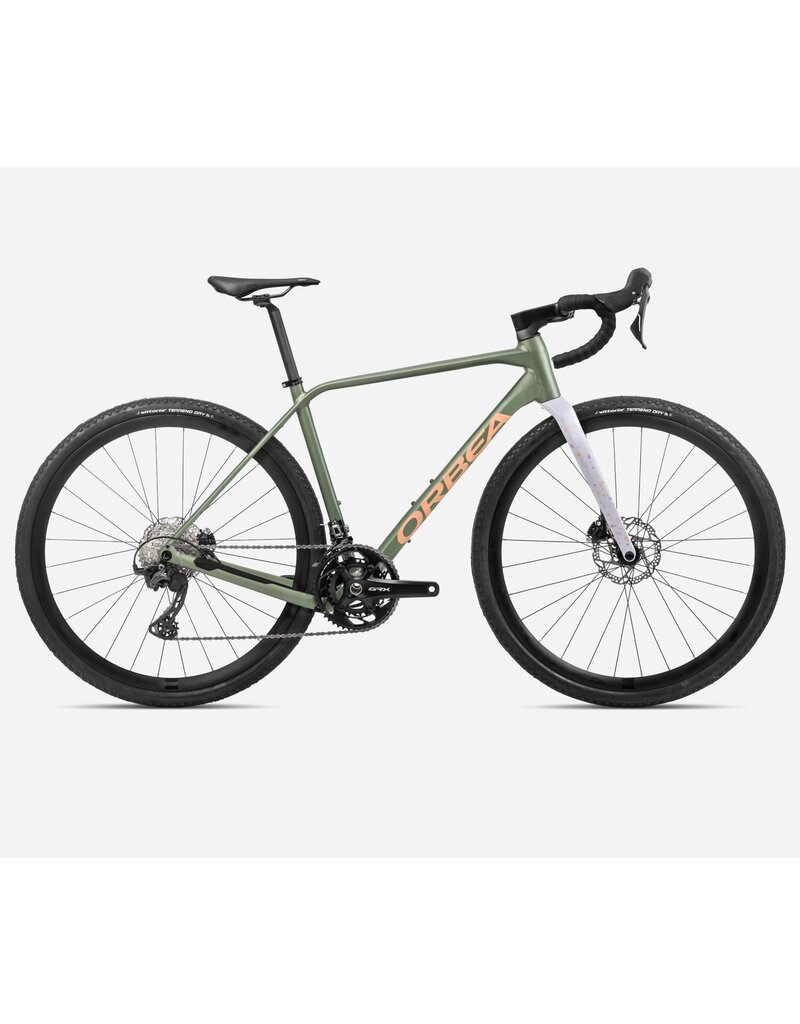

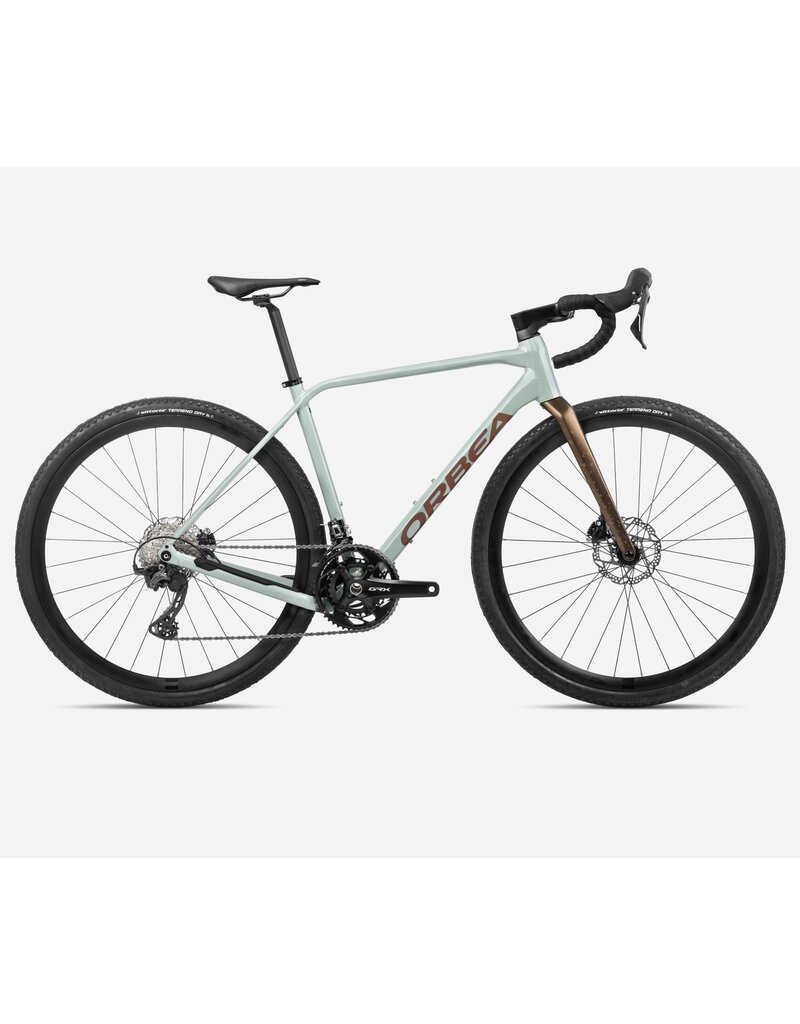

Orbea Terra H30 2025

C$3,498.99
Availability: Out of stock

SPECIFICATIONS

FRAMES

FRAME

Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system

FORK

Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

HEADSET

FSA 1-1/2" Integrated Aluminium Cup

DRIVETRAIN

CRANKSET

Shimano GRX RX610 30x46t

SHIFTERS

Shimano GRX RX610

CASSETTE

Shimano HG710 11-36t 12-Speed

REAR DERAILLEUR

Shimano GRX RX820

FRONT DERAILLEUR

Shimano GRX RX820

CHAIN

Shimano M6100

COCKPIT

HANDLEBAR

OC Gravel GR31-R, Rise 15, Reach 70, Drop 110

STEM

OC Road Performance RP21, -6º

BRAKES

BRAKES

Shimano RX400 Hydraulic disc

BRAKES CONFIGURATION



WHEELS

WHEELS

Alloy, Tubeless, 700c, 21c

TYRES

Vittoria Terreno Dry Gravel 700x38c

FRONT WHEEL AXLE

Orbea Thru Axle 12x100mm M12x2 P1 Solid

REAR WHEEL AXLE

Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

COMPONENTS

SEATPOST

SP 0.2 Carbon, 27.2mm, Setback 20

SADDLE

Prologo Akero AGX STN size 155mm

ACCESSORIES

HANDLEBAR TAPE

Orbea Eva

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.



TERRA H30

XS
S
M
L
XL
XXL
11 - SEAT TUBE (C-T)
425
458
491
524
557
590
22 - TOP TUBE (EFF)
526
539
558
570
590
603
33 - HEAD TUBE
110
131
152
178
199
220
44 - CHAINSTAY
430
430
430
430
430
430
55 - BB HEIGHT (30-622)
263
263
263
265
265
265
