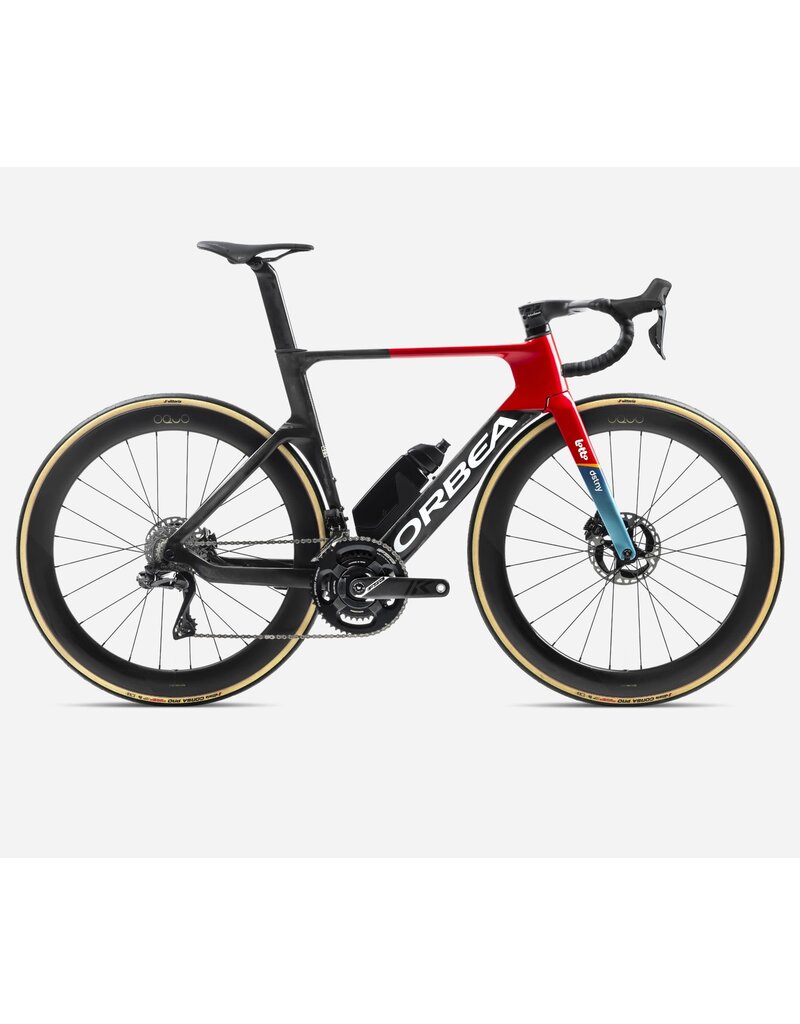

Orbea Orca Aero M10i LTD Replica 2024

C$15,698.99
Availability: In stock

SPECIFICATIONS

FRAMESET

FRAME

Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.

FORK

Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.

HEADSET

FSA 1-1/2" Integrated Aluminium Cup

DRIVETRAIN

CRANKSET

FSA Powerbox K-Force Team Edition 36x52t

SHIFTERS

Shimano R9270

CASSETTE

Shimano Dura-Ace R9200 11-30t 12-Speed

REAR DERAILLEUR

Shimano Dura-Ace Di2 R9250

FRONT DERAILLEUR

Shimano Dura-Ace Di2 R9250

CHAIN

Shimano CN-9100

COCKPIT

HANDLEBAR

Vision Metron 5D ACR Integrated 3K, Reach 80mm, Drop 125

STEM

Integrated Vision Metron 5D ACR 3K, -6º

BRAKES

BRAKES

Shimano R9270 Hydraulic Disc

BRAKES CONFIGURATION



WHEELS

WHEELS

Oquo Road Performance RP57LTD

TYRES

Vittoria Corsa Pro G2.0 TLR 700x28c

FRONT WHEEL AXLE

Orbea Thru Axle 12x100mm M12x2 P1 Lite

REAR WHEEL AXLE

Orbea Thru Axle 12x142mm M12x2 P1 Lite

COMPONENTS

SEATPOST

OC Road Aero RA10 Carbon, SB0/25, w/Micro tilt adjustment

SADDLE

Selle Italia SLR Boost Fill Carbon Rail Ø7x9 mm

ACCESSORIES

HANDLEBAR TAPE

Orbea Anti-Slippery/Shock Proof

HYDRATION

OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10

STORAGE

OC Aero Toolbox TB01PP



We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

GEOMETRY AND SIZE

ORCA AERO M10i REPLICA

47
49
51
53
55
57
60
1SEAT TUBE (C-T)
459
474
499
524
544
564
589
2TOP TUBE (EFF)
507,6
520,8
532,9
545,5
557,5
573,1
587
3HEAD TUBE
93,1
100,8
117,2
134,9
155,2
173,2
200,4
4CHAINSTAY
408
408
408
408
408
408
408
5BB HEIGHT (28-622)
263
263
263
265
265
265
265
