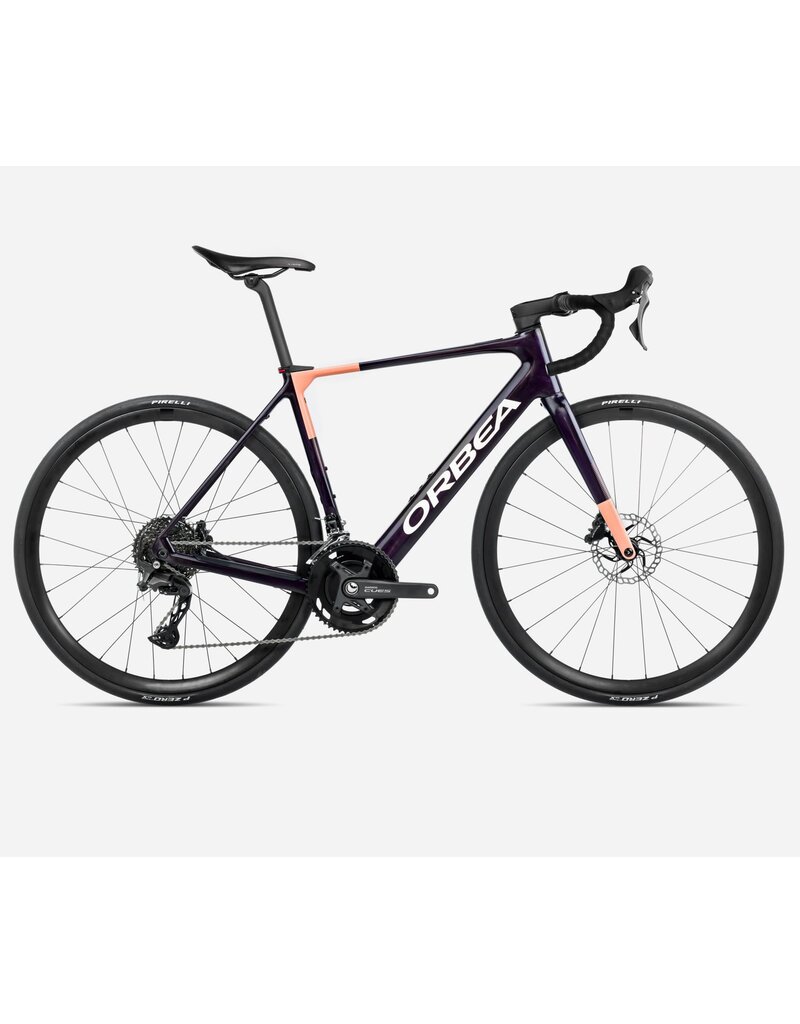

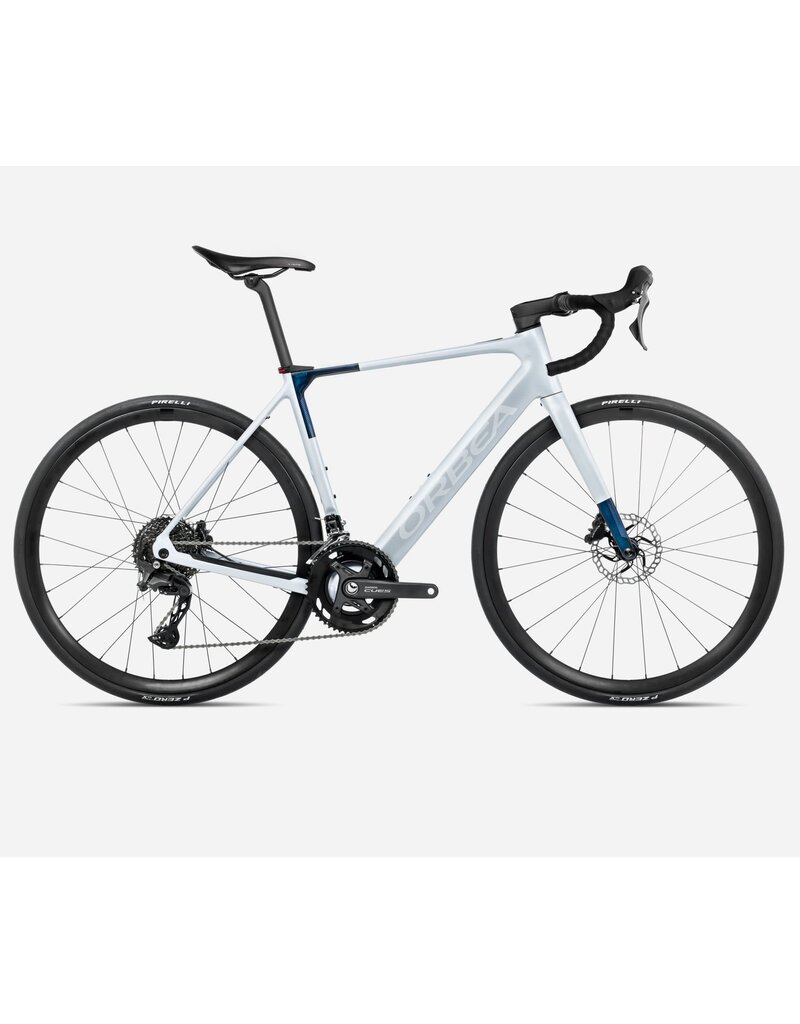

Orbea Gain M40 2026

Home / Orbea Gain M40 2026

Information

Availability:

Out of stock

Rider and bike working in perfect synergy, you’re breathing hard and your heart is pumping but you are in control and having fun

Frameset

Frame

Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

Fork

Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1

Steerer tube

FSA 1-1/2" Integrated Aluminium Cup

Ebike

Battery

Mahle iX350 36V 353Wh

RANGE EXTENDER

N/A

Motor

Mahle motor hub X20, ALC

Display

Mahle Pulsar One monochrome ANT+ LEV

CHARGER

Mahle Active Charger up to 4A

Remote

Mahle ONE Head Unit (BT/ANT+)

Drivetrain

Crankset

Shimano Cues U6040 34x50t

Shifters

Shimano U6030

Cassette

Shimano CS-LG400 11-39t 10-Speed

Rear derailleur

Shimano Cues U6020 SGS Shadow

Front derailleur

Shimano Cues U6030

Chain

Shimano LG500

Cockpit

Handlebar

OC Road Performance RP21 Alu SL, Reach 80, Drop 125

Stem

OC Road Performance RP10, -8º

Brakes

Shimano U6030 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Alloy, Tubeless, 700c, 21c

Tyres

Pirelli P ZERO™ Race X SmartEVO TLR 700x30c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12x2 P1 Lite

Components

Seatpost

OC Performance XP10-S Carbon, 27.2mm, Setback 20

Saddle

Fizik Aliante R5

Accessories

Front light

Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.

Rear light

Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO

Handlebar Tape

Orbea Anti-Slippery/Shock Proof
