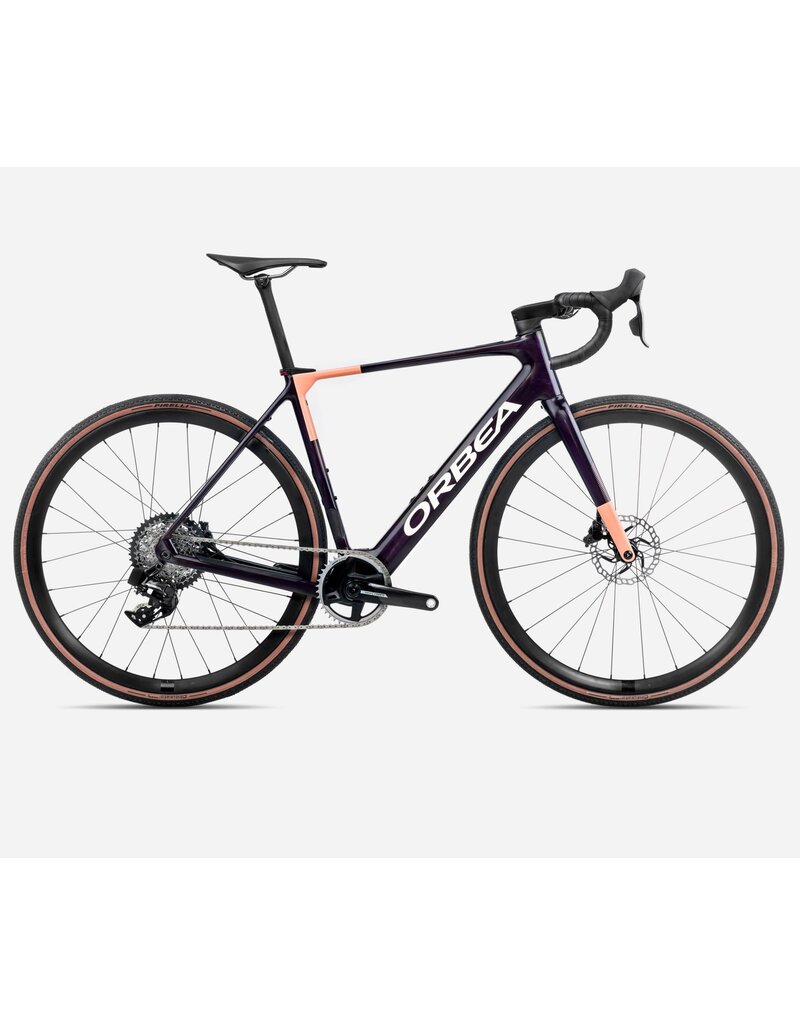

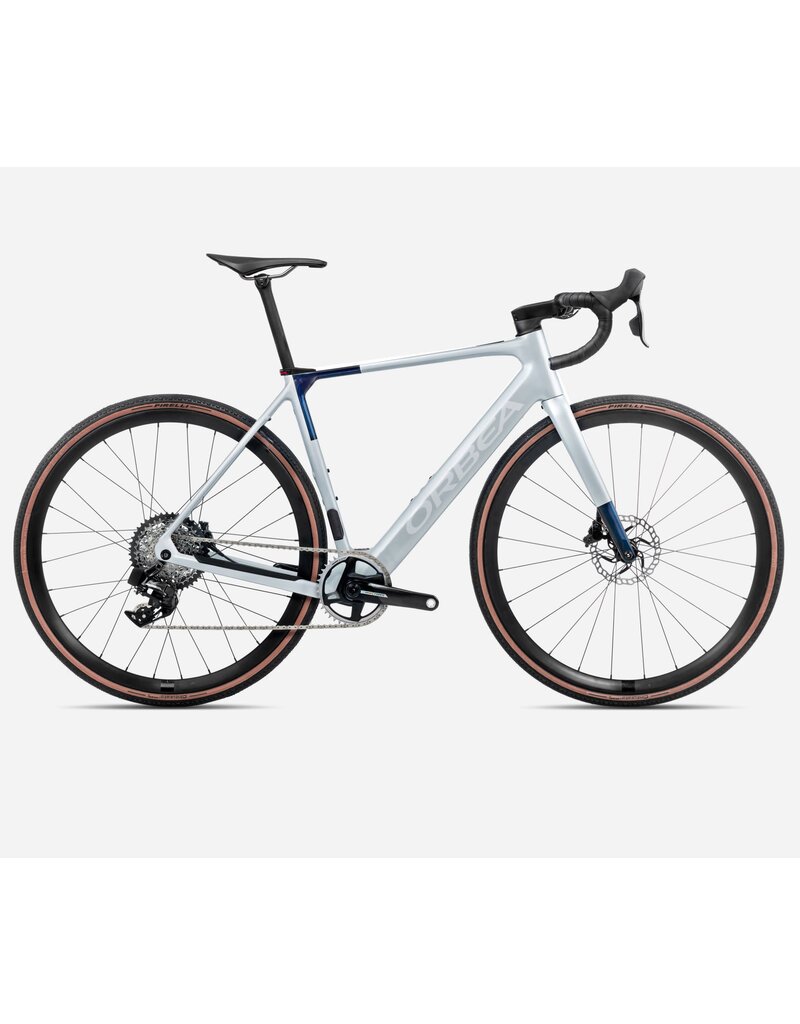

Orbea Gain M21e 1X 2025

Home / Orbea Gain M21e 1X 2025

Information

Availability:

Out of stock

Rider and bike working in perfect synergy, you’re breathing hard and your heart is pumping but you are in control and having fun

Frameset

Frame

Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

Fork

Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1

Steerer tube

FSA 1-1/2" Integrated Aluminium Cup

Ebike

Battery

Mahle iX350 36V 353Wh

RANGE EXTENDER

N/A

Motor

Mahle motor hub X20, ALC

Display

Mahle Pulsar One monochrome ANT+ LEV

CHARGER

Mahle Active Charger up to 4A

Remote

Mahle ONE Head Unit (BT/ANT+)

Remote2

Mahle Handlebar Dual eShifter

Drivetrain

Crankset

Sram Force Dub Wide 40t

Shifters

Sram Force AXS

Cassette

Sram XG-1271 XPLR 10-44t 12-Speed

Rear derailleur

Sram Force XPLR AXS 12s

Chain

Sram Force 12-Speed

Cockpit

Handlebar

OC Road Performance RP10-R Carbon, Rise 15, Reach 70, Drop 125

Stem

OC Road Performance RP22, +15º

Brakes

Sram Force AXS

Brakes Configuration

N/A

Wheels

Alloy, Tubeless, 700c, 21c

Tyres

Pirelli Cinturato™ Gravel H 700x35c TLR

Front Wheel Axle

Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12x2 P1 Lite

Components

Seatpost

OC Performance XP10 Carbon, 27.2mm, Setback 0

Saddle

Fizik Vento Antares R3 Kium Rail 140mm

Accessories

Rear light

Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO

Handlebar Tape

Orbea Anti-Slippery/Shock Proof
