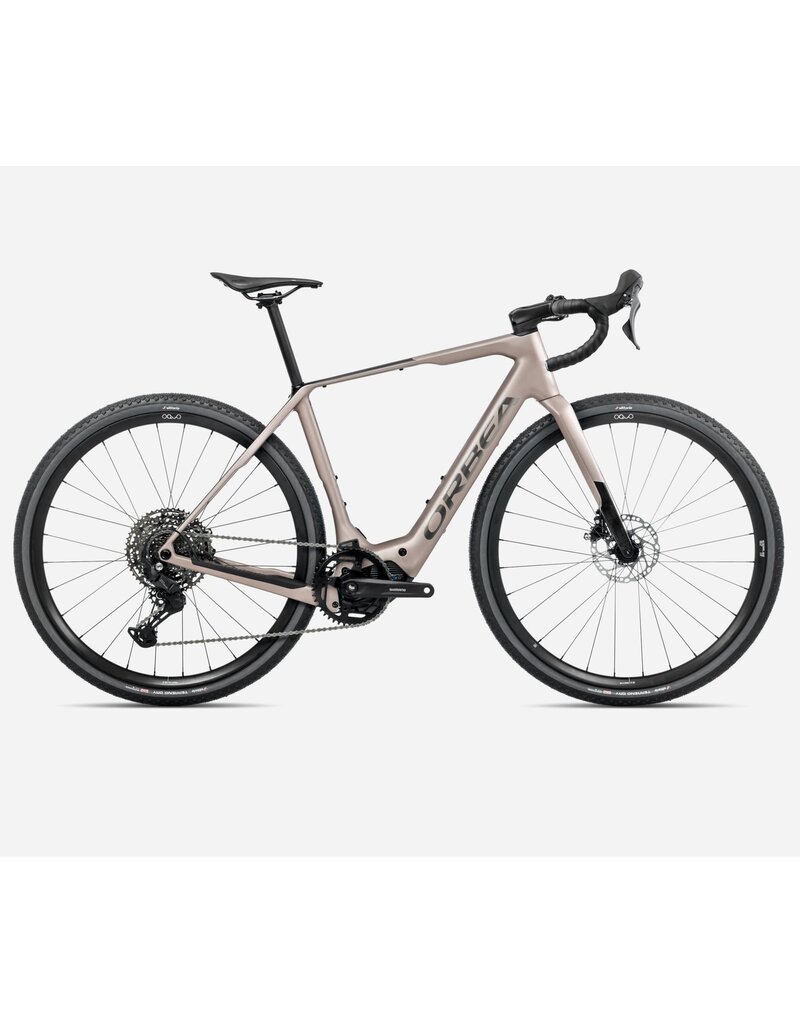

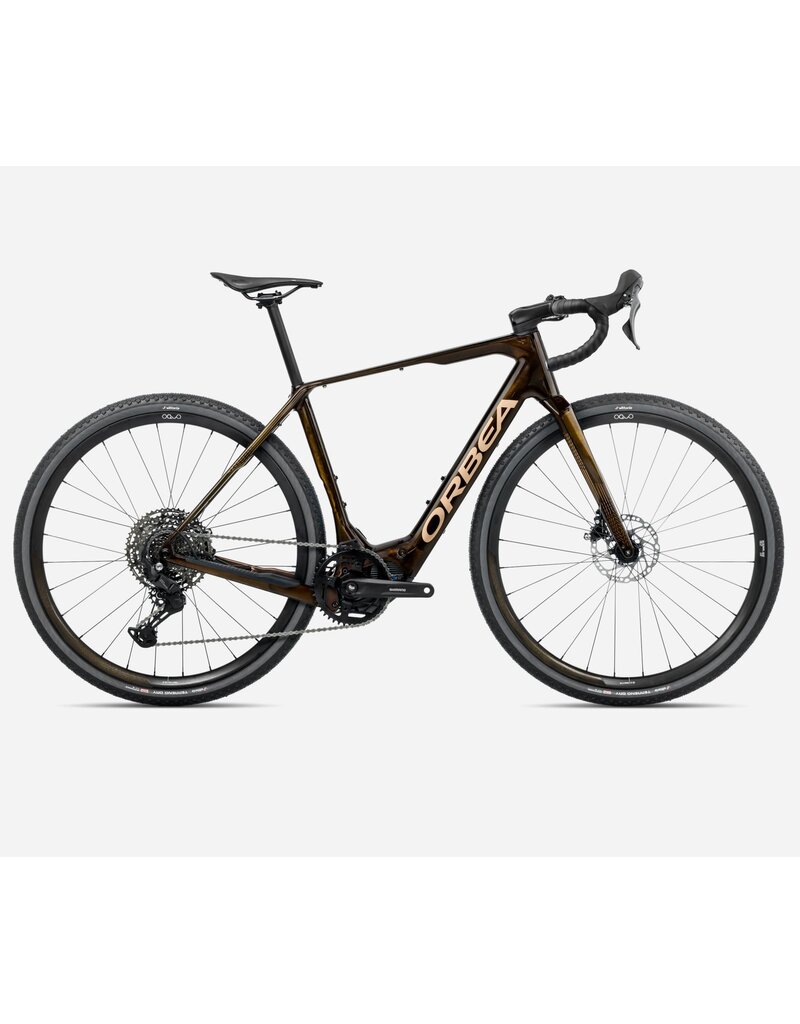

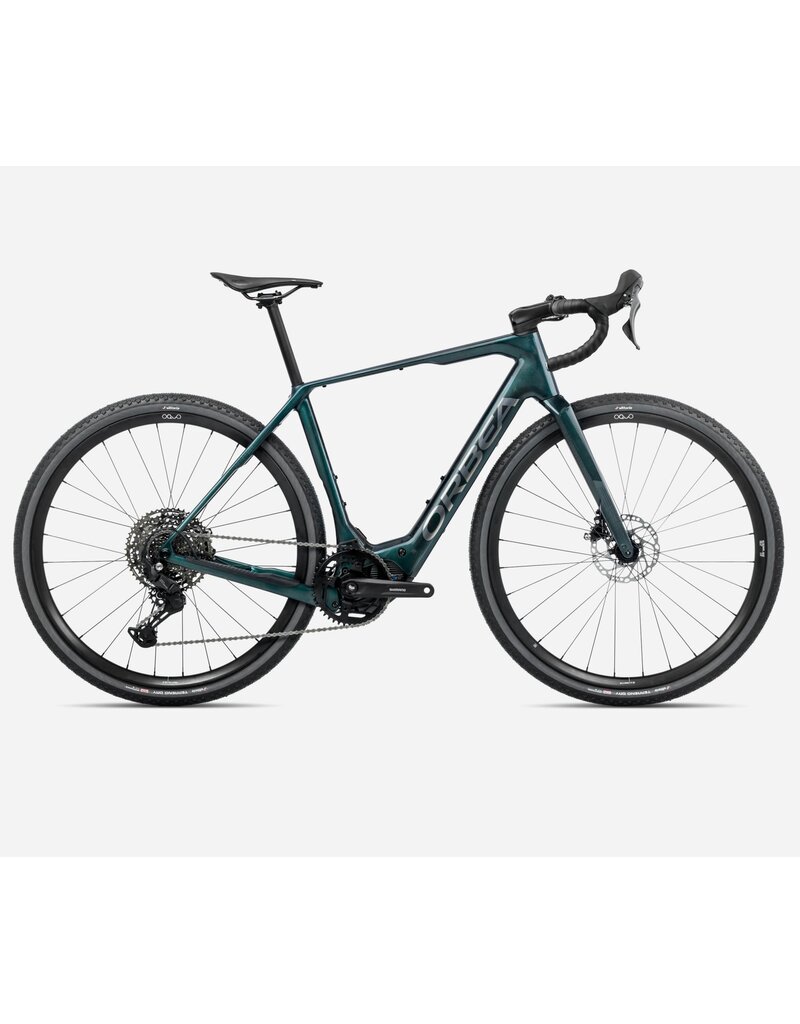

Orbea Denna M40 2026

Home / Orbea Denna M40 2026

Information

Availability:

Out of stock

Denna is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, and range for the longest rides. Wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.

Frameset

Frame

Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.

Fork

Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1

Steerer tube

FSA 1-1/2" Integrated Aluminium Cup

Ebike

Battery

Orbea Internal 420Wh

RANGE EXTENDER

N/A

Motor

Shimano EP801

Display

N/A

CHARGER

Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote

EN600-L

Drivetrain

Chainring

Alloy EP8 42t

Crank

Shimano Steps EM600

Shifters

Shimano U6030

Cassette

Shimano CS-LG400 11-50t 11-Speed

Rear derailleur

Shimano Cues U6000 GS Shadow

Chain

Shimano LG500

Chainguide

Orbea eBike chainguide

Cockpit

Handlebar

OC Gravel GR31, Reach 70, Drop 110

Stem

OC Road Performance RP23, -5º

Brakes

Shimano RS405 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Oquo Road Control RC25PRO

Tyres

Vittoria Terreno Dry Gravel G2.0 TLR 700x45c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Components

Seatpost

SP 0.2 Carbon, 27.2mm, Setback 0

Saddle

Selle San Marco Shortfit 2.0 Start Up Off Road

Accessories

Mudguard

N/A

Handlebar Tape

Orbea Anti-Slippery/Shock Proof

Storage

N/A
