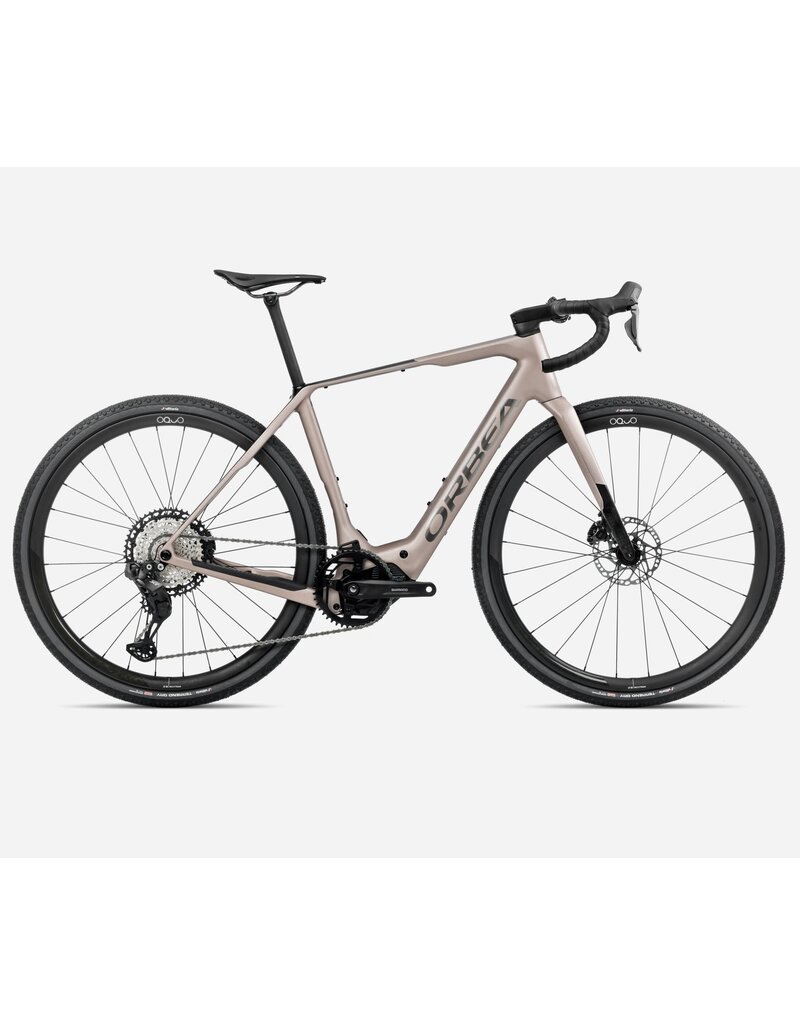

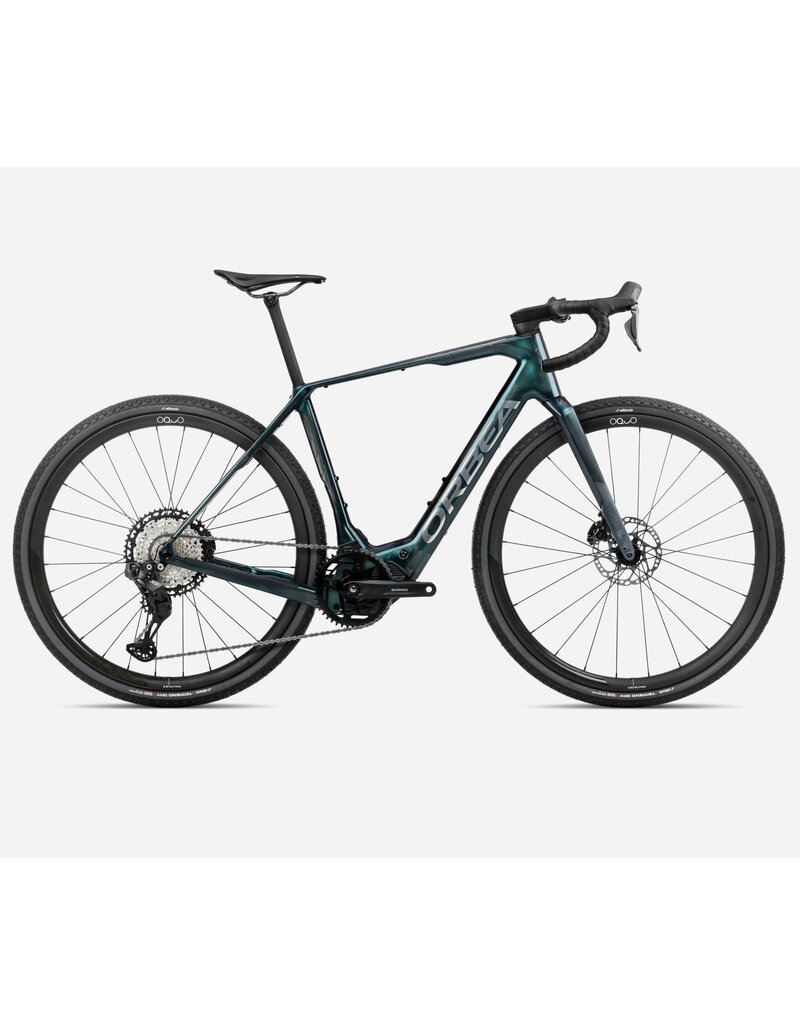

Orbea Denna M20i 2025

Home / Orbea Denna M20i 2025

Information

Availability:

Out of stock

Denna is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, and range for the longest rides. Wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.

Frameset

Frame

Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.

Fork

Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1

Steerer tube

FSA 1-1/2" Integrated Aluminium Cup

Ebike

Battery

Orbea Internal 420Wh

RANGE EXTENDER

N/A

Motor

Shimano EP801

Display

N/A

CHARGER

Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote

EN600-L

Drivetrain

Chainring

Alloy EP8 42t

Crank

Shimano Steps EM600

Shifters

Shimano ST-8170

Cassette

Shimano CS-M8100 10-51t 12-Speed

Rear derailleur

Shimano XT Di2 M8150 12s SGS Shadow Plus

Chain

Shimano M6100

Chainguide

Orbea eBike chainguide

Cockpit

Handlebar

Easton EC90 AX Carbon, flare 16º, Di2 internal routing

Stem

OC Road Performance RP22, +15º

Brakes

Shimano R8170 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Oquo Road Control RC25TEAM

Tyres

Vittoria Terreno Dry Gravel G2.0 TLR 700x45c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Components

Seatpost

OC Performance XP10 Carbon, 27.2mm, Setback 0

Saddle

Selle San Marco Shortfit 2.0 Start Up Off Road Xilite

Accessories

Mudguard

N/A

Handlebar Tape

Orbea Anti-Slippery/Shock Proof
