| Availability: |
Out of stock |
Whether you’re ripping fast flowy singletrack, putting the power down on punchy climbs, or

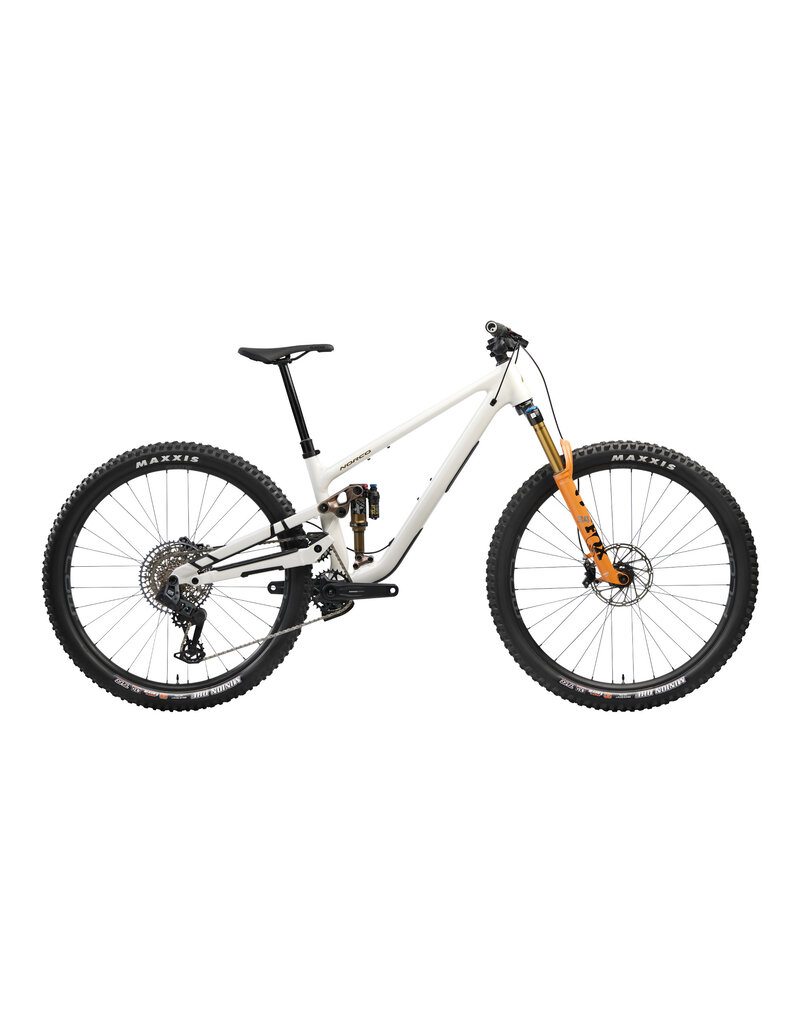

tearing the tires off in the corners, the Optic
continues to push the boundaries of what’s
possible on a short travel trail bike.
| Frame |
Aluminum Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| Fork |
Fox 34 Factory Float, GripX, HSC/LSC/LSR, 140mm, 44mm Offset, Fender Included |
| Rear Shock |
Fox Float X Factory, 185x50mm TR |
| Rear Shifter |
SRAM Pod Ultimate Controller, MMX Bridge |
| Rear Derailleur |
SRAM GX Eagle AXS T-Type, 12sp |
| Crankset |
SRAM Eagle 90, 30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5) |
| Bottom Bracket |
SRAM DUB, BSA 73mm, MTB WIDE |
| Cassette |
SRAM 1275 Eagle T-Type, 10-52T, 12sp |
| Chain |
SRAM GX Eagle T-Type, 12spd |
| Chain Guide |
Norco Idler Guide and Lower Guide |
| Front Brake |
SRAM Code Silver Stealth, 4-Piston, Sintered Pads |
| Front Brake Rotor |
SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt |
| Rear Brake |
SRAM Code Silver Stealth, 4-Piston, Sintered Pads |
| Rear Brake Rotor |
SRAM Centerline, 180mm, 1.8mm Thickness, 6-bolt |
| Brake Levers |
SRAM Code Silver Stealth |
| Handlebar |
OneUp Aluminum, 800mm, 20mm rise |
| Stem |
OneUp 42mm Length , 35mm Clamp |
| Seatpost |
OneUp V3 w/ One Up 1x lever,34.9mm, 150 (S1) -180mm (S2) -210mm (S3,S4) -240mm (S5) |
| Headset |
FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 ) |
| Saddle |
Fizik Alpaca Terra X5 |
| Grips |
Ergon GE1, Slim (S1, S2) Standard (S3,S4,S5) |
| Seatpost Clamp |
Norco Alloy Nutted Clamp, 38.5 ID |
| Tool |
OneUp EDC Lite tool |
| Front Hub |
DT Swiss 350, 15x110 Boost, 32H, 6-bolt |
| Rear Hub |
DT Swiss 350, 12x148 Boost, XD, 6-bolt |
| Rims |
Stan's Flow S2, 32H, F/R- 29", 30mm ID |
| Front Tire |
Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding |
| Rear Tire |
Maxxis Disector, 3C Max Terra EXO, 29x2.4", Folding |
| Rear Hub Skewer |
148mm x 12mm TA, L174, TL13, M12x1.0 |
| Spokes/Nipples |
Sapim Race butted 2.0/1.8/2.0, 14G, stainless steel |
| Valves |
Stan's Tubeless Valves |
| Sealant |
Stan's Sealant |
| Weight |
16.1 kg (35.6 lbs) |
| Weight Size |
S3 |
