| Availability: |
Out of stock |

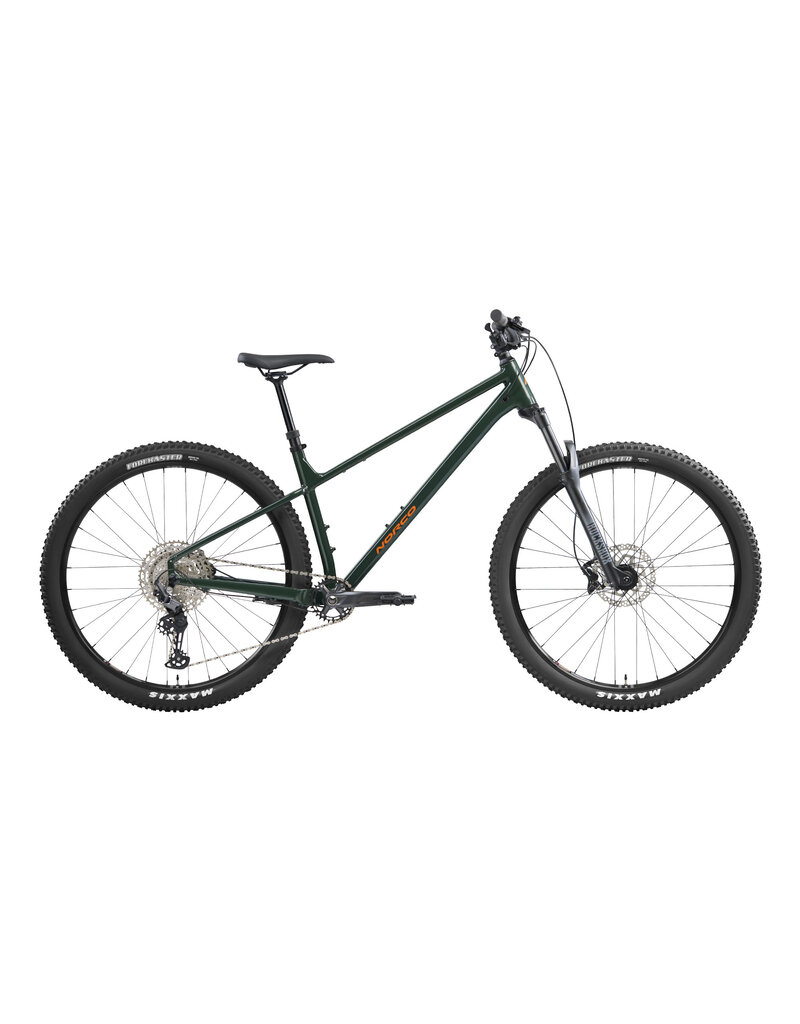

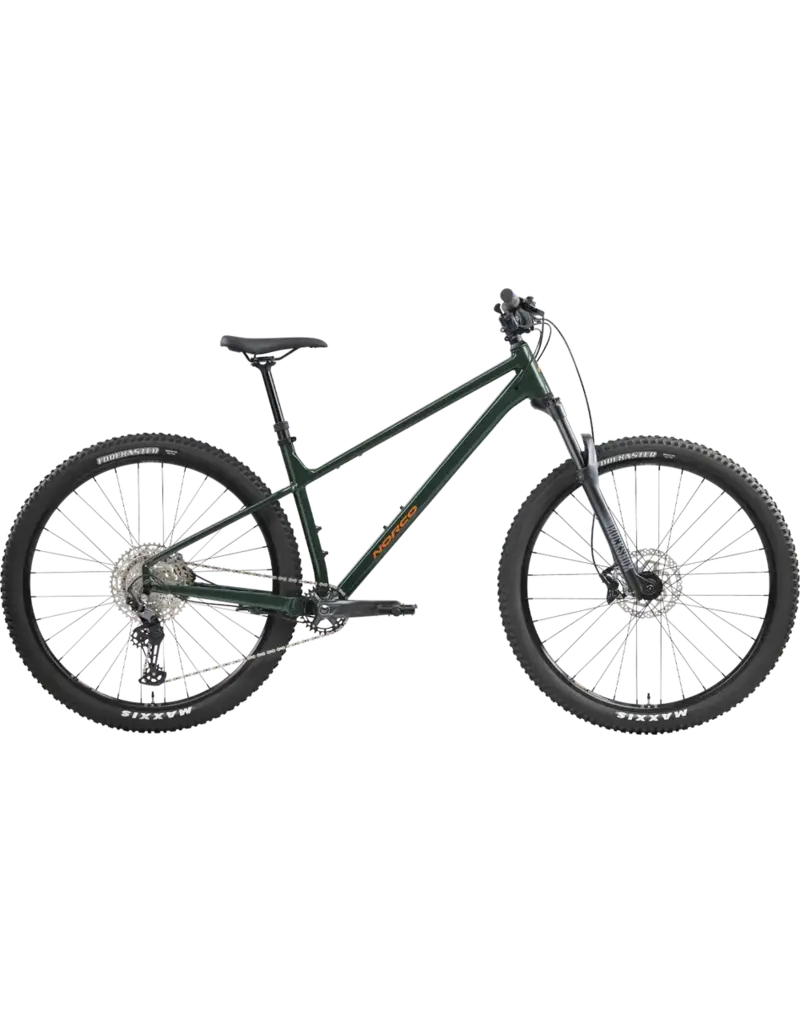

Climb mountains, ride trails, but most of all, just get out there and enjoy the outdoors.
An affordable option that packs a lot of punch.
A great entry level bike for anyone just getting
started on a mountain bike.
| Frame |
Aluminum, Smooth Welding, 12x148mm Boost, Tapered HT |
| Fork |
Rockshox Judy S TK Air, 130mm, 51mm offset, 15x110mm Boost |
| Rear Shifter |
Shimano Deore SL-M6100-R, 12sp |
| Rear Derailleur |
Shimano Deore RD-M6100, 12sp, SGS |
| Crankset |
Shimano Deore FC-MT512 2 pc, 30T, 170mm (S-M), 175mm (L - XXL) |
| Bottom Bracket |
Shimano BB-MT501, BSA 68/73mm |
| Cassette |
Shimano Deore CS-M6100, 10-51T, 12sp |
| Chain |
KMC 12spd |
| Front Brake |
Shimano Deore BD-MT410, Resin pads |
| Front Brake Rotor |
Shimano RT-26, 180mm, c-lock |
| Rear Brake |
Shimano Deore BD-MT410, Resin pads |
| Rear Brake Rotor |
Shimano RT-26, 160mm, c-lock |
| Brake Levers |
Shimano Deore BD-MT410 |
| Handlebar |
Norco Aluminum, 780mm, 30mm Rise |
| Stem |
Alloy 40mm Length, 31.8mm Clamp |
| Seatpost |
X-Fusion Manic LC, 31.6mm, 130mm (S), 150mm (M), 170mm (L/XL/XXL) |
| Headset |
Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Headset Spacer |
3x10mm |
| Saddle |
WTB Volt Sport, Med |
| Grips |
DDK lock-On, 139mm length |
| Pedals |
Nylon Flat Pedal |
| Seatpost Clamp |
Norco Alloy Bolted, 34.9mm ID |
| Front Hub |
Formula DC-511, 15x110mm, 32h, C-lock |
| Rear Hub |
Formula DC-3248,12x148mm Boost, HG, 32h, C-lock |
| Rims |
WTB ST TCS 2.0, 27mm ID, 32H |
| Front Tire |
Maxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire |
| Rear Tire |
Maxxis Forekaster, 29x2.4" (27.5X2.25"size S), Wire |
| Spokes/Nipples |
Stainless Steel, 14g |
| Weight |
13.54 kg (29.8 lbs) |
| Weight Size |
L |
