| Availability: |
Out of stock |

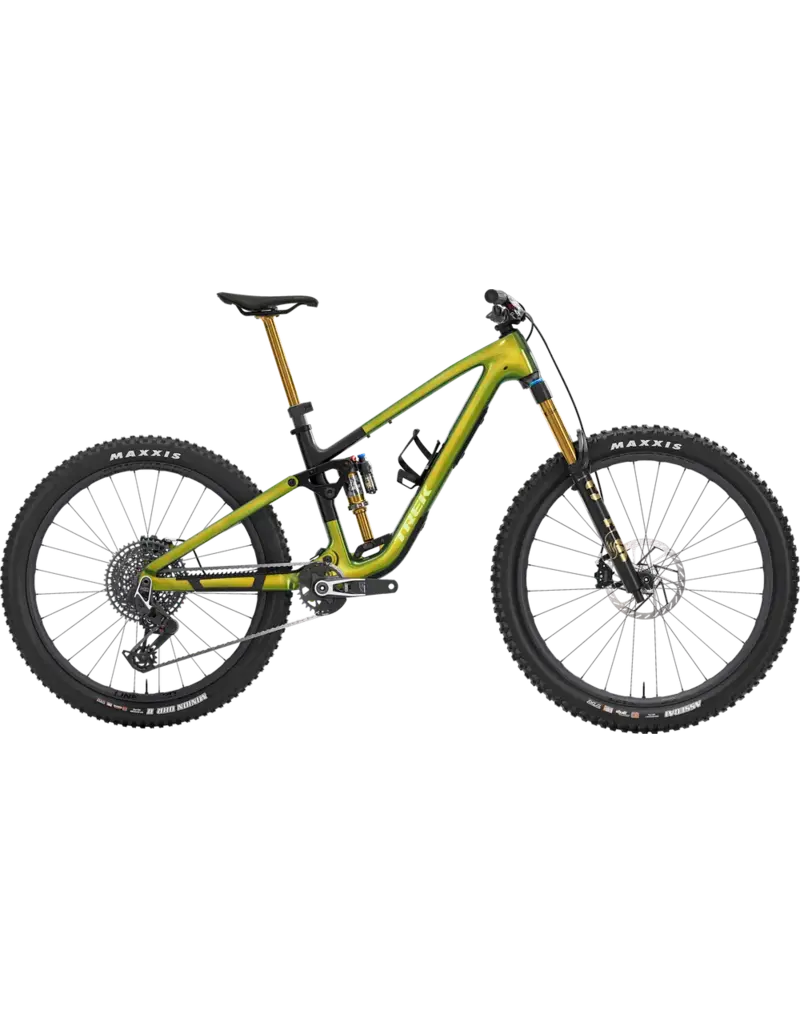

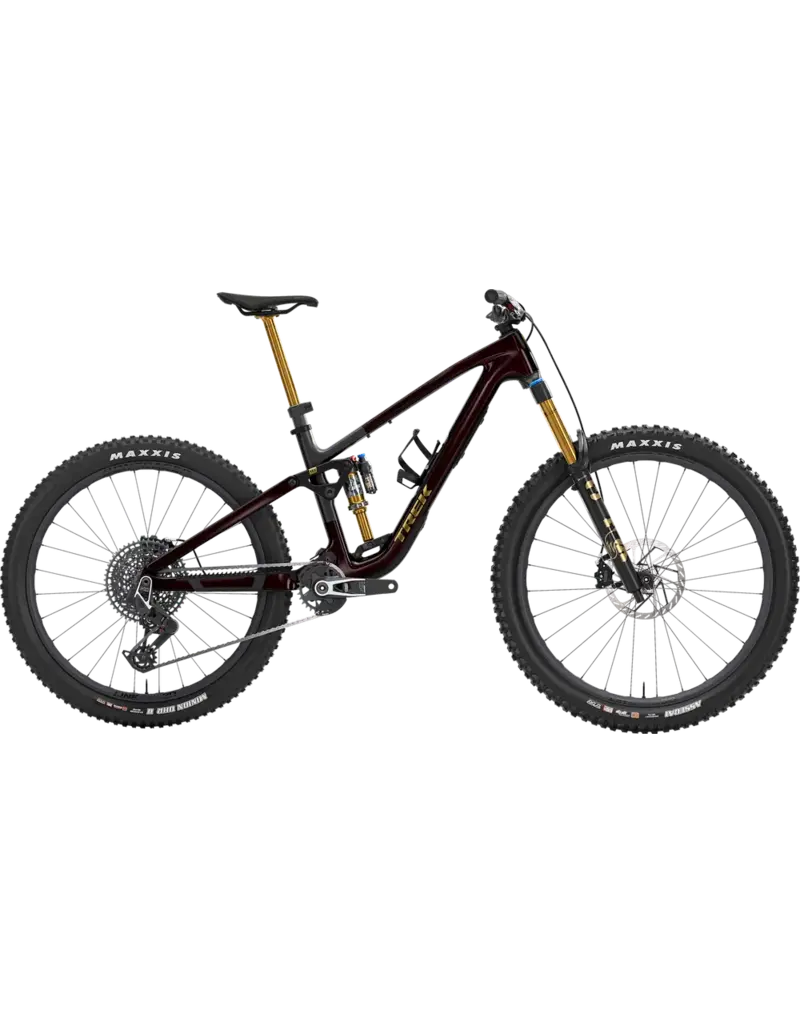

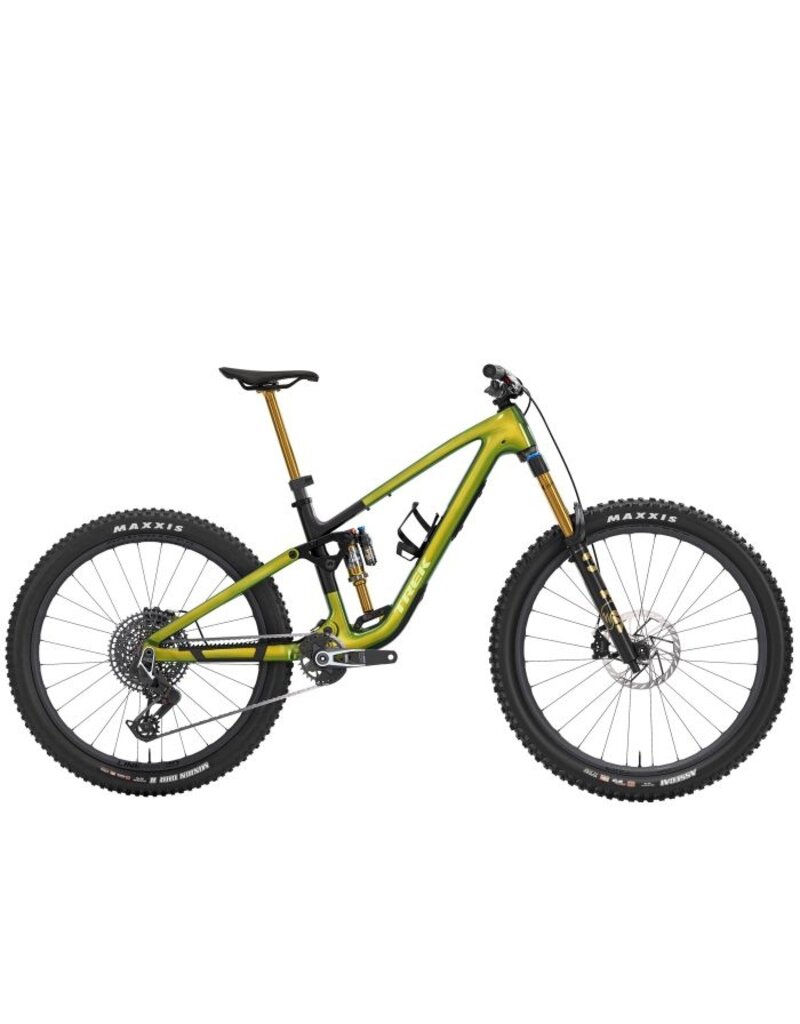

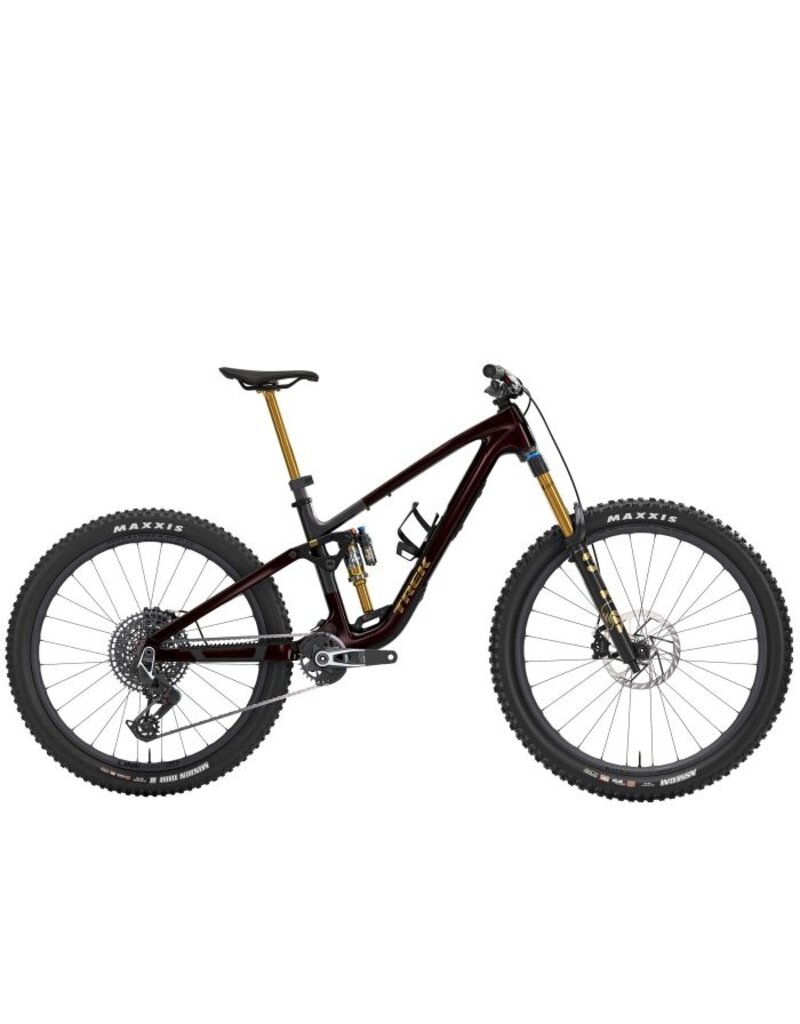

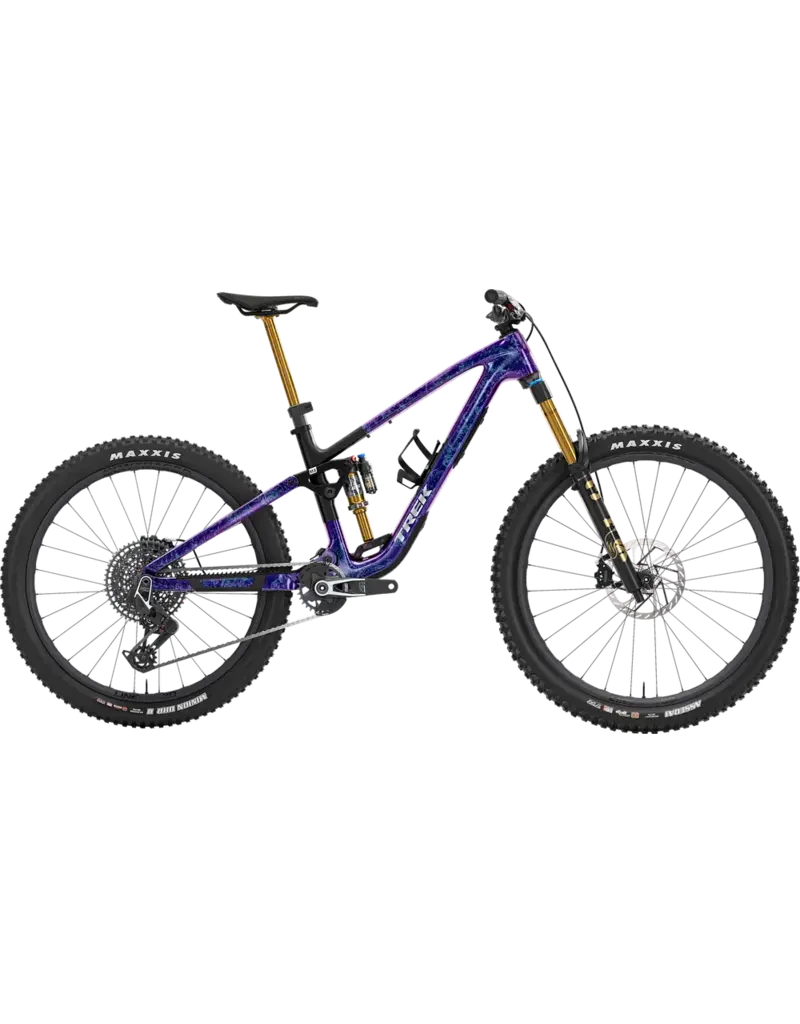

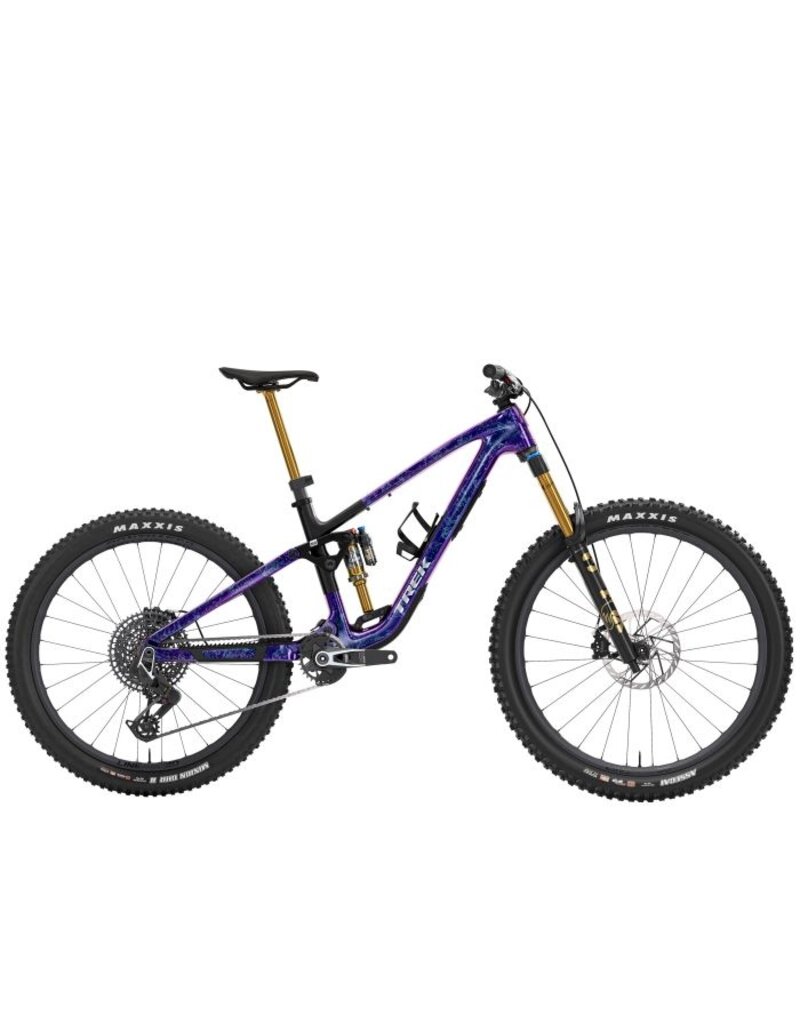

Fuel MX 9.9 X0 AXS is our top-tier chaos-craving carbon trail bike, built for chasing the wilder things in life. It starts off with an OCLV Mountain Carbon frame, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting wild on the trail. SRAM's wireless X0 AXS transmission delivers crystal-clear shifting, even under load, while 4-piston SRAM Maven Silver brakes give you the modulation and power you need. It's topped off with a Fox Transfer NEO dropper post and carbon Bontrager Line Pro 30 wheels.
- Frame
-
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
- Shock
-
Fox Factory Float X, 205mm x 60mm
- Wheel front
-
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
- Wheel rear
-
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Battery
-
SRAM AXS battery pack (with charger)
- Shifter
-
- Rear derailleur
-
SRAM X0 Eagle AXS, T-Type
- Crank
-
SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73mm, BSA threaded
- Cassette
-
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
- Chain
-
SRAM X0 Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
- *Seatpost
-
Size: S
Fox Transfer NEO, 150mm travel, wireless, 34.9mm
Size: M
Fox Transfer NEO, 175mm travel, wireless, 34.9mm
Size: L, XL, XXL
Fox Transfer NEO, 200mm travel, wireless, 34.9mm
- Handlebar
-
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
- Grips
-
- Stem
-
Race Face Turbine R, 35mm, 0 degree, 40mm length
- Brake
-
SRAM Maven Silver 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL, XXL
SRAM HS2, 6-bolt, 200mm
Size: S, M, L, XL, XXL
SRAM HS2, 6-bolt, 180mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 14.38 kg / 31.71 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
